RT / Duroid 5880LZ High Frequency Laminates Copper Clad Sheet For Pcb
RT / Duroid 5880LZ High Frequency Laminates Copper Clad Sheet For Pcb
Specifications
Brand Name :
Bicheng
Model Number :
BIC-332.V1.0
Certification :
UL, ISO9001, IATF16949
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD9.99-99.99
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
8-9 working days
Packaging Details :
Vacuum bags+Cartons
Part number :
Rogers RT/duroid 5880LZ
Laminate thickness :
0.010” (0.252mm) +/- 0.0007” 0.020” (0.508mm) +/- 0.0015” 0.050” (1.270mm) +/- 0.0015”
Laminate size :
12” X 18” (305mm X 457mm) 24” X 18” (610mm X 457mm)
Copper weight :
½ oz (18mm) HH/HH; 1 oz (35µm) H1/H1
Description

RT/duroid® 5880LZ laminates are engineered filled PTFE composites, purpose-built for precision stripline and microstrip circuit applications.

A unique filler system yields a low-density, lightweight material ideal for high-performance designs where weight is a critical factor.

These laminates offer a very low and stable dielectric constant, which is highly uniform across panels and remains consistent over a broad frequency range. Coupled with an exceptionally low dissipation factor, this electrical stability makes RT/duroid 5880LZ suitable for applications extending into Ku-band and beyond.

From a fabrication standpoint, RT/duroid 5880LZ laminates are easily cut, sheared, and machined. They exhibit strong chemical resistance, remaining unaffected by the solvents and reagents commonly used in printed circuit etching, plating, and hole preparation processes.

To ensure optimal performance, please specify the following when ordering:
-Dielectric thickness and tolerance
-Electrodeposited copper foil type
-Copper foil weight

Property Typical Value Direction Units Condition Test Method
Dielectric Constant Process 2.00 ± 0.04 Z - 10 GHz/23°C IPC-TM-650, [2.5.5.5](2.5.5.5)
Dielectric Constant Design 2.00 Z - 8 GHz - 40 GHz Differential Phase Length Method
Dissipation Factor <br>Typ<br>Max 0.0021<br>0.0027 Z - 10 GHz/23°C IPC-TM-650, [2.5.5.5](2.5.5.5)
Thermal Coefficient of Dielectric Constant +20 Z ppm/°C -50°C to 150°C, 10 GHz IPC-TM-650, [2.5.5.5](2.5.5.5)
Volume Resistivity 1.74X107 - Mohm•cm C-96/35/90 IPC-TM-650, [2.5.17.1](2.5.17.1)
Surface Resistivity 2.08X106 - Mohm C-96/35/90 IPC-TM-650, [2.5.17.1](2.5.17.1)
Electrical Strength 40 - kV D48/50 IPC-TM-650, 2.5.6
Dimensional Stability -0.38 X,Y % - IPC-TM-650, 2.4.39A
Moisture Absorption 0.31 - % 24 hours/23°C IPC-TM-650, [2.6.2.1](2.6.2.1)
Thermal Conductivity 0.33 Z W/m/°K 80°C ASTM C518
Coefficient of Thermal Expansion 54, 47<br>40 X,Y<br>Z ppm/°C 0 to 150°C IPC-TM-650, 2.4.41
Outgassing<br>TML<br>CVCM<br>WVR 0.01<br>0.01<br>0.01 - % - ASTM E-595
Density 1.4 - gm/cm³ - ASTM D792
Copper Peel Strength >4.0 - pli - IPC-TM-650, 2.4.8
Flammability V-0 - - - UL 94
Lead-Free Process Compatibility YES - - - -

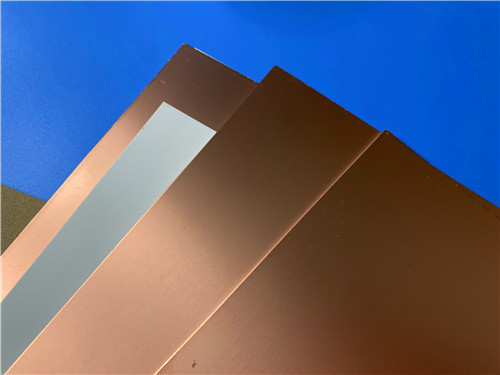

RT / Duroid 5880LZ High Frequency Laminates Copper Clad Sheet For Pcb

Features:
• Lowest dielectric constant available
• Low Z-axis CTE
• Lightweight / low density
• Uniform electrical properties over a wide frequency range


Some Typical Applications:
• Airborne antenna system
• Lightweight feed networks
• Military radar systems
• Missile guidance systems
• Point-to-point digital radio antennas
