Part number :
IsoClad 917
Laminate thickness :
0.787mm 1.575mm
Laminate size :
12"X18"(305X457mm); 24"X18"(610X457mm);
Copper weight :
0.5OZ（0.018mm）1OZ（0.035mm）
Description

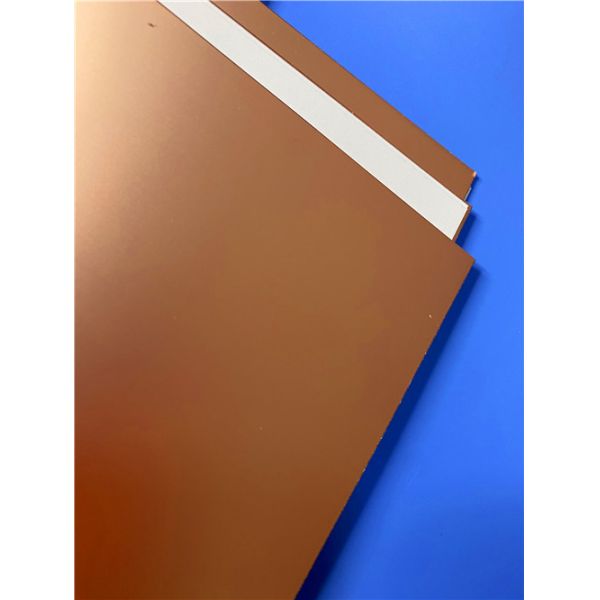

IsoClad 917 laminates are nonwoven fiberglass/PTFE composites engineered for printed circuit board substrates. Their nonwoven reinforcement makes them well-suited for applications where the final circuit needs to be formed or bent, such as in conformal or "wrap-around" antennas.

Using longer random fibers and a proprietary manufacturing process, IsoClad laminates deliver greater dimensional stability and superior dielectric constant uniformity compared to other nonwoven fiberglass/PTFE materials with similar dielectric properties.

IsoClad 917 laminates (Er=2.17, 2.20) feature a low fiberglass-to-PTFE ratio, offering the lowest available dielectric constant and dissipation factor achievable with a PTFE and fiberglass composite.

IsoClad 917 RF Copper Clad Laminate Sheet

Features:
-Nonwoven fiberglass reinforcement
-Low dielectric constant
-Extremely low signal loss

Benefits:
-More flexible than woven fiberglass laminates
-Highly isotropic electrical properties in X, Y, and Z axes

Typical Applications:
-Conformal antennas
-Stripline and microstrip circuits
-Missile guidance systems
-Radar and electronic warfare systems

Property IsoClad 917 Condition Test Method
Dielectric Constant @ 10 GHz 2.17, 2.20 C23/50 IPC TM-650 2.5.5.5
Dissipation Factor @ 10 GHz 0.0013 C23/50 IPC TM-650 2.5.5.5
Thermal Coefficient of Er (ppm/°C) -157 -10°C to +140°C IPC TM-650 2.5.5.5
Adapted
Peel Strength (lbs.per inch) 10 After Thermal IPC TM-650 2.4.8
Volume Resistivity (MΩ-cm) 1.5 x 1010 C96/35/90 IPC TM-650 2.5.17.1
Surface Resistivity (MΩ) 1.0 x 109 C96/35/90 IPC TM-650 2.5.17.1
Arc Resistance (seconds) >180 D48/50 ASTM D-495
Tensile Modulus (kpsi) 133, 120 A, 23°C ASTM D-638
Tensile Strength (kpsi) 4.3, 3.8 A, 23°C ASTM D-882
Compressive Modulus (kpsi) 182 A, 23°C ASTM D-695
Flexural Modulus (kpsi) 213 A, 23°C ASTM D-790
Dielectric Breakdown (kv) >45 D48/50 ASTM D-149
Density (g/cm3) 2.23 A, 23°C ASTM D-792 Method A
Water Absorption (%) 0.04 E1/105 + D24/23 MIL-S-13949H 3.7.7
IPC TM-650 2.6.2.2
Coefficient of Thermal 0°C to 100°C IPC TM-650 2.4.24
Expansion (ppm/°C) Mettler 3000
X Axis 46 Thermomechanical
Y Axis 47 Analyzer
Z Axis 236
Thermal Conductivity (W/mK) 0.263 100°C ASTM E-1225
Outgassing 125°C, ≤10-6 torr
Total Mass Loss (%) 0.02 Maximum 1.00%
Collected Volatile 0.00 Maximum 0.10%
Condensable Material (%)
Water Vapor Regain (%) 0.02
Visible Condensate (±) NO
Flammability Meets requirements of
UL94-V0		 C48/23/50, E24/125 UL 94 Vertical Burn IPC TM-650 2.3.10
