F4BME233 PCB Substrate Copper Clad Laminate Sheet
F4BME233 PCB Substrate Copper Clad Laminate Sheet
Specifications
Brand Name :
Bicheng
Model Number :
BIC-332.V1.0
Certification :
UL, ISO9001, IATF16949
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD9.99-99.99
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
8-9 working days
Packaging Details :
Vacuum bags+Cartons
Part number :
F4BME233
Laminate thickness :
0.1mm 0.127mm 0.2mm 0.25mm 0.5mm 0.508mm 0.762mm 0.8mm 1.0mm 1.5mm 1.524mm 1.575mm 2.0mm 2.5mm 3.0mm 4.0mm 5.0mm 6.0mm 8.0mm 10mm 12mmm
Laminate size :
460x610mm, 500X600mm, 850X1200mm, 914X1220mm, 1000X1200mm, 300X250mm, 350X380mm, 500X500mm, 840X840mm, 1000X1500mm
Copper weight :
0.5OZ(0.018MM), 1OZ（0.035mm);
Description

F4BME233 is a composite material produced via a carefully engineered formulation and precise manufacturing process, using fiberglass cloth, polytetrafluoroethylene (PTFE) resin, and PTFE film. Compared to standard F4B laminates, it exhibits improved electrical properties, including a broader dielectric constant range, lower dielectric loss, higher insulation resistance, and greater overall stability. This makes it a suitable alternative to similar international products.

This material is supplied with reverse-treated RTF copper foil, delivering excellent passive intermodulation (PIM) performance, superior etching control for precision circuitry, and reduced conductor loss.

The dielectric constant of F4BME233 is accurately controlled by adjusting the ratio of PTFE to fiberglass reinforcement. This balance ensures both low signal loss and enhanced dimensional stability. Higher dielectric constant variants incorporate a greater fiberglass content, resulting in improved dimensional stability, lower thermal expansion, better temperature-dependent performance, and a corresponding increase in dielectric loss.

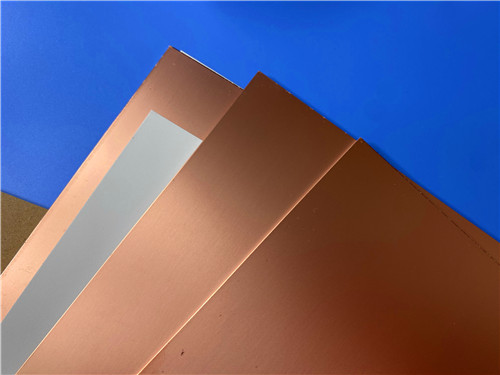

F4BME233 PCB Substrate Copper Clad Laminate Sheet

Product Features

  • Dielectric constant (Dk) range: 2.33
  • Low loss performance
  • Excellent PIM characteristics with RTF foil
  • Multiple size options for material optimization and cost savings
  • Resistant to radiation with low outgassing properties
  • Commercially available in volume at a competitive price

Typical Applications

  • Microwave, radio frequency, and radar systems
  • Phase shifters and passive components
  • Power dividers, couplers, and combiners
  • Feed networks and phased array antennas
  • Satellite communications and base station antennas

Product Technical Parameters Product Model & Data Sheet
Product Features Test Conditions Unit F4BME233
Dielectric Constant (Typical) 10GHz / 2.33
Dielectric Constant Tolerance / / ±0.04
Loss Tangent (Typical) 10GHz / 0.0011
20GHz / 0.0015
Dielectric Constant Temperature Coefficient -55ºC～150ºC PPM/℃ -130
Peel Strength 1 OZ F4BM N/mm >1.8
1 OZ F4BME N/mm >1.6
Volume Resistivity Standard Condition MΩ.cm ≥6×10^6
Surface Resistivity Standard Condition MΩ ≥1×10^6
Electrical Strength (Z direction) 5KW,500V/s KV/mm >23
Breakdown Voltage (XY direction) 5KW,500V/s KV >32
Coefficientof Thermal Expansion XY direction -55 º~288ºC ppm/ºC 22, 30
Z direction -55 º~288ºC ppm/ºC 205
Thermal Stress 260℃, 10s,3 times No delamination
Water Absorption 20±2℃, 24 hours % ≤0.08
Density Room Temperature g/cm3 2.20
Long-Term Operating Temperature High-Low Temperature Chamber ℃ -55～+260
Thermal Conductivity Z direction W/(M.K) 0.28
PIM Only applicable to F4BME dBc ≤-159
Flammability / UL-94 V-0
Material Composition / / PTFE, Fiberglass Cloth
F4BM paired with ED copper foil, F4BME paired with reverse-treated (RTF) copper foil.
