Specifications
Brand Name :
Rohde and Schwarz
Model Number :
NRX
Certification :
FCC
Place of Origin :
Germany
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
carton
Product Name :
Power Meter
Form Factor :
Plug-In
Weight :
2.58 KG
Dimensions :
234 mm × 106 mm × 272 mm
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description

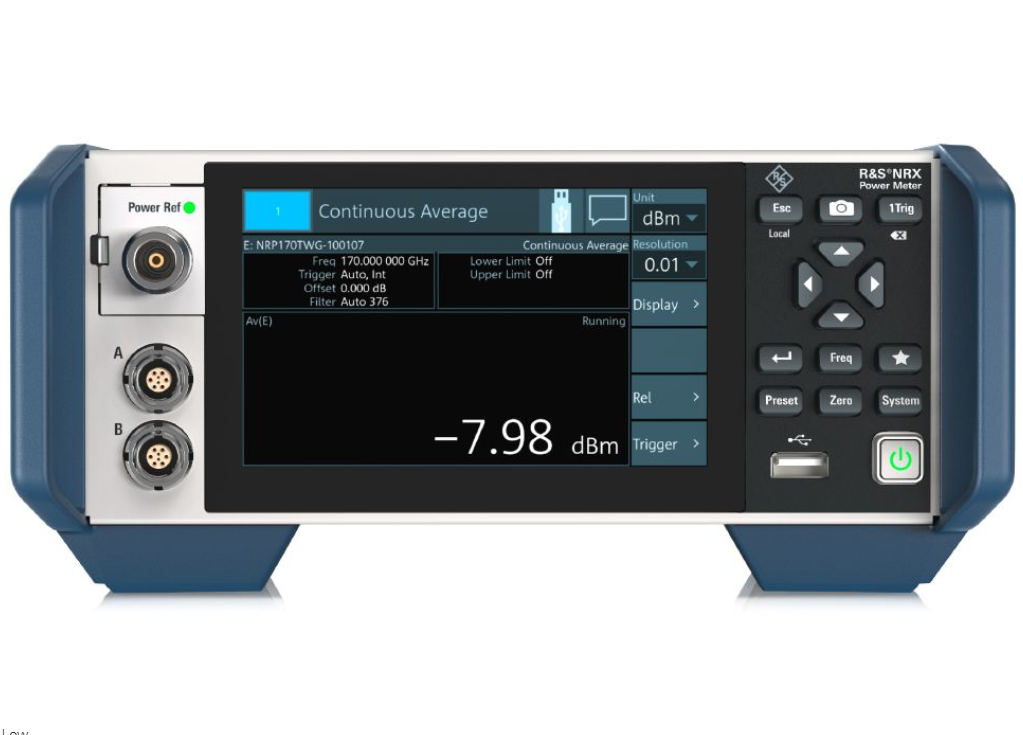

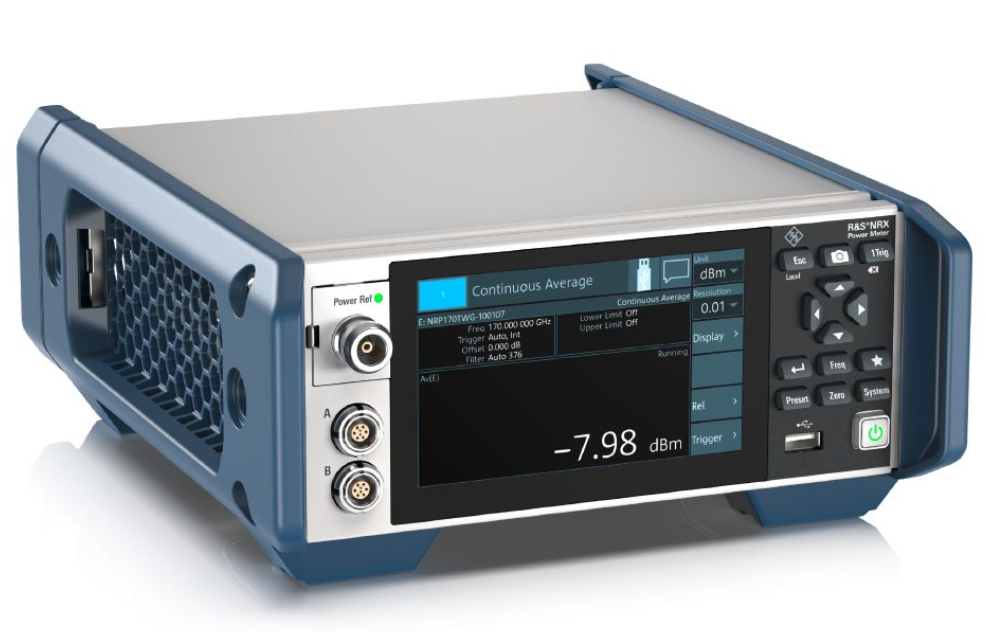

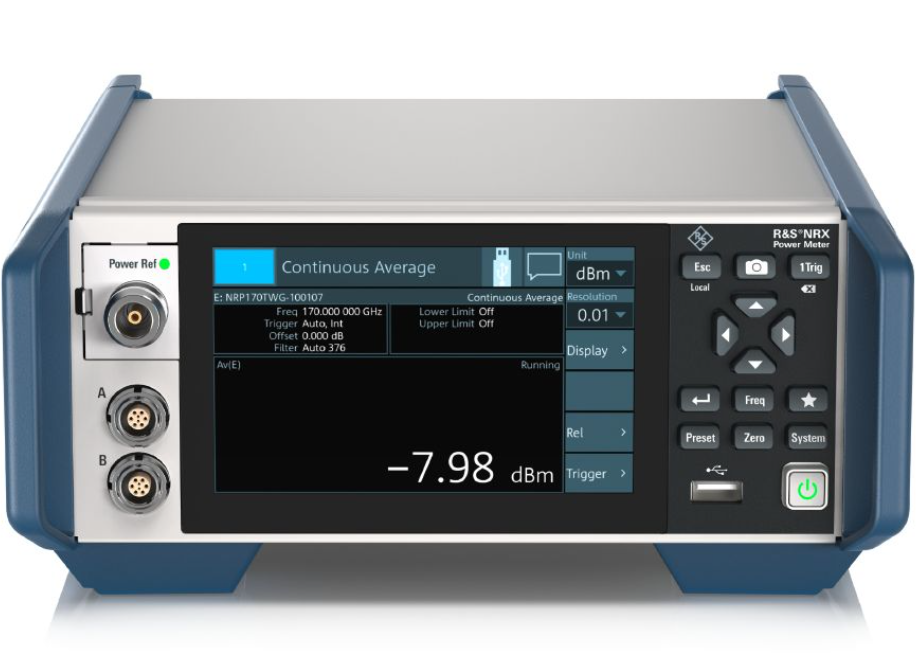

Rohde & Schwarz NRX Power Meter Plug In Multipurpose Practical
Product Overview

The R&S®NRX simultaneously supports up to four R&S power sensors and displays results clearly on the flexible configurable screen. The user interface with touch screen based operating concept simplifies operation, while function keys on the front panel provide quick access to the most important functions.

Key Features
  • Intuitive operation with touch screen based GUI
  • Supports up to four R&S®NRP and R&S®NRQ6 power sensors
  • Supports all sensor-dependent measurement functions
  • Optional high-precision CW and pulse mode reference source module
  • Optional power reflection measurements with NRT-Zxx sensors
Advanced Power Meter Generation

The NRX simultaneously supports up to four R&S power sensors (when adding options NRX-B4, NRX-K2 and NRX-K4) and displays results clearly on the flexible configurable screen. The modern user interface with touch screen operation simplifies workflow, complemented by front panel function keys for quick access to essential functions.

NRX Capabilities
  • Easy RF power measurements
  • Multi-channel measurements
  • RF pulse analysis
  • System integration
Available Options
Option Code Description
NRX-B1 Sensor check source 50 MHz and 1GHz ref. source
NRX-B4 3rd and 4th NRP Sensor Connection (C,D,) 8-pole
NRX-B8 GPIB/IEEE488 Interface
NRX-K2 2nd measurement channel
Technical Appendix: Uncertainty of Multipath Power Sensors

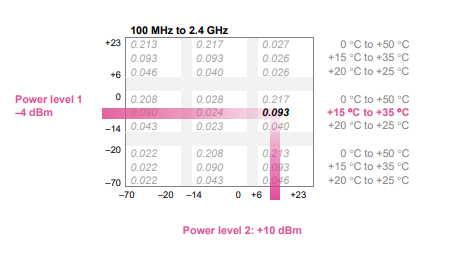

The example shows a level step of approx. 14 dB (-4 dBm → +10 dBm) at 1.9 GHz and an ambient temperature of +28 °C for an R&S®NRP8S power sensor. The expanded uncertainty for relative power measurements in this example is 0.093 dB.
