Anritsu MS2721A Fully-functional Handheld Spectrum Analyzer with 100 kHz to 7.1 GHz Frequency Range
Anritsu MS2721A Fully-functional Handheld Spectrum Analyzer with 100 kHz to 7.1 GHz Frequency Range
Specifications
Brand Name :
Anritsu
Model Number :
MS2721A
Certification :
ISO17025
Place of Origin :
Japan
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
RF Power Meter
Frequency Range: :
100 kHz to 7.1 GHz
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description

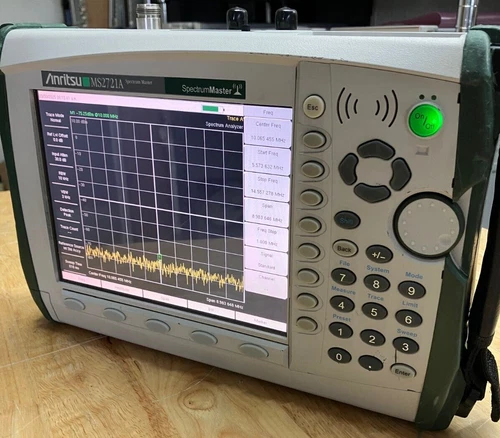

Anritsu MS2721A Fully-functional Handheld Spectrum Analyzer 100 KHz To 7.1 GHz
Product Overview

The MS2721A is the first fully-functional handheld spectrum analyzer designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, WiMAX, and wireless medical patient monitoring systems. This portable spectrum analyzer offers unprecedented measurement capability for applications up to 7.1 GHz, weighing less than 7 pounds for both bench and field use.

Key Features
  • Handheld, battery-operated design
  • Large daylight viewable transflective color display
  • Built-in pre-amplifier (standard)
  • Lightweight at only 6.9 lbs (typical)
  • Best in class Displayed Average Noise Level < -153 dBm typical
  • Quick Zoom-in, Zoom-out display in 1-2-5 sequence
  • RBWs: 10 Hz to 3 MHz in 1-3 sequence
  • VBWs: 1 Hz to 3 MHz in 1-3 sequence
  • Amplitude Accuracy +/- 0.5 dB typical
  • Multilingual User Interface (8 languages supported)
  • Store over 1000 test set-ups and measurement traces internally
  • AM, FM and SSB demodulation with built-in speaker and headset jack
Technical Specifications
Form Factor Benchtop, Handheld, Portable
Average Noise Level -153 dBm
Frequency Range 100 KHz - 7.1 GHz
Phase Noise -100 dBc/Hz @ 10 kHz offsets
Interfaces RJ45 Ethernet 10/100 Base T and USB 2.0
Available Options
Option Code Description
20 Tracking Generator
25 Interference Analysis - spectrogram display, signal strength with audible tone and RSSI
27 Channel Scanner - monitor up to 20 channels (great for interference mitigation)
31 GPS Receiver
2000-1374 Dual battery charger, Li-Ion with universal power supply
760-235 Transit case for Anritsu MS2721A Handheld Spectrum Analyzer
Our Service Commitment
  • One-stop service from manufacture to shipping
  • 24-hour response to all inquiries
  • Well-trained English-speaking support staff
  • Distributor support for custom designs
  • Complete protection of your private information and sales area
Frequently Asked Questions
  • Can you ship worldwide? Yes, we ship orders worldwide including Canada and Australia.
  • What delivery methods do you use? We ship via EMS, DHL, FedEx, UPS, TNT with tracking numbers. Delivery time is typically 4-7 business days.
  • What is your payment term? 100% T/T payment before shipment.
  • How can I ask additional questions? Contact us online or leave messages for prompt assistance.
