Specifications
Brand Name :
Boonton
Model Number :
7200
Certification :
ISO:17025 Accredited Calibration
Place of Origin :
USA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Name :
Capacitance Meter
Material :
Metal and plastic
Capacitance range :
0 to 2000 pF
Conductance range :
0 to 2000 µS
Description
DLTS Measurements with Boonton Model 7200 Capacitance Meter

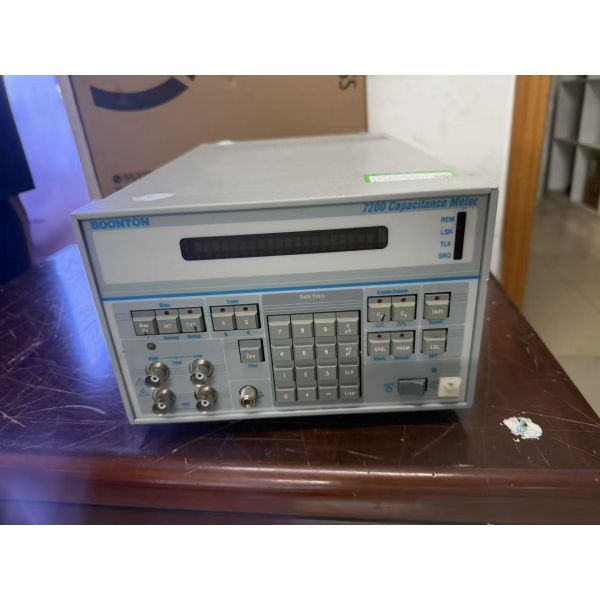

The Boonton Model 7200 Capacitance Meter is engineered for demanding research and development applications as well as manufacturing environments. This sophisticated instrument utilizes two phase-sensitive detectors to extract and display both parallel capacitance and conductance of devices under test.

Product Overview

From measured parameters, the Model 7200 calculates and displays equivalent parallel and series resistance, series capacitance, dissipation factor, and quality factor Q. Capacitance can also be displayed as a deviation from selectable reference standards in percentage or pF units. The instrument employs software filter technology that averages consecutive measurements to achieve stable display values.

Key Features
  • Capacitance range: 0 to 2000 pF
  • Conductance range: 0 to 2000 µS
  • Test frequency: 1 MHz crystal-controlled
  • Test level: selectable 15, 30, 50, and 100 mV
  • External bias: ±60 V
  • Standard programmable internal bias: ±60 V
  • Analog outputs proportional to both C and G and bias
  • GPIB standard interface
Technical Specifications
Capacitance Range 0 to 2000 pF
Full Scale Ranges 2, 20, 200, 2000 pF
Accuracy 0.25% of reading + 0.2% of full scale + 0.005 pF
Resolution 0.001 pF from 0 to 2 pF
0.01 pF from 2 to 20 pF
0.1 pF from 20 to 200 pF
1 pF above 200 pF
