Product Description:

The SSMA RF Connector is a high-performance, precision-engineered component designed to meet the demanding requirements of modern RF applications. This connector is ideal for use in environments where reliable signal transmission and durability are paramount. It combines robust construction with excellent electrical characteristics.

This makes it suitable for a variety of applications, including telecommunications, aerospace, instrumentation, and RF systems where safety and performance are critical.

The SSMA Through Hole PCB Mount Connector variant offers a reliable and robust solution. Through-hole mounting provides a strong mechanical bond, which is particularly beneficial in applications subject to vibration or mechanical stress. This type of mounting ensures the connector remains securely attached to the board, maintaining stable electrical connections over time.

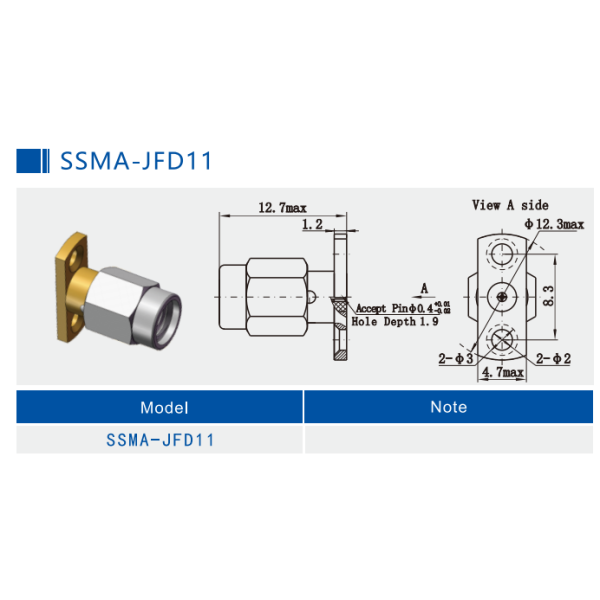

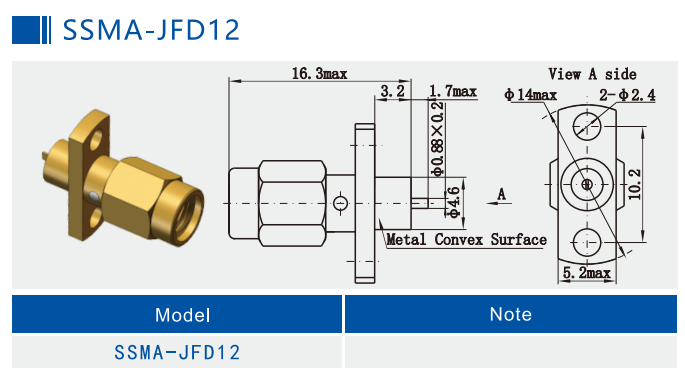

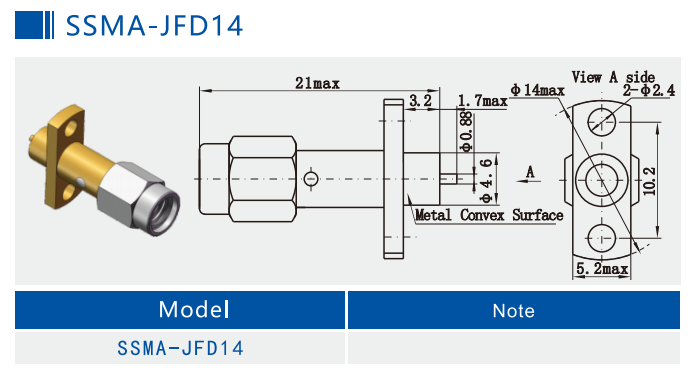

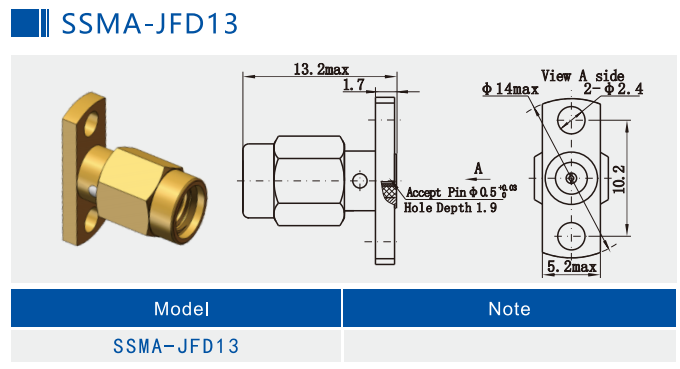

Additionally, the SSMA RF Flange Mount Connector option is available for applications requiring panel or chassis mounting. The flange mount design provides a secure and stable installation method, making it suitable for use in equipment enclosures, racks, and other fixed installations. This mounting style facilitates easy installation and removal, aiding in maintenance and system upgrades without compromising connection quality.

Despite its smaller size, it maintains the robust electrical and mechanical properties expected from SSMA connectors, making it an excellent choice for modern miniaturized RF systems.

Features:

• Product Name: SSMA RF Connector
• Voltage Withstand (Dwv): 500V
• Gender: Male/Female
• Screw Type: 10-36UNS-2
• Impedance: 50 ohm
• Includes SSMA Through hole PCB mount connector, Flange mount connector, mating cable connectors

• Applications: Aviation, Navigation, Satcom, Radar, Communications, Microwave Systems

Technical Parameters:

Applications:

This connector is particularly suitable for applications in aviation, navigation, satellite communications (Satcom), radar, microwave systems, and advanced communication infrastructures.

Customization:

We provide Mini SMA Straight connector customization according to your drawing. Pricing depends on the quantity ordered, making it flexible for various project sizes.

Customization MOQ : 200pcs for each model

Support and Services:

Our SSMA RF Connector product is designed to provide reliable and high-performance connections for RF applications. For technical support, We offer comprehensive services including product customization, testing, and quality assurance to meet your specific project requirements.

Our commitment is to deliver exceptional service and technical assistance to help you achieve seamless connectivity in your RF systems.

Packing & Shipping:

Product Packaging & Shipping for SSMA RF Connector

Each SSMA RF Connector is carefully packaged to ensure maximum protection during transit. The connectors are individually sealed in anti-static bags to prevent any damage from electrostatic discharge. Multiple connectors are then placed in sturdy, cushioned boxes designed to absorb shocks and vibrations.

According to the structure of SSMA, we will choose the suitable package for transporation. We offer various shipping options including standard, expedited, and express delivery. Tracking information will be provided once the shipment is dispatched.

FAQ:

Q1: Are you trading company or manufacturer ?
A: We are manufacturer with over 23+ years experience on RF/Microwave Interconnect Components .

Q2: What products can you provide currently?
A: RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components.

Q3: Is free sample available?
A: Yes, if have stock, free sample is available with freight collected.

Q4: Can your company accept customize?
A: ODM is welcomed. With more than 23+ years experience in ODM, Elite Electronics can assist in design, product development, research & development and integration of your interconnect products.

Q5: What are the Payment Terms ?
A: We can accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T), etc.

Q6: What is the lead time?
A: 5 days for sample orders, 3-4 weeks for mass production orders (based on different quantities, ODM , etc.)

Q7: How will you deliver goods to me?
A: Generally, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly but with the lowest freight. Meanwhile, ship by air and by sea is also available.

Q8: How long do I need to wait before my goods arrive?
A: 5-8 workdays for air transportation, 3-8 workdays for international express.

Q9: How is your product quality?
A: As the high-quality suppliers of many national high-tech projects, providing excellent products is our way of development. We have a strong quality control team and very strict process to guarantee our quality according to different quality grade standard.

Q10: What is your warranty?
A: Our warranty is 3 months after delivery, Elite Electronic pays high attention to after-sales service.
