50Ω Right Angle SSMA Male Mini SMA Plug RF Coaxial .086 Cable Connector 18GHz
50Ω Right Angle SSMA Male Mini SMA Plug RF Coaxial .086 Cable Connector 18GHz
Specifications
Brand Name :
ELT
Model Number :
SSMA-JWB2
Certification :
RoHS
Place of Origin :
Xi'an, China
MOQ :
In Stock, MOQ 50 for new production
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-7 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
Right Angle SSMA Male Cable Connector
Model :
SSMA-JWB2
Frequency Range :
0.3MHz-18GHz
Impedance :
50Ω
DWV :
750V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Stainless Steel，Passivation
Mating Cable :
.086 Cable
Insulators :
PTFE
Samples :
In stock
Description
50Ω Right Angle SSMA Male Mini SMA Plug RF Coaxial .086 Cable Connector 18GHz
SSMA connectors are 50 ohm precision connectors designed to perform mode free to 40GHz. They commonly used for applications where reduced sized and higher package density are required. The standard SSMA interface utilizes a PTFE dielectric. Elite Electronic offers SSMA connectors for semi-rigid, semi-flexible and low loss flexible cable, flange mount, bulkhead screw mount, PCB mount and precision adapters which may be adapted for custom application.
The SSMA RF coax connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.

SSMA Design Features
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • Rugged construction for reliability
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Low VSWR & Insertion loss
Interface of SSMA RF Coaxial Connectors
Interface of SSMA RF Coaxial Connectors
50Ω Right Angle SSMA Male Mini SMA Plug RF Coaxial .086 Cable Connector 18GHz

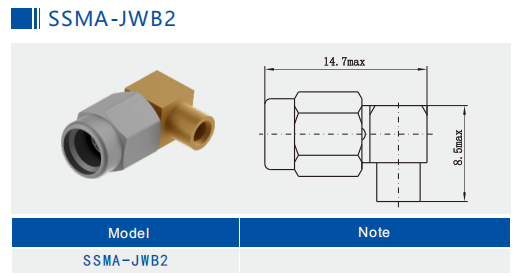

Right Angle SSMA Male RF Coaxial .086 Cable Connector Dimenstion:
Model No.: SSMA-JWB2
50Ω Right Angle SSMA Male Mini SMA Plug RF Coaxial .086 Cable Connector 18GHz

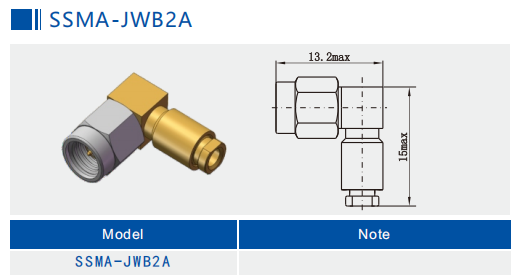

Similar Model RA SSMA Male RF Coaxial .086 Cable Connector Dimenstion:
Model No.: SSMA-JWB2A
50Ω Right Angle SSMA Male Mini SMA Plug RF Coaxial .086 Cable Connector 18GHz
50Ω Right Angle SSMA Male Mini SMA Plug RF Coaxial .086 Cable Connector 18GHz

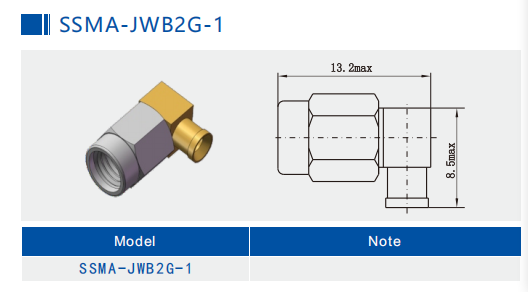

Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
50Ω Right Angle SSMA Male Mini SMA Plug RF Coaxial .086 Cable Connector 18GHz
Packaging & Shipping
Each SSMA Right Angle RF Coaxial Connector is carefully packaged to ensure protection during transportation:
50Ω Right Angle SSMA Male Mini SMA Plug RF Coaxial .086 Cable Connector 18GHz
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
