50Ω SSMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz
50Ω SSMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz
Specifications
Brand Name :
ELT
Model Number :
SSMA-KFB2
Certification :
RoHS
Place of Origin :
Xi'an, China
MOQ :
In Stock, MOQ 50 for new production
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-7 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
SSMA 2 Hole Flange Mount Female Cable Connector
Model :
SSMA-KFB2
Frequency Range :
0.3MHz-18GHz
Impedance :
50Ω
DWV :
750V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Copper Alloy, Gold Plated
Mating Cable :
.086 Cable
Insulators :
PTFE
Samples :
In stock
Description
50Ω SSMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz
SSMA RF Coaxial connectors are precision 50 ohm connectors designed to operate mode-free up to 30GHz. They are commonly used in applications requiring reduced size and higher package density. The standard SSMA interface uses a PTFE dielectric. Elite Electronic offers SSMA connectors for semi-rigid, semi-flexible, and low-loss flexible cables, as well as flange mount, bulkhead screw mount, PCB mount, and precision adapters that can be customized for specific applications.

The SSMA RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance. Featuring a threaded interface (10-36UNF-2) and a 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
SSMA Design Features
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • Rugged construction for reliability
  • Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
  • Low VSWR & Insertion loss


Interface of SSMA RF Coaxial Connectors
Interface of SSMA RF Coaxial Connectors
50Ω SSMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz

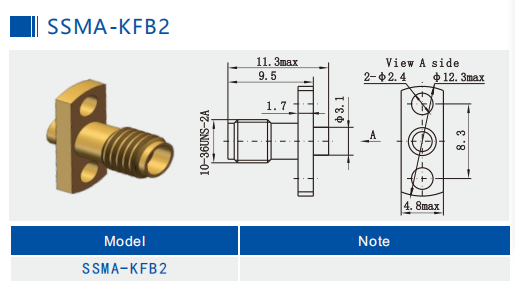

2 Hole Flange Mount SSMA Male RF Coaxial .086 Cable Connector Dimenstion:
Model No.: SSMA-KFB2
50Ω SSMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz

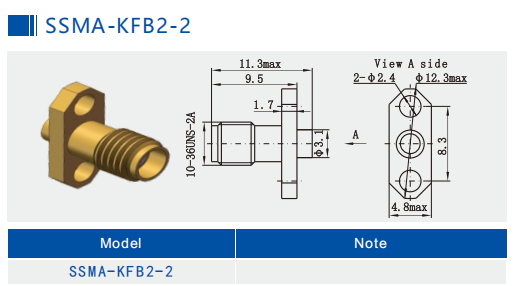

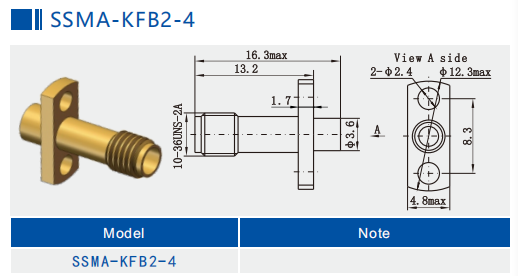

Similar Models SSMA 2 Hole Flange Mount for .086 Cable
50Ω SSMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz

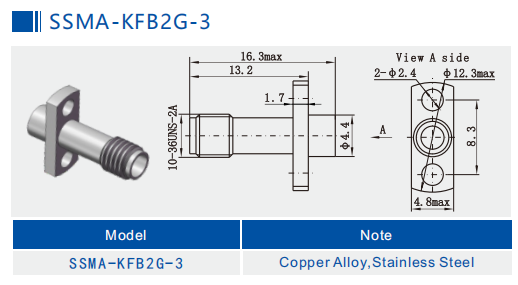

Similar Models SSMA 2 Hole Flange Mount Stainless Steel Housting for .086 Cable
50Ω SSMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz
50Ω SSMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
50Ω SSMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz
Packaging & Shipping
Each SSMA 2 hole flange mount .086 cable RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
50Ω SSMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz
For additional similar product models information, please check our catalog or contact our sales team at:
