Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2
Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2
Specifications
Brand Name :
ELT
Model Number :
SSMA-KWFD2
Certification :
ISO9001, IS014001
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
The more quantity, the cheaper the price will be
Payment Terms :
T/T,L/C,D/P
Supply Ability :
As requirements
Delivery Time :
5-10 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
SSMA Female Microstrip Connector
Model :
SSMA-KWFD2
Frequency Range :
0.3MHz-18GHz
Impedance :
50Ω
Rated Voltage :
250v
DWV :
750V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Copper Alloy, Gold Plated
Mount Method :
4 Hole Flange Mount
Screw :
10-36UNS-2
Insulators :
PTFE
Samples :
In Stock, Available
Description
2 Hole Flange Mount Right Angle SSMA / Mini SMA RF Coax Microstrip Connector Up to 18GHz
Product Specifications
Items Value
Product Name RA SSMA Female Microstrip Connector
Model SSMA-KWFD2
Frequency Range 0.3MHz-18GHz
Impedance 50Ω
Rated Voltage 250v
DWV 750V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Mount Method 2 Hole Flange Mount
Insulators PTFE
Samples In Stock, Available
Product Overview
The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
  • Compact size with wide frequency bandwidth
  • Superior mechanical and electrical performance
  • High reliability in demanding applications
  • Threaded connection (10-36UNF-2)
  • Characteristic impedance of 50Ω
  • Frequency operation up to 30GHz
Interface Dimensions

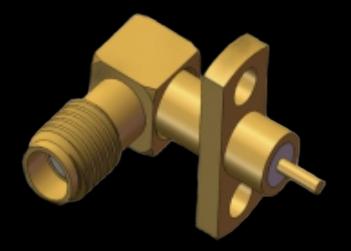

Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2
SSMA Right Angle 2 Hole Flange Mount Microstrip Connectors Dimensions
Outline dimensions for the SSMA-KWFD2 model (Unit: mm).
Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2
Other Right Angle SSMA Microstrip Connectors Models:

Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2

Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2

Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2

Applications
Ideal for high-precision microwave signal transmission in:
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2
Packaging & Shipping
Packaging: Each ssma right angle connector is carefully packaged in protective cartons to ensure safe transit. Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2 Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar flange mount right angle connector models, please check our catalog. While some models are in stock, all can be produced quickly to meet customer requirements.
