Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
Specifications
Brand Name :
ELT
Model Number :
SSMA-KFD160
Certification :
RoHS
Place of Origin :
Xi'an, China
MOQ :
In Stock, MOQ 50 for new production
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-7 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
SSMA RF Connector
Model :
SSMA-KFD160
Frequency Range :
0.3MHz-18GHz
Impedance :
50Ω
DWV :
750V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Brass Gold finish
Outer Conductor :
Brass Gold finish
Mating Cable :
CXN3506 Cable
Insulators :
PTFE
Samples :
In stock
Description
Brass Shell Gold Plating Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
Product Introduction
The SSMA RF connector (other name Mini SMA) is a compact iteration of the standard SMA, offering a 30% size reduction without compromising performance. Engineered with a 10-36UNF-2
threaded interface and 50Ω impedance, it ensures reliable connectivity in space-constrained applications. Supporting frequencies up to 30GHz, the SSMA series delivers excellent
electrical performance, making it the ideal solution for high-density microwave and RF systems requiring miniaturization.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Connectors
Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm

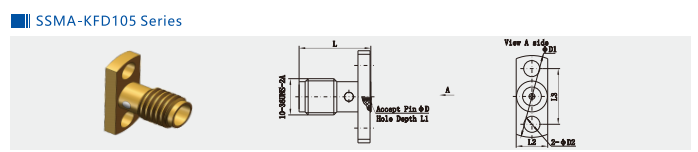

Mini SMA Jack RF Coaxial 2-Hole Flange Mount Connector Dimenstion:
Model No.: SSMA-KFD160
Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
Model L L1 L2 L3 D D1 D2 Note
SSMA-KFD105 9.7max

1.9

 4.8max 8.6 0.5 12.3max 2.6
SSMA-KFD105G 9.7max 1.9 4.8max 8.6 0.5 12.3max 2.6 Stainless Steel Shell
SSMA-KFD108G 9.7max 1.9 4.8max 8.3 0.4 12.3max 2.4 Stainless Steel Shell
SSMA-KFD109 9.7max 2 4.8max 8.6 0.32 12.3max 2.4
SSMA-KFD111G 9.7max 2 4.8max 8.3 0.32 12.3max 2.4 Stainless Steel Shell
SSMA-KFD112 16.7max 1.9 5.1max 8.3 0.4 12.3max 2.4
SSMA-KFD129G 9.7max 1.9 4.8max 10.2 0.4 14.1max 2.6 Stainless Steel Shell
SSMA-KFD131 9.7max 1.9 4.8max 8.3 0.4 12.3max 2.4
SSMA-KFD131-Y1 9.7max 1.9 4.8max 8.3 0.4 12.3max 2.4
SSMA-KFD141G 13.4max 1.9 4.8max 8.3 0.45 12.3max 2.4 Stainless Steel Shell
SSMA-KFD157G 9.7max 1.9 4.8max 8.6 0.4 12.3max 2.4 Stainless Steel Shell
SSMA-KFD159 14.4max 2.1mm 4.8max 8.3 0.5 12.3max 2.2
SSMA-KFD160 9.7max 2 4.8max 10.2 0.45 14max 2.2
SSMA-KFD161 9.7max 2 4.8max 8.3 0.45 12.3max 2.2
SSMA-KFD162 9.7max 2 4.8max 11 0.45 14.9max 2.2
SSMA-KFD171G 9.7max 1.9 5.8max 9 0.4 12.8max 2.2 Stainless Steel Shell
SSMA-KFD213 9.7max 2.1 4.8max 8.3 0.38 12.3max 2.4
SSMA-KFD221 9.7max 1.7 4.9max 8.6 0.4 12.8max 2.6
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
Brass Gold finish Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
