Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
Specifications
Brand Name :
ELT
Model Number :
SSMA-KWHD41
Certification :
RoHS
Place of Origin :
Xi'an, China
MOQ :
In Stock, MOQ 50 for new production
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-7 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
SSMA RF Connector
Model :
SSMA-KWHD41
Frequency Range :
0.3MHz-18GHz
Impedance :
50Ω
DWV :
750V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Gold-coated brass
Outer Conductor :
Gold-coated brass
Mating Cable :
CXN3506 Cable
Insulators :
PTFE
Samples :
In stock
Description
Brass Shell Gold Plating Jack Mini SMA Panel Mount SSMA RF Connectors 18GHz 50ohm
Product Introduction
The SSMA RF connector (Mini SMA) is a compact solution, 30% smaller than standard SMA connectors, ideal for high-density microwave and RF systems. Designed with a 10-36UNF-2 threaded interface and 50Ω impedance, it ensures reliable performance in space-constrained applications. SSMA RF connectors deliver excellent electrical performance and high reliability for demanding environments. Available in straight, right angle, bulkhead, and flange mount configurations. Perfect for miniaturization needs.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Connectors
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
RA Mini SMA Jack RF Coaxial Through Hole PCB Soldering Mount Connector:
Technical Materials & Finish
Impedance 50Ω Center Conductor Copper Alloy, Gold Plating
DWV 500V Outer Conductor Copper Alloy, Gold Plating
Insulation Resistance >5000MΩ Insulation Dielectric PTFE
Temperature Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃
Other Index Frequency Range: 0.3MHz~18GHz

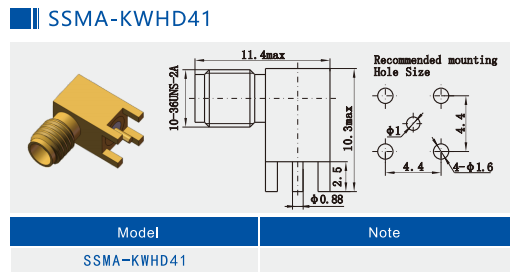

Dimension of Model No.: SSMA-KWHD41
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm

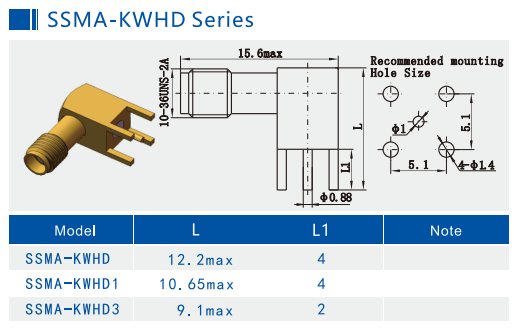

Dimension of Model No.: SSMA-KWHD
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm

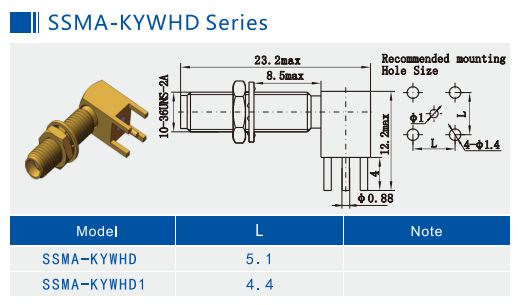

Dimension of Bulkhead RA Model: SSMA-KYWHD

Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm


Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
Packaging and Shipping
Each SSMA RF Connector is carefully packaged to ensure protection during transportation:
Gold-coated brass Jack Mini SMA Through Hole PCB Solder 90-degree Angle SSMA RF Connectors 18GHz 50ohm
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
Send your message to this supplier
