Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω
Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω
Specifications
Brand Name :
ELT
Model Number :
SSMA-KWFD8
Certification :
RoHS
Place of Origin :
Xi'an, China
MOQ :
In Stock, MOQ 50 for new production
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-7 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
Right Angle SSMA Female 2 Hole Flange Mount Connector
Model :
SSMA-KWFD8
Frequency Range :
0.3MHz-18GHz
Impedance :
50Ω
DWV :
750V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Copper Alloy, Gold Plated
Screw Sleeve :
Stainless Steel, Passivition
Mount Method :
2 Hole Flange Mount
Insulators :
PTFE
Samples :
In stock
Description
50Ω Copper Alloy 2 Hole Flange Mount Right Angle SSMA Female/Socket RF Coaxial Connector
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω

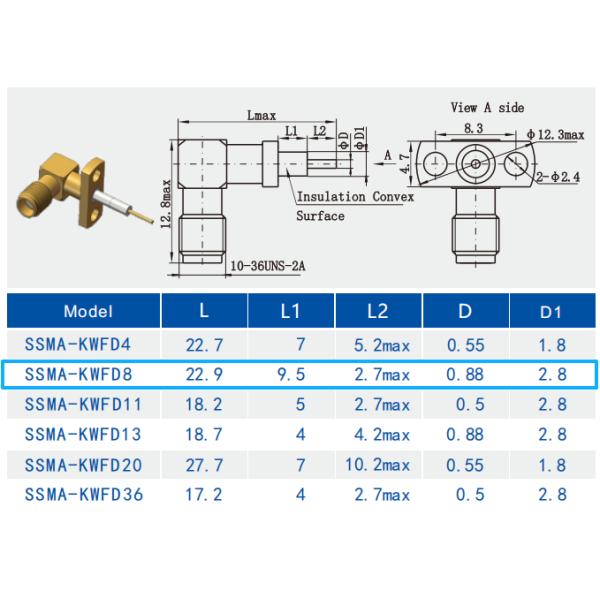

2 Hole Flange Mount Right Angle SSMA Female Dimenstion:
Model No.: SSMA-KWFD8
Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω
Packaging and Shipping
Each 2 Hole Flange Mount Right Angle SSMA Jack RF Coaxial Connector is carefully packaged to ensure protection during transportation:
Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
