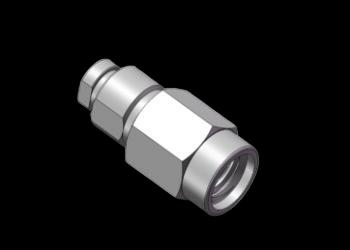

50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
Specifications
Brand Name :
ELT
Model Number :
RPSSMA-K506G
Certification :
RoHS
Place of Origin :
Xi'an, China
MOQ :
In Stock, MOQ 50 for new production
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-7 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
Reverse Polarity SSMA Female Cable Connector
Model :
RPSSMA-K506G
Frequency Range :
0.3MHz-18GHz
Impedance :
50Ω
DWV :
750V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Stainless Steel，Passivation
Mating Cable :
CXN3506 Cable
Insulators :
PTFE
Samples :
In stock
Description
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
Reverse Polarity Straight SSMA Female RF Coaxial CXN3506 Flexible Cable Connector Dimenstion:
Model No.: RPSSMA-K506G
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz

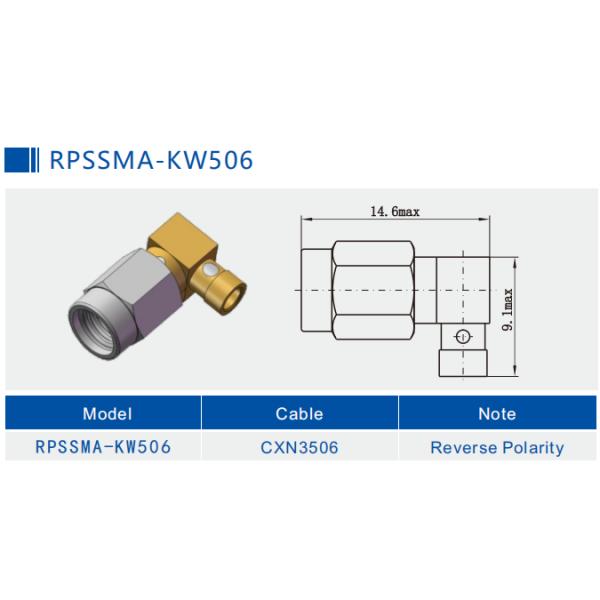

Reverse Polarity RA SSMA Female RF Coaxial CXN3506 Flexible Cable Connector Dimenstion:
Model No.: RPSSMA-K506G
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
50Ω Reverse Polarity SSMA Female Mini SMA Jack Straight Right Angle RF Coaxial CXN3506 Flexible Cable Connector 18GHz
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
