Stainless Steel SSMA Female Flange Mount Frequency Range 0.3MHz to 18GHz Using Microwave Component
Stainless Steel SSMA Female Flange Mount Frequency Range 0.3MHz to 18GHz Using Microwave Component
Stainless Steel SSMA Female Flange Mount Frequency Range 0.3MHz to 18GHz Using Microwave Component
Stainless Steel SSMA Female Flange Mount Frequency Range 0.3MHz to 18GHz Using Microwave Component
Specifications
Brand Name :
ELT
Model Number :
SSMA-KFD160G
Certification :
ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-15 working days after payment
Packaging Details :
1pcs/plastic bag;10 pcs/larger platic bag；100pcs/carton
Product Name :
SSMA Female Flange Mount Microstrip Connector
Model :
SSMA-KFD160G
Frequency Range :
0.3MHz-18GHz
Housing :
Stainless Steel, Passivation
Contacts :
Copper Alloy, Gold Palting
Insulator :
PTFE
Insulation Resistance :
>5000MΩ
DWV :
750V
Impendence :
50Ω
Temperature :
-55℃～+125℃
In stock :
samples in stock
Description

Product Description:



Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~18GHz
Rated Voltage
250VRMS
Dielectrics Voltage-resistance
750VRMS
Insulation Resistance
≥5000MΩ
Contact Resistance
Outer conductor
Normal≤2.5mΩ
Center conductor
Normal≤4mΩ
VSWR
≤1.3


VSWR
DC~18GHz 18GHz~26.5GHz 26.5~40GHz
Straight ≤1.3 ≤1.35 ≤1.4
Right Angle ≤1.3

Adapter ≤1.3 ≤1.35 ≤1.4
Others ≤1.3

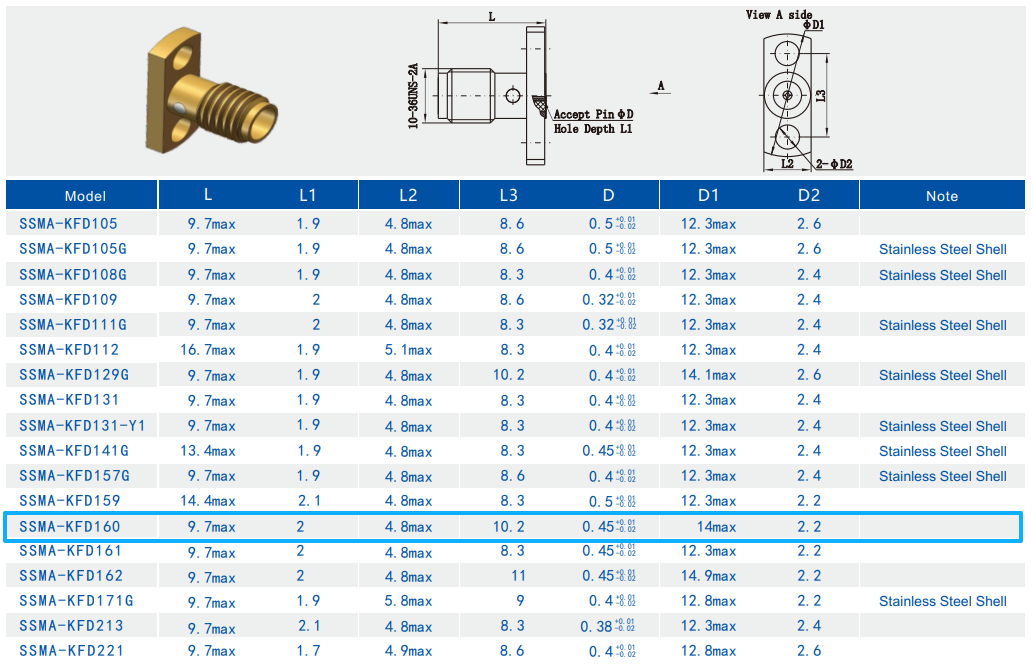

The outline demension of Stainless Steel Passivation SSMA Female Flange Mount Connectors Model: SSMA-KFD160G

Stainless Steel SSMA Female Flange Mount Frequency Range 0.3MHz to 18GHz Using Microwave Component

Applications:

Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.

Customization:

Product Customization Services for SSMP Female Flange Mount according drawing:

Brand Name: ELT

MOQ: 200 pcs

Price: Depending on the quantity

Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.


We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler...

Packing and Shipping:

Packaging for SSMA Flange Mount Connectors:

1 Piece/ small plastic bag

10 Pieces/ larger plastic bag

100 Pieces/ carton box


The SSMA fanlge mount connectors comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.

Stainless Steel SSMA Female Flange Mount Frequency Range 0.3MHz to 18GHz Using Microwave Component

For shipping, the SSMA flange mount connectors is placed in caron. We will supply the tracking No after shipping.
