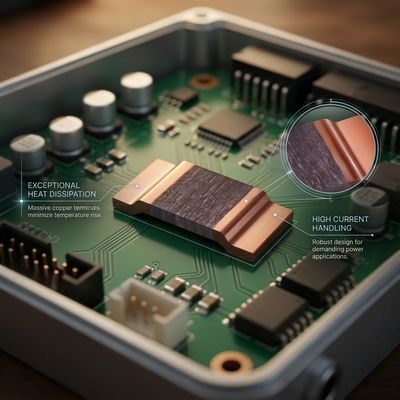

0.00025R (0.25m Ohm) 2512 Current Shunt Resistor 6W ±1% Ellon High Precision SMD
0.00025R (0.25m Ohm) 2512 Current Shunt Resistor 6W ±1% Ellon High Precision SMD
0.00025R (0.25m Ohm) 2512 Current Shunt Resistor 6W ±1% Ellon High Precision SMD
0.00025R (0.25m Ohm) 2512 Current Shunt Resistor 6W ±1% Ellon High Precision SMD
0.00025R (0.25m Ohm) 2512 Current Shunt Resistor 6W ±1% Ellon High Precision SMD
0.00025R (0.25m Ohm) 2512 Current Shunt Resistor 6W ±1% Ellon High Precision SMD
Specifications
MOQ :
4000
Package size :
2512 (6.3mm×3.2mm)
Tolerance :
±1%
Packaging Details :
Tape and reel
Delivery Time :
5-8 work days
Brand Name :
Ellon
Rated power :
6W
Price :
Negotiable
Material :
MnCu (manganese-copper) alloy
Payment Terms :
T/T
Resistance value :
0.00025R (0.25m Ohm)
Model Number :
ESR25F6W0M25M04G
Temperature coefficient :
±75ppm/℃
Supply Ability :
Large volume available
Place of Origin :
Made in China
Certification :
RoHS / REACH
Description
0.00025R (0.25m Ohm) 2512 Current Shunt Resistor 6W ±1% Ellon High Precision SMD
2512 0.00025R (0.25m Ohm) 6W High-Power 1% High Precision Metal Shunt Chip Resistor for Current Sensing. This 2512 current shunt resistor from Ellon delivers 0.00025R (0.25m Ohm) resistance with ±1% tolerance and 6W rated power, giving designers a compact surface-mount part that keeps performance steady under load and temperature.
Technical Specifications
Package size2512 (6.3mm*3.2mm)
MaterialMnCu (manganese-copper) alloy
Temperature coefficient±75ppm/℃
Rated power6W
Tolerance±1%
Resistance value0.00025R (0.25m Ohm)
Model NumberESR25F6W0M25M04G
Key Features
  • Stable 6W rated power handling for demanding circuits
  • ±1% tolerance for dependable measurement accuracy
  • Low ±75ppm/℃ temperature coefficient that keeps values stable as the board heats up
  • MnCu (manganese-copper) alloy element material for consistent, repeatable performance
  • Compact 2512 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
  • Current sensing circuits
  • Power supplies and conversion systems
  • Industrial control systems
  • Consumer electronics
  • Protection circuits
This current shunt resistor suits current sensing, power supplies, industrial control and consumer electronics. Its MnCu (manganese-copper) alloy construction and stable electrical behaviour help designers meet tight tolerances in current sensing, power conversion and protection circuits, while the 2512 body keeps the layout compact.
Manufacturing Advantages
Buying directly from the manufacturer keeps the series available at competitive pricing with short lead times. Every batch is electrically tested before packing, so the resistance and tolerance you specify are the values you receive.
Packaging & Quality Assurance
Supplied on tape and reel for automatic pick-and-place assembly, in standard reel quantities for SMT lines. Every shipment is RoHS and REACH compliant and can be accompanied by a certificate of compliance on request. Contact us for samples, datasheets and volume pricing tailored to your project.
0.00025R (0.25m Ohm) 2512 Current Shunt Resistor 6W ±1% Ellon High Precision SMD
