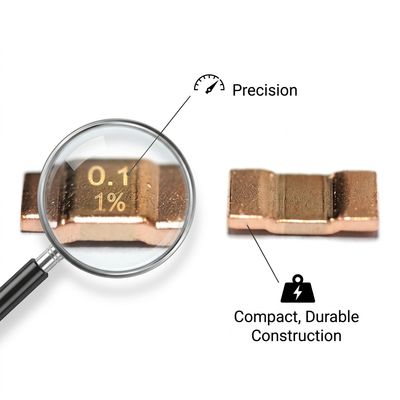

0.0001 Ohm 5930 Current Shunt Resistor 15W 1% Ellon High Precision SMD RoHS Compliant
0.0001 Ohm 5930 Current Shunt Resistor 15W 1% Ellon High Precision SMD RoHS Compliant
0.0001 Ohm 5930 Current Shunt Resistor 15W 1% Ellon High Precision SMD RoHS Compliant
0.0001 Ohm 5930 Current Shunt Resistor 15W 1% Ellon High Precision SMD RoHS Compliant
0.0001 Ohm 5930 Current Shunt Resistor 15W 1% Ellon High Precision SMD RoHS Compliant
0.0001 Ohm 5930 Current Shunt Resistor 15W 1% Ellon High Precision SMD RoHS Compliant
Specifications
Tolerance :
1%
MOQ :
2000
Temperature coefficient :
±50ppm/°C
Certification :
RoHS / REACH
Delivery Time :
5-8 work days
Operating temperature :
-55°C to +170°C
Brand Name :
Ellon
Payment Terms :
T/T
Resistance :
0.0001 Ohm
Place of Origin :
Made in China
Price :
Negotiable
Model Number :
ESR59F15W0M10M02G
Supply Ability :
Large volume available
Material :
Manganese copper alloy
Packaging Details :
Tape and reel
Power rating :
15W
Description
5930 0.0001 Ohm 15W 1% Metal Shunt Chip Resistor
5930 0.0001 Ohm 15W 1% Metal Shunt Chip Resistor for High-Precision Current Sensing Applications. This 5930 current shunt resistor from Ellon delivers 0.0001 Ohm resistance with 1% tolerance and 15W rated power, giving designers a compact surface-mount part that maintains stable performance under varying load and temperature conditions.
Technical Specifications
Resistance 0.0001 Ohm
Tolerance 1%
Temperature Coefficient ±50ppm/°C
Power Rating 15W
Operating Temperature -55°C to +170°C
Material Manganese Copper Alloy
Model Number ESR59F15W0M10M02G
Key Features
  • Stable 15W rated power handling for demanding circuits
  • 1% tolerance for dependable measurement accuracy
  • Low ±50ppm/°C temperature coefficient maintains stability across temperature variations
  • Manganese copper alloy element material ensures consistent, repeatable performance
  • Compact 5930 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
  • Current sensing circuits
  • Power supplies and conversion systems
  • Industrial control systems
  • Consumer electronics
  • Protection circuits
The manganese copper alloy construction and stable electrical behavior help designers meet tight tolerances in current sensing, power conversion, and protection circuits, while the 5930 package maintains a compact layout footprint.
Quality & Manufacturing Advantages
Sourced directly from the manufacturer for competitive pricing with short lead times. Every batch undergoes comprehensive electrical testing before packaging to ensure specified resistance and tolerance values are delivered.
Packaging & Compliance
Supplied on tape and reel for automatic pick-and-place assembly in standard reel quantities for SMT production lines. All shipments are RoHS and REACH compliant, with certificates of compliance available upon request.
0.0001 Ohm 5930 Current Shunt Resistor 15W 1% Ellon High Precision SMD RoHS Compliant
Contact us for samples, datasheets, and volume pricing tailored to your specific project requirements.
