TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
Specifications
Brand Name :
ZSX
Model Number :
TNC-KY-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$0.55 --$0.86 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
TNC Female Connector
Gender :
Female
Boday Material :
Nickel plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

RF Connector Nickel Plated BrassTNC Female Bulkhead Panel Connector TNC-50KY

TNC connector, whose full name is the Threaded Neoln-Concelman connector, is a type of RF coaxial connector that has optimized connection stability. It is specifically designed for complex signal transmission scenarios such as high frequency and high vibration, and is widely used in multiple fields. It can be regarded as an upgraded version of the threaded BNC connector, featuring a precision thread design of 32 teeth per inch. Compared with the BNC snap-on connection, it can achieve an anti-vibration connection at a torque of 30N · m. Even in strong vibration environments such as vehicles and aviation, it can prevent the connection from loosening. At the same time, it can withstand more than 500 insertion and extraction cycles, and is less likely to have contact failure problems after long-term use. It is composed of a plug, a socket, an insulator, a housing and fasteners. Insulators mostly use high-performance materials such as polytetrafluoroethylene to prevent signal distortion. The casing is made of aviation-grade brass or stainless steel, and its surface is often coated with a 5μm thick layer of chemical nickel-gold. It can not only pass the 48-hour salt spray test but also keep the contact resistance below 5 M Ω. Some models with silicone rubber O-ring seals also have good water and dust resistance.

Product display
Product Performance Details
Product model TNC-KY-1 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤1.5mΩ Outer contact:≤0.2mΩ Temperature range -45℃~+125℃

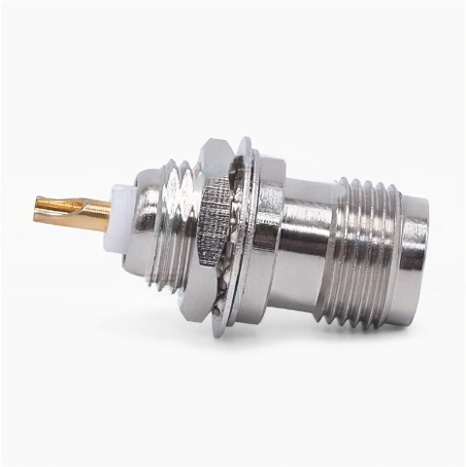

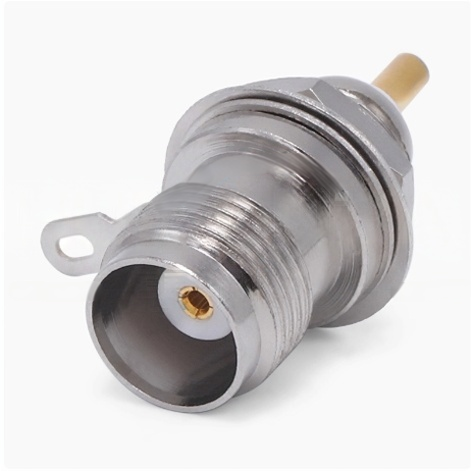

Physical product display
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector

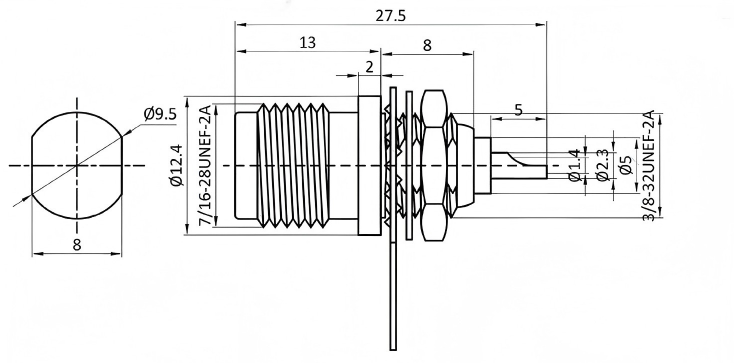

Product external dimensions
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
Related product recommendations
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
Display of Strength
Office area
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
Production Plant Area
Machining production workshop
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
Precision Assembly Production Workshop
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
Glass-to-metal sealed production workshop
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
Obtained Certification Certificate
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector

Customer visit
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
Product packaging
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector

Packaging and Shipping
TNC Female Bulkhead Panel Connector Nickel Plated Brass with DC-6GHz Frequency Range RF Coaxial Connector
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
