DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
Specifications
Brand Name :
ZSX
Model Number :
TNC-C-J-3
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$0.65 --$0.89 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Male TNC Connector
Gender :
Male
Boday Material :
Nickel plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description
DC-6GHz Male TNC Connector Waterproof Straight Crimp Connector 50 Ohm For RG58 Coaxial Cable
Product Overview

TNC (Threaded Neill-Concelman) connector is an RF coaxial connector optimized for connection stability. Designed specifically for complex signal transmission scenarios including high frequency and high vibration environments, it is widely used across multiple industries. This connector represents an upgraded version of the threaded BNC connector, featuring a precision thread design with 32 teeth per inch.

Compared to BNC snap-on connections, the TNC connector achieves anti-vibration connection at a torque of 30N·m. It maintains secure connections even in strong vibration environments such as vehicles and aviation applications. The connector withstands over 500 insertion and extraction cycles and demonstrates reduced contact failure problems after long-term use.

Constructed from plug, socket, insulator, housing, and fasteners, the connector utilizes high-performance materials including polytetrafluoroethylene insulators to prevent signal distortion. The casing is manufactured from aviation-grade brass or stainless steel with a 5μm thick chemical nickel-gold coating, passing 48-hour salt spray tests while maintaining contact resistance below 5MΩ. Models with silicone rubber O-ring seals provide excellent water and dust resistance.

Product Specifications
Parameter Specification Parameter Specification
Product Model TNC-C-J-3 Dielectric Constant ≥5000MΩ
Characteristic Impedance 50 ohm Body Material Nickel-plated brass
Frequency Range DC-6GHz Central Conductor Gold-plated brass
Voltage Standing Wave Ratio ≤1.25 Insulator Material PTFE
Medium Pressure Resistance ≥1000V RMS, 50Hz, at sea level Durability ≥500 Cycles
Contact Resistance Center contact: ≤1.5mΩ
Outer contact: ≤0.2mΩ		 Temperature Range -45℃ to +125℃

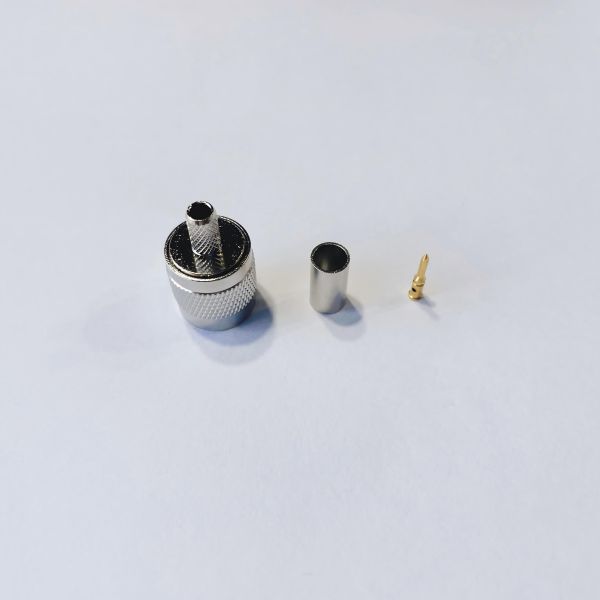

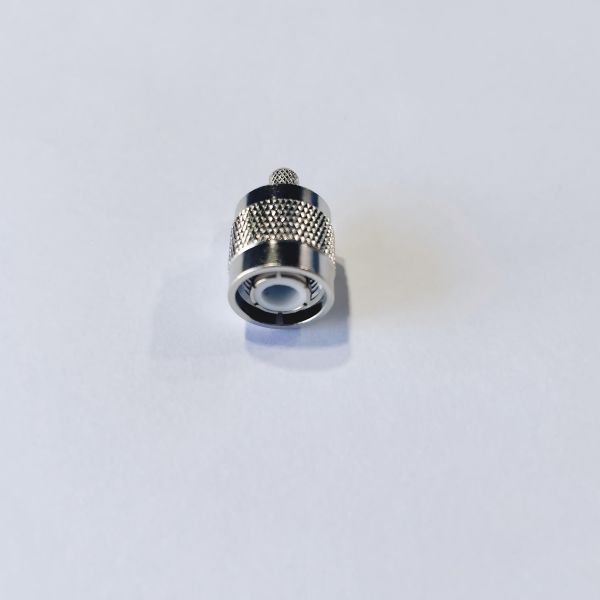

Product Images
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable

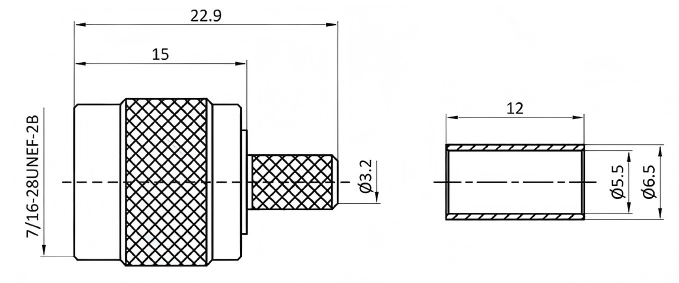

Product Dimensions
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
Related Products
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
Manufacturing Capabilities
Production Facilities

Our comprehensive manufacturing facility includes specialized workshops for various production processes:

Machining Production Workshop
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
Precision Assembly Production Workshop
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
Glass-to-Metal Sealed Production Workshop
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
Quality Certifications
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
Customer Engagement
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
Packaging & Shipping
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
DC-6GHz Waterproof TNC Male Connector 50 Ohm Straight Crimp Type for RG58 Coaxial Cable
  • Standard export carton packaging
  • Customized specifications including logo and other requirements available
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (varies based on quantity and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?

Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales experience in Aeronautics, Astronautics and commercial RF microwave transmission components.

What are the main products of your company?

Main products include RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Does your company accept customized products?

We accept ODM (Original Design Manufacturing) services.

Does your company provide free samples?

We support free samples with freight paid on delivery.

What is the minimum order quantity of your company's products?

200 pieces. Pricing is higher for orders under 200 pieces.

Which logistics company does your company ship through?

We cooperate with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure quick delivery with competitive shipping costs. Air and sea freight options are also available.

How long does it usually take to receive the goods?

Typically 3-8 working days for international express, 5-8 working days for air freight.

What payment methods does your company accept?

We accept L/C, T/T, Western Union, and Trade Assurance (credit card & T/T).

How long is your warranty?

The warranty period is three months.
