RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
Specifications
Brand Name :
ZSX
Model Number :
TNC-C-J-RG213
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$0.95 --$1.45 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
TNC male Connector
Gender :
Male
Boday Material :
Nickel plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.3
Description
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213

TNC-C-J-RG213 is a 50Ω standard TNC male straight connector professionally assembled for RG213 coaxial cable. It features a rugged threaded coupling structure, excellent electrical performance, low insertion loss, and high shielding effectiveness, ensuring stable signal transmission in harsh environments. Built with high-quality metal and insulation materials, it offers superior durability, anti-vibration, and anti-oxidation properties. Widely used in RF communication systems, base stations, antennas, broadcast equipment, and test instruments, it is an ideal connection solution for reliable long-term RF signal transmission.

Product display
Product Performance Details
Product model TNC-C-J-RG213 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤1.5mΩ Outer contact:≤0.2mΩ Temperature range -45℃~+125℃

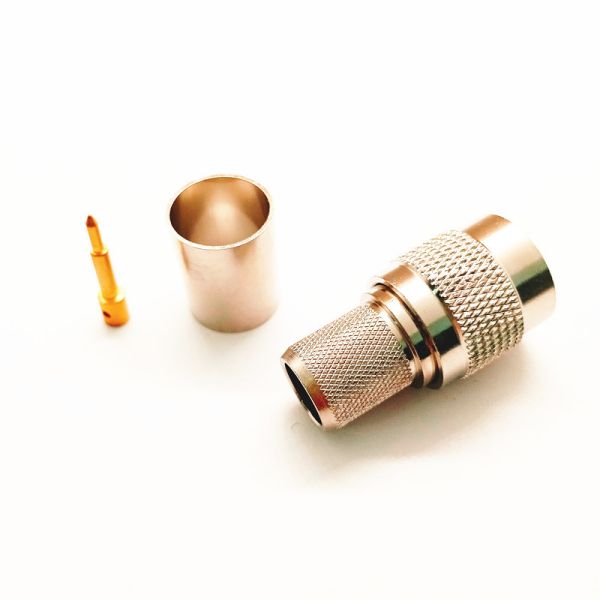

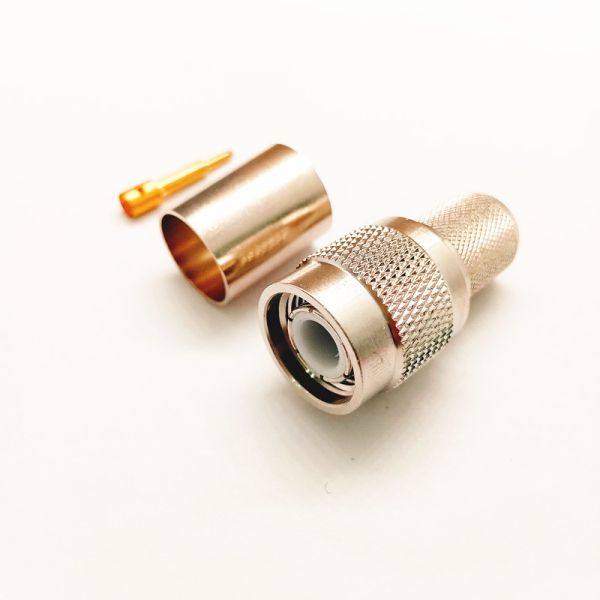

Physical product display
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213

Related product recommendations
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
Display of Strength
Office area
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
Production Plant Area
Machining production workshop
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
Precision Assembly Production Workshop
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
Glass-to-metal sealed production workshop
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
Obtained Certification Certificate
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213

Customer visit
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
Product packaging
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213

Packaging and Shipping

  • Standard export carton RF Connector TNC Male Plug Straight Connector TNC-C-J-RG213
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
