N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
Specifications
Brand Name :
ZSX
Model Number :
N-KYKM
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$1.29-$1.85(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
N Type Adapter N-KYKM
Gender :
Female to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.2
Description
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring

N-KYK is a high-performance N-type female-to-female bulkhead RF coaxial adapter (50Ω, DC-6GHz max 11GHz) with IP67 waterproof design, durable brass construction and gold-plated contacts. It ensures stable signal transmission, wide compatibility with standard N-type components, and is ideal for base stations, radar and RF test equipment.

Product display
Product Performance Details
Product model N-KYKM Contact resistance Center contact :1 mΩ
Outer contact :1mΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-6GHz Insulator PTFE
Voltage standing wave ratio ≤1.2 Central conductor Gold-plated beryllium copper
Medium pressure resistance 1000V RMS Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

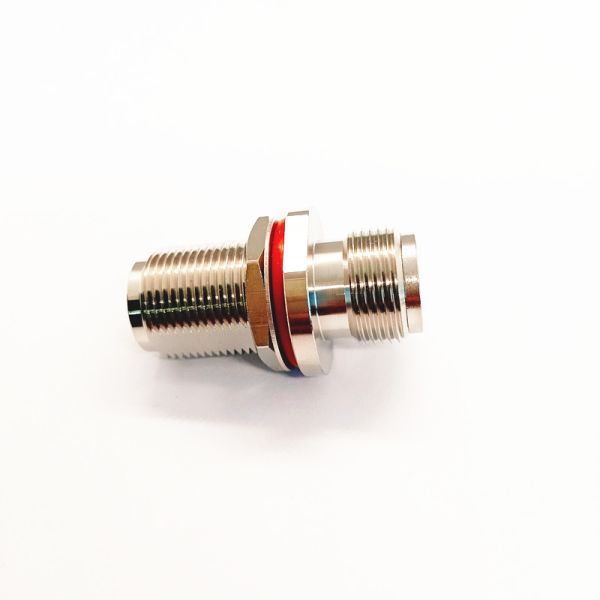

Physical product display
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring

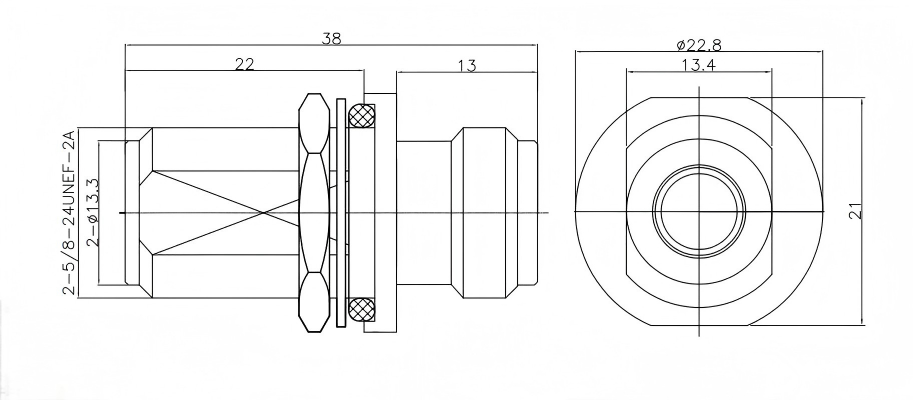

Product external dimensions
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
Related product recommendations
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
Display of Strength

Machining production workshop
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
Precision Assembly Production Workshop
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
Glass-to-metal sealed production workshop
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
Obtained Certification Certificate
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
Customer visit
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
Product packaging
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
Packaging and Shipping
N Female To Female Bulkhead Adapter Nickel Plated Brass With A Waterproof Sealing Ring
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
