Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Specifications
Brand Name :
ZSX
Model Number :
SMA-JWE
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.99 --$1.25 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
SMA Female Connectors
Gender :
Female
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

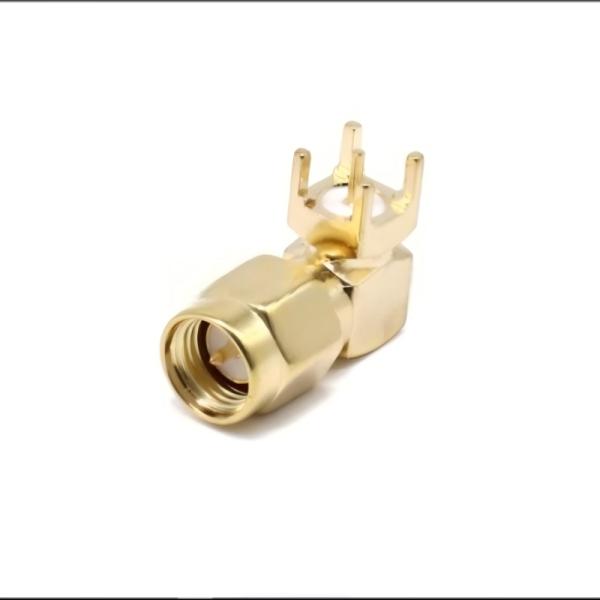

Gold Plated Brass SMA Male Right Angle PCB Connector

SMA‑JWE is a 50Ω right‑angle PCB‑mount male RF coaxial connector designed for stable high‑frequency signal transmission up to 6GHz. Featuring a compact 90° structure, gold‑plated brass contacts, PTFE insulation, and excellent VSWR and low insertion loss, it offers high durability, strong anti‑vibration performance, and reliable shielding. Widely used in wireless communications, IoT modules, RF equipment, and automotive electronics, it supports easy PCB soldering and complies with RoHS and international performance standards.

Product display
Product Performance Details
Product model SMA-JWE Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤3mΩ Outer contact:≤2mΩ Temperature range -45℃~+125℃
Physical product display
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Product external dimensions
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Related product recommendations
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Display of Strength
Production Plant Area
Machining production workshop
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Precision Assembly Production Workshop
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Glass-to-metal sealed production workshop
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Obtained Certification Certificate
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Customer visit
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Product packaging
Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
Packaging and Shipping
  • Standard export carton Gold-Plated Brass SMA Right Angle PCB Connector with 6GHz Frequency Range for High-Frequency Signal Transmission
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
