SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
Specifications
Brand Name :
ZSX
Model Number :
SSMA-C-J-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.96-$1.35 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
SMA Connector
Gender :
Female
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description
RF Connector SSMA Male Crimp Connector For 50-1.5/Rg316 Coaxial Cable

SSMA-C-J-1.5 is a compact 50Ω RF coaxial connector designed for high-frequency transmission up to 6GHz. It features a brass body with gold plating, PTFE insulation, and threaded locking for stable performance and strong anti-vibration capability. Suited for RG316, RG174 and similar 1.5mm diameter cables, it operates reliably in harsh environments and is widely used in aerospace, aerospace communications, 5G equipment, radar and test instruments.

Product display
Product Performance Details

Product model

 SSMA-C-J--1.5 Dielectric constant
≥5000MΩ

Characteristic impedance

 50 ohm Body material Gold-plated brass

Frequency range

 DC-6GHz

Central conductor

 Gold-plated brass

Voltage standing wave ratio

 ≤1.3 Insulator material PTFE

Medium pressure resistance

 ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles

Contact resistance

Center contact:≤4mΩ

Outer contact:≤2.5mΩ

 Temperature range -45℃~+125℃

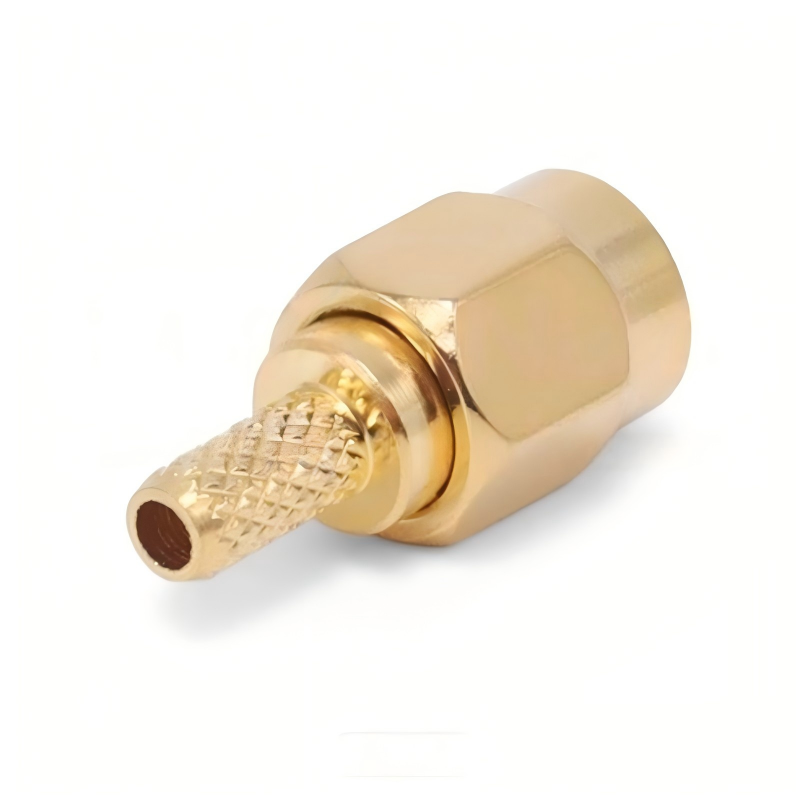

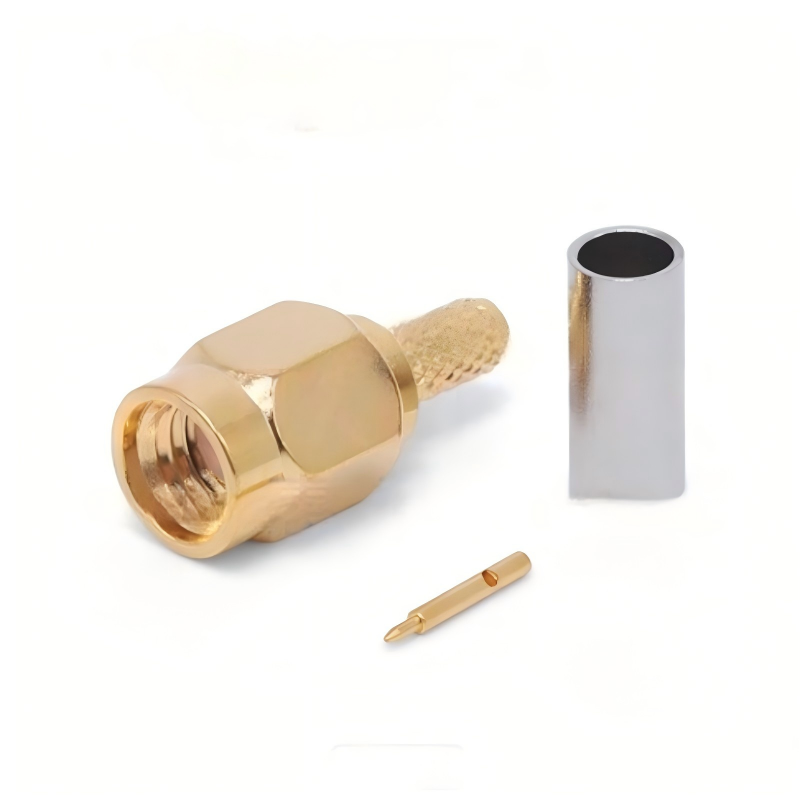

Physical product display
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range

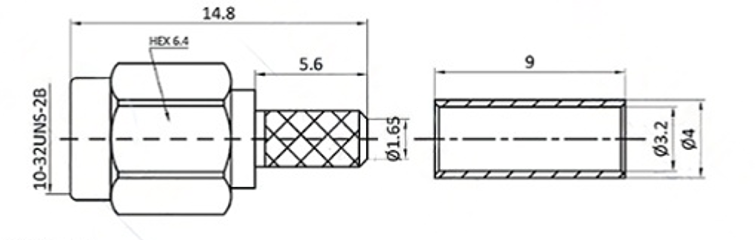

Product external dimensions
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
Related product recommendations
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
Display of Strength
Production Plant Area
Machining production workshop
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
Precision Assembly Production Workshop
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
Glass-to-metal sealed production workshop
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
Obtained Certification Certificate
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
Customer visit
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
Product packaging
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
Packaging and Shipping
SMA Connector SSMA Male Crimp RF Connector with Gold-Plated Brass and PTFE Insulation for 6GHz Frequency Range
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
