50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable
50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable
50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable
50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable
50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable
50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable
Specifications
Supply Ability :
1000000Pcs/Year
Name :
SMA Connector
Model Number :
SMA-JB3
Insulator material :
PTFE
MOQ :
20 pcs
Delivery Time :
5-8 Days
VSWR :
≤ 1.2
Payment Terms :
T/T,D/P,Alipay
Gender :
Male
Working temperature :
-45℃~+125℃
Price :
$0.58-$0.95(Depending on the quantity)
Boday Material :
Gold-plated brass
Brand Name :
ZSX
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
Carton packaging
Description

50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type For Rg402/670-141 Cable

SMA-JB3 straight male RF connector for RG402 semi-rigid cable, 50 Ohm impedance, DC-6GHz low VSWR. PTFE dielectric, gold-plated contacts, wide temperature range, ideal for test instruments, microwave & communication equipment. Matching cable: RG402/141.

Product display
Product Performance Details
Product model SMA-JB3 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.2 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤3mΩ
Outer contact:≤2mΩ		 Temperature range -45℃~+125℃

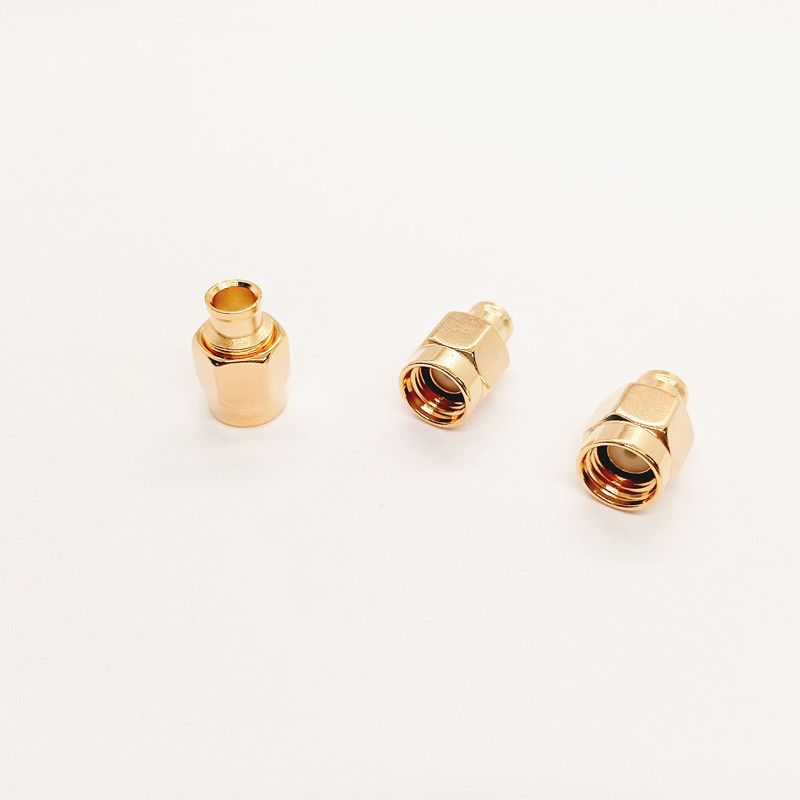

Physical product display

50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable 50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable

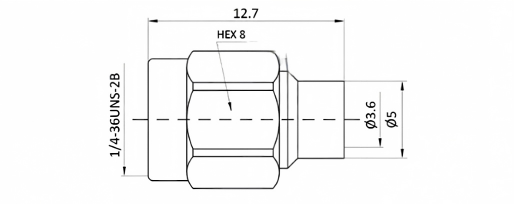

Product external dimensions

50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable

Related product recommendations

50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable 50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable

Display of Strength
Production Plant Area
Machining production workshop

50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable 50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable

Precision Assembly Production Workshop

50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable 50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable

Glass-to-metal sealed production workshop

50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable 50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable

Obtained Certification Certificate

50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable

Customer visit

50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable 50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable

Product packaging

50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable 50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable

Packaging and Shipping
50 Ω RF Coaxial Connector Gold-plated Brass Soldering Type SMA-JB3 for RG402/670-141 Cable
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
