SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications
SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications
SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications
SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications
SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications
SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications
Specifications
Brand Name :
ZSX
Model Number :
SMA-KYB2
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.70 -$0.96(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Connector SMA-KYB2
Gender :
Female
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

SMA-KYB2 RF Coaxial Connector 50Ω Female Straight For RG405/SFT50-2/086 Cable DC-18GHz

SMA-KYB2 is an SMA type female straight RF coaxial connector, specifically designed for semi-rigid/semi-flexible cables such as SFT-50-2, RG-405, and 086. It features wide bandwidth, high reliability, and low loss, and is widely used in microwave communication, test instruments, aerospace, and other fields.

Product display
Product Performance Details
Product model SMA-KYB2 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Brass
Frequency range DC-18GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.20 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤3mΩ Outer contact :≤2mΩ Temperature range -45℃~+125℃

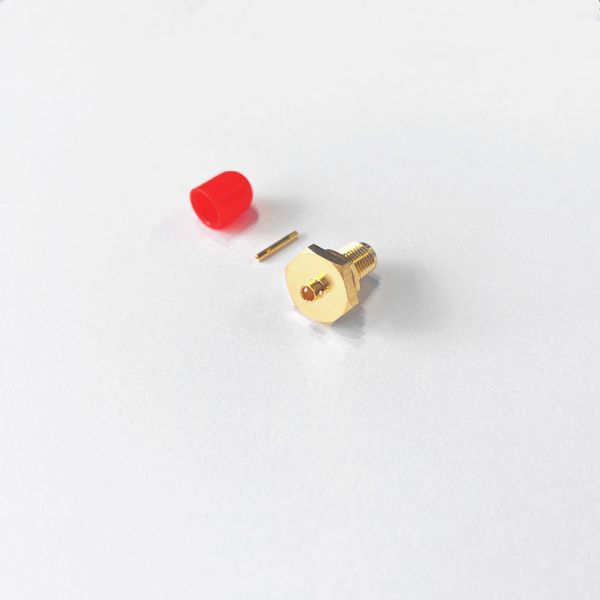

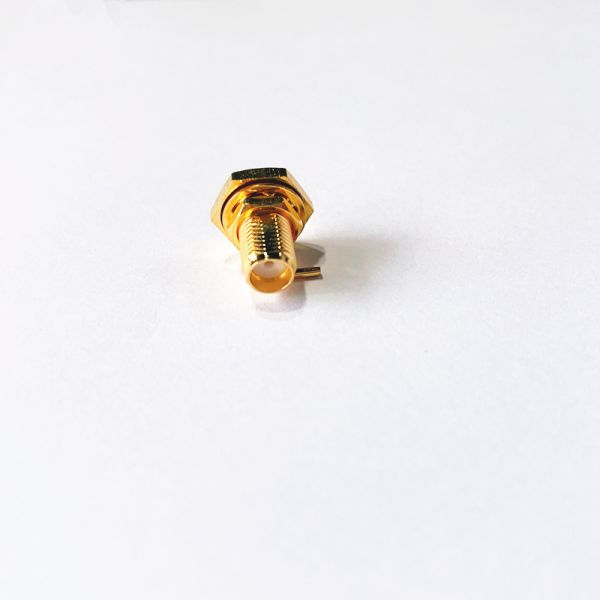

Physical product display

SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications

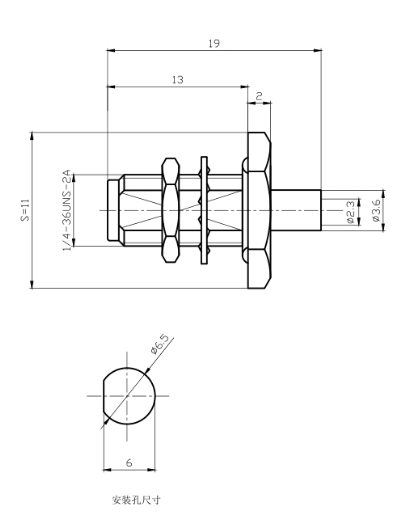

Product external dimensions


SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications


Related product recommendations

SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications

Display of Strength

Production Plant Area
Machining production workshop

SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications

Precision Assembly Production Workshop

SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications

Glass-to-metal sealed production workshop

SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications

Obtained Certification Certificate

SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz ApplicationsSMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications

Customer visit

SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications

Product packaging

SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications

Packaging and Shipping
  • Standard export carton SMA-KYB2 RF Coaxial Connector 50Ω Female Straight with Gold-plated Brass for DC-18GHz Applications
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
