Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion
Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion
Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion
Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion
Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion
Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion
Specifications
Brand Name :
ZSX
Model Number :
UHF/SMA-JJ
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$$1.13-$1. 85 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Male to male
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

Rf Adapter SO239/PL259 Male To SMA Male M/SMA-JJ UHF/SMA-JJ

High-quality UHF Female to SMA Female adapter delivers stable 50Ω impedance matching and excellent electrical performance from DC to 3GHz. Made of gold-plated brass contacts and nickel-plated housing for superior corrosion resistance and durability. Low VSWR and insertion loss ensure minimal signal attenuation, perfect for ham radio, antennas, RF test equipment and various wireless communication applications. Plug and play, fully compatible with all standard UHF and SMA interface devices.

Product display
Product Performance Details
Product model UHF/SMA-JJ Contact resistance

Center contact(UHF) :5mΩ Outer contact (UHF):5mΩ

Center contact(SMA) :3mΩ Outer contact (SMA):2mΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-1GHz Insulator PTFE
Voltage standing wave ratio ≤1.25 Central conductor Gold-plated beryllium copper
Medium pressure resistance 1000V RMS Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

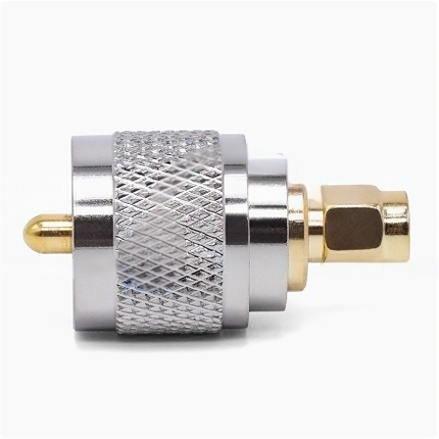

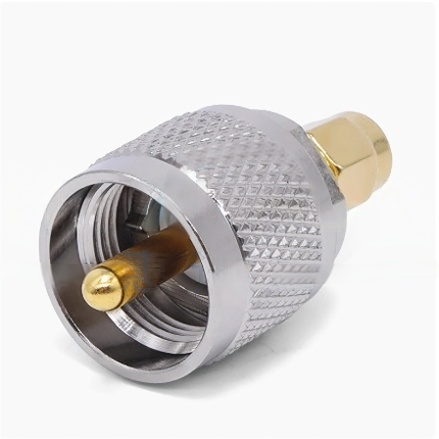

Physical product display

Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion

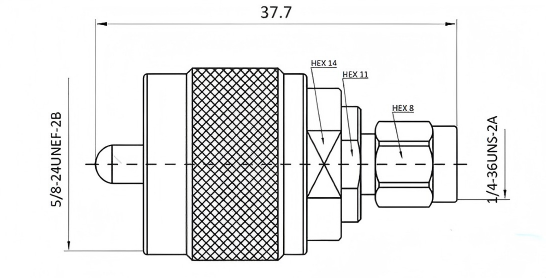

Product external dimensions

Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion


Related product recommendations

Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion

Display of Strength


Production Plant Area
Machining production workshop

Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion

Precision Assembly Production Workshop

Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion

Glass-to-metal sealed production workshop

Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion

Obtained Certification Certificate

Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA ConversionGold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion

Customer visit

Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion

Product packaging

Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion

Packaging and Shipping
  • Standard export carton Gold-Plated Brass RF Adapter with 50Ω Impedance Matching and Low VSWR ≤1.25 for UHF to SMA Conversion
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
