J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
Specifications
Brand Name :
ZSX
Model Number :
J14B-26TK-100CM
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
J14 Connector
Gender :
Male
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Withstand voltage :
800V
Description
2A J14B Connector 26 Pin Male Connector 800V J14B-26TK-100CM
J14 Series Micro Rectangular Connector J14B-26TK-100CM 26-pin Plug Connector J14B series rectangular electrical connector is a low-frequency electrical connector with a double-safety locking structure. It is a connection locking form among rectangular electrical connectors that combines quick operation and reliable use. Based on the J14A series connector housing, the density of the contact pieces and the rainproof function have been increased. The rounded corner anti-reverse insertion design makes it small in size, light in weight, and fixed by the socket panel.
Product Performance Details
Product model J14B-26TK-100CM Acceleration 980m/s²
Ambient temperature -55℃~+125℃ Rated current 2 A
Vibration 10Hz~2000Hz 196m/s² Contact resistance ≤ 10mΩ
Relative humidity At 40 ±2℃,90% to 95% Insulation resistance ≥ 1000mΩ
Impact 980m/s² Rated current 2 A
Withstand voltage 800 V Mechanical life 500 times

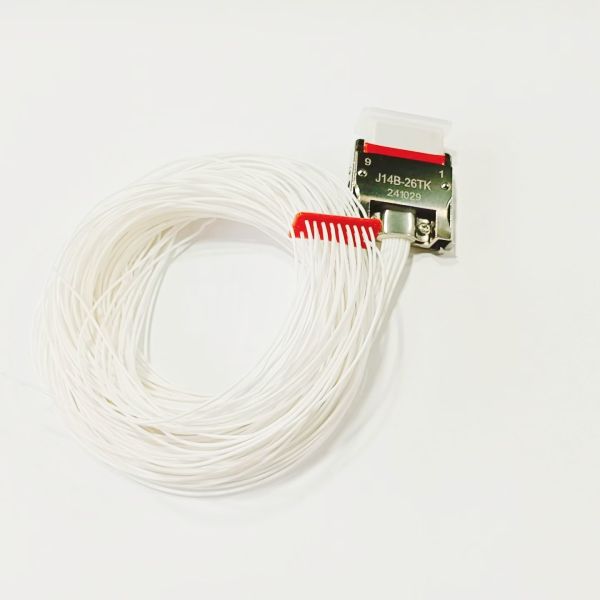

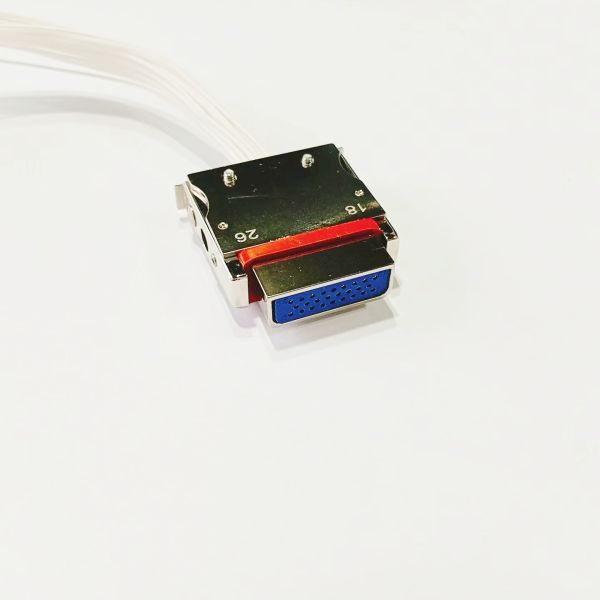

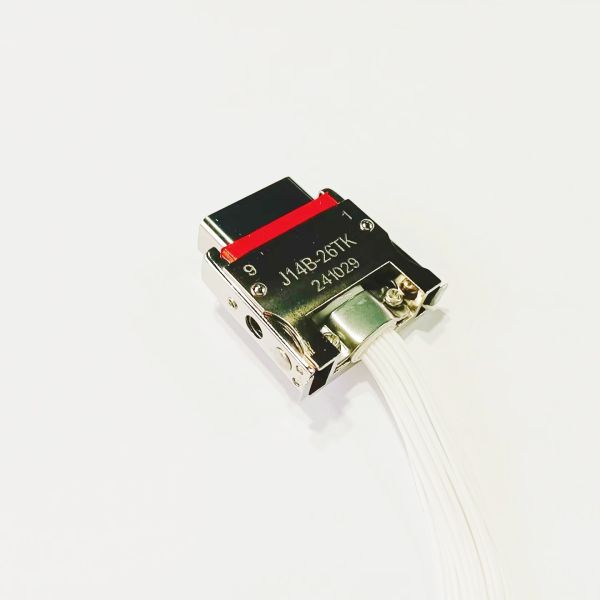

Product Show
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃ J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
Product External Dimensions
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃

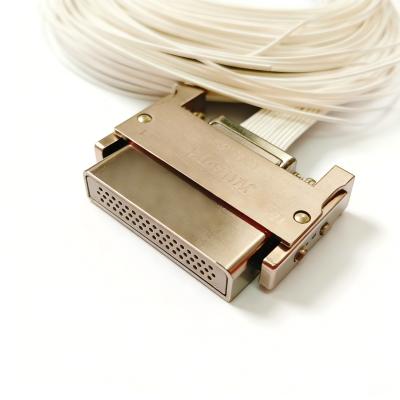

Related Product Recommendation
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃ J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
Product Selection Reference
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
Appearance and Installation Dimensions
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
Display of Strength
Production Plant Area
Machining Production Workshop
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃ J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
Precision Assembly Production Workshop
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃ J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
Obtained Certification Certificate
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃ J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
Customer Visit
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃ J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
Product Packaging
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃ J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
Packaging and Shipping
J14B Connector 26 Pin Male Rectangular Electrical Connector with 800V Withstand Voltage and Wide Temperature Range -55℃~+125℃
  • Standard export carton
  • As per customized specifications such as logo or others
  • According to customers' requirements
  • Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders (based on different quantities, ODM, etc.)
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 pieces.
Q: Which logistics company does your company ship through?
A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
