Specifications
Model Number :
J14A-15ZJL
MOQ :
5 pcs
Delivery Time :
5-8 Days
Rated current :
3A
Price :
$26.58-$35.50(Depending on the quantity)
Boday Material :
Aluminum
Certification :
ISO9001
Payment Terms :
T/T,D/P,Alipay
Gender :
Female
Working temperature :
-55℃~+125℃
Insulator material :
PPS
Supply Ability :
1000000Pcs/Year
Name :
J14A Connector
Packaging Details :
Carton packaging
Brand Name :
ZSX
Place of Origin :
China
Description
J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector

J14A‑15ZJL is a 15‑contact cable‑tail receptacle from J14A miniature rectangular connector series. It features metal shielding shell and push‑pull double‑lock anti‑mis‑insertion structure. Rated 3A per contact, operating temperature ‑55℃~+125℃, 500 mating cycles. Mates with J14A‑15TK. Ideal for aerospace and high‑reliability industrial equipment. Solder cup termination for cable wiring.

Product display
Product Performance Details
Product model J14A-15ZJL Acceleration 780m/s2
Ambient temperature -55℃~+125℃ Rated current 3 A
Vibration 10Hz~2000Hz 196m/s2 Contact resistance ≤6mΩ
Relative humidity At 40±2℃,90% to 95% Insulation resistance ≥2000mΩ
Impact 980 m/s2 11ms Atmospheric pressure 101.3KPa-1.33Pa
Withstand voltage 800 V Mechanical life 500 times

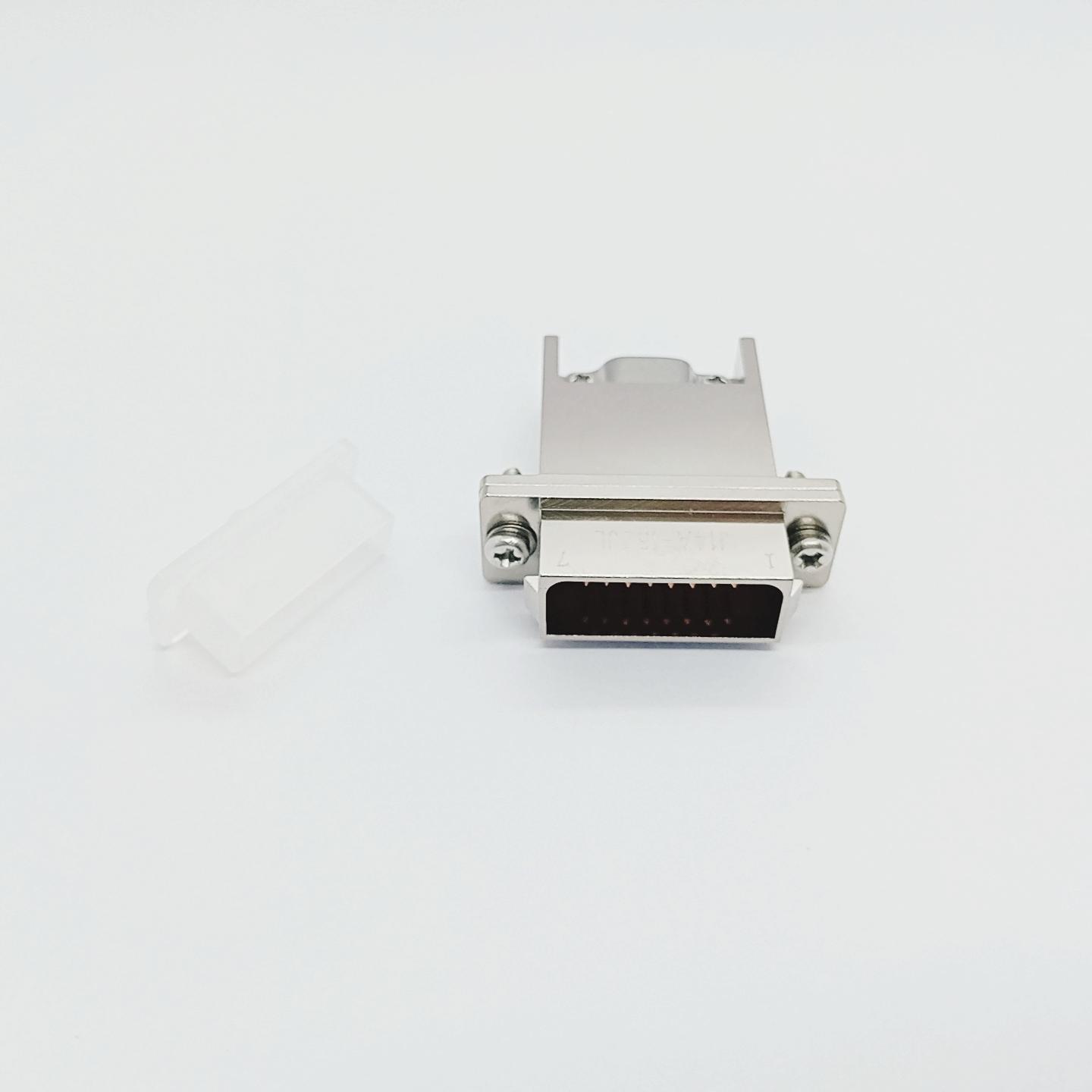

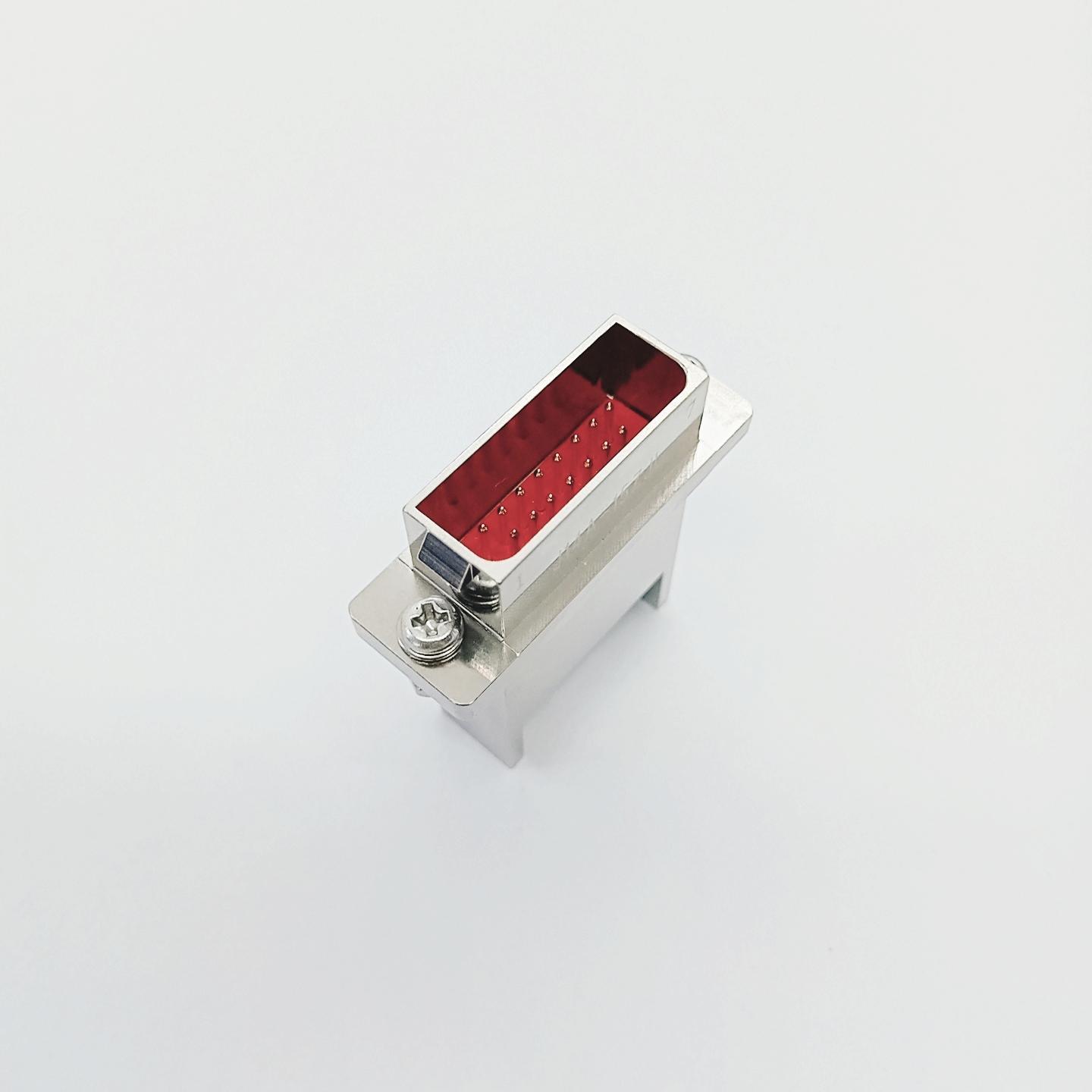

Physical product display
Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector

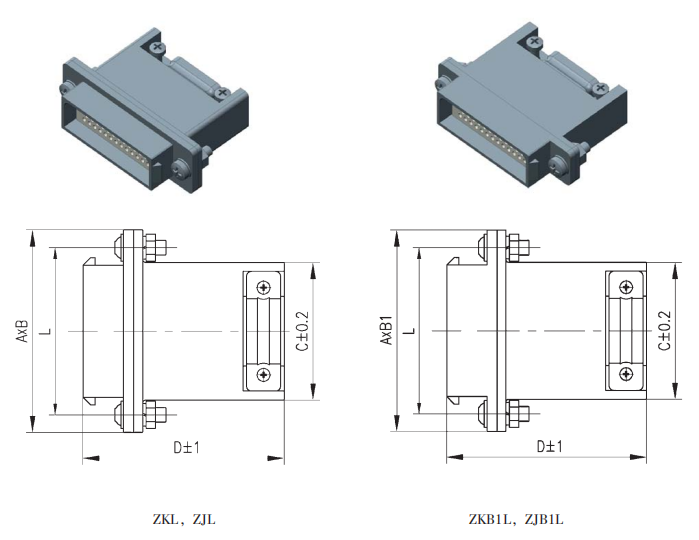

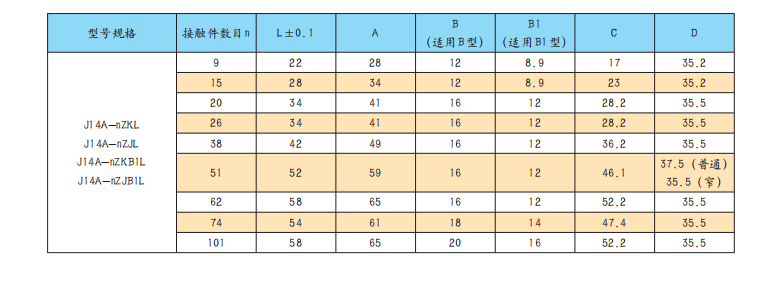

External dimensions of the product
Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector

Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector
Related product recommendations
Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector
Product selection reference
Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector
Display of Strength
Production Plant Area
Machining production workshop
Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector
Precision Assembly Production Workshop
Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector
Glass-to-metal sealed production workshop
Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector
Obtained Certification Certificate
Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector
Customer visit
Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector
Product packaging
Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector
Packaging and Shipping
  • Standard export carton Low Frequency Electrical Connector J14A Series J14A-15ZJL Double-locking Structure 15 Pin Socket Connector
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
