Micro-D Type Connector J14F Series 36-pin Jack (Female) Connector

J14F series rectangular electrical connectors are push-pull low-frequency electrical connectors that comply with the GJB142A-94 standard. They feature a rounded corner anti-reverse insertion design, are small in size and light in weight, come in five core numbers (9/15/27/36/51), are press-fit terminals, have uniform cable outlets on the head seat, are locked by push-pull leaf springs, have a small unlocking space, and are suitable for signal and low-power power supply connections in harsh environments. They are a reliable choice for internal wiring in military and industrial equipment.

Core advantages
  • Anti-misinsertion and convenient operation: The rounded corner anti-reverse insertion structure avoids mismatching; the push-pull locking is quick to insert and remove with one hand, and the unlocking space is only 60% of that of conventional products, making installation in narrow spaces more efficient.
  • Stable transmission and low loss: Contact resistance < 8mΩ (before lifespan), insulation resistance ≥ 500MΩ, withstand voltage 500V, ensuring stable signal and low-power power transmission, and reducing circuit loss.
  • Tolerance to harsh environments: -55℃ to 125℃ wide temperature range operation, resistant to 196m/s² vibration and 980m/s² impact, suitable for high humidity and low pressure harsh conditions, with a mechanical life of up to 500 insertions and extractions.
  • Comprehensive specifications and wide compatibility: Five core numbers cover different channel requirements, press-fit terminals are suitable for batch assembly, compatible with 0.1 to 0.15mm² cables, and meet diverse wiring scenarios.
Product display
Product Performance Details
Product model J14F-36TJ Acceleration 780m/s2
Ambient temperature -55℃~+125℃ Rated current 2 A
Vibration 10Hz~2000Hz 196m/s2 Contact resistance ≤8mΩ
Relative humidity At 40±2℃,90% to 95% Insulation resistance ≥500mΩ
Impact 980 m/s2 11ms Atmospheric pressure 101.3KPa-1.33Pa
Withstand voltage 500 V Mechanical life 500 times
Physical product display

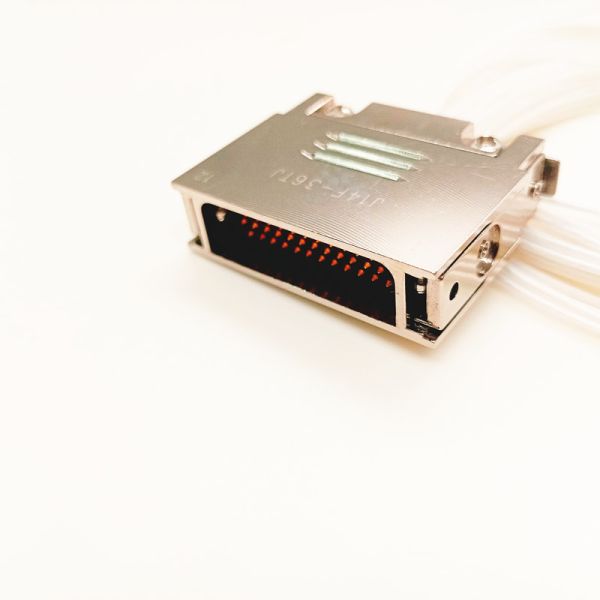

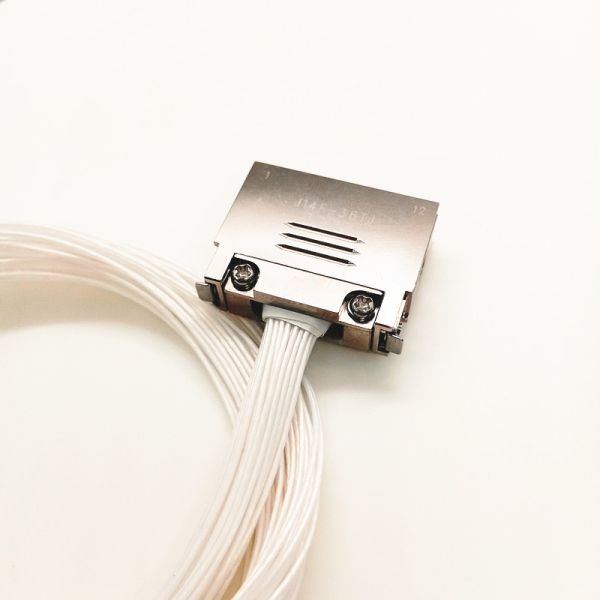

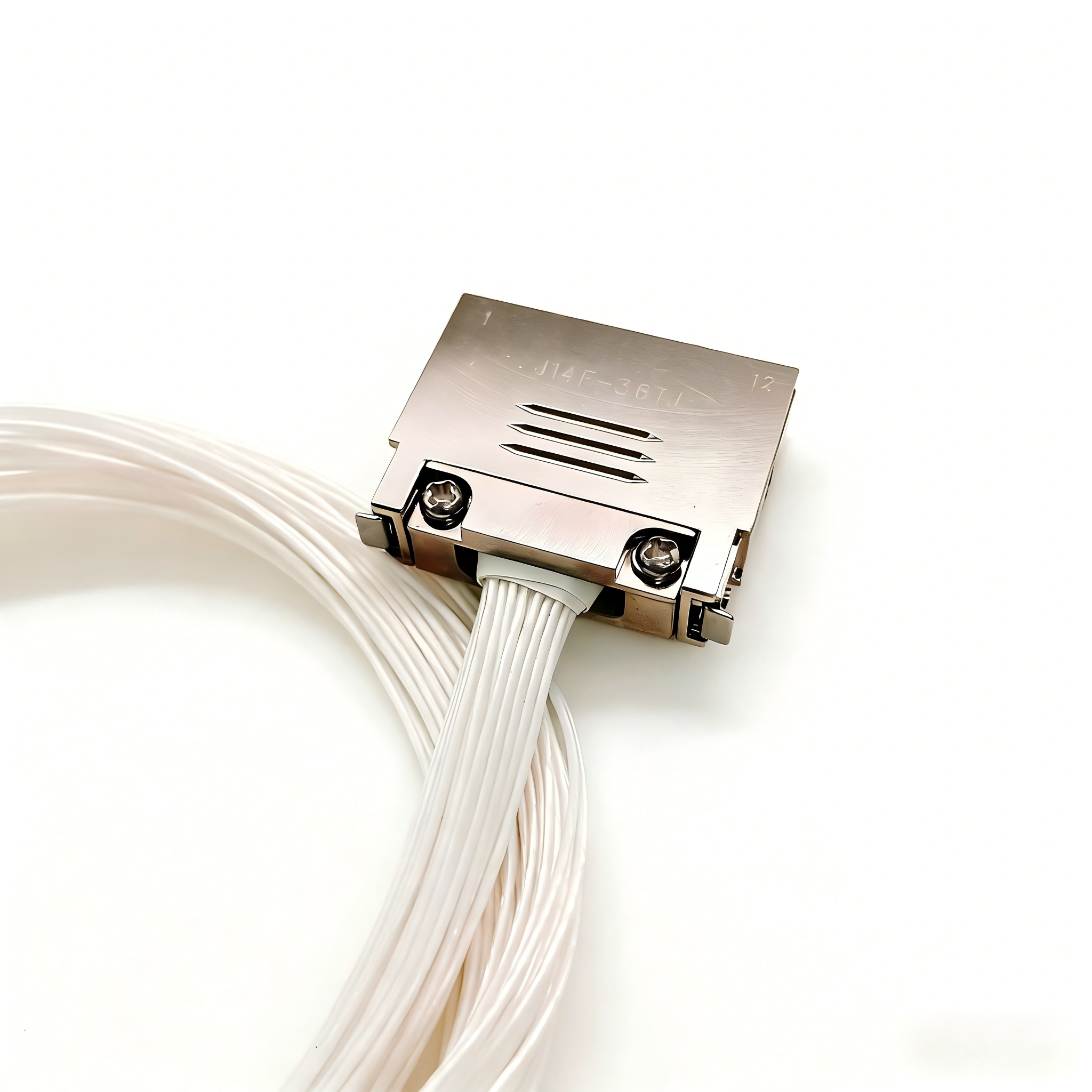

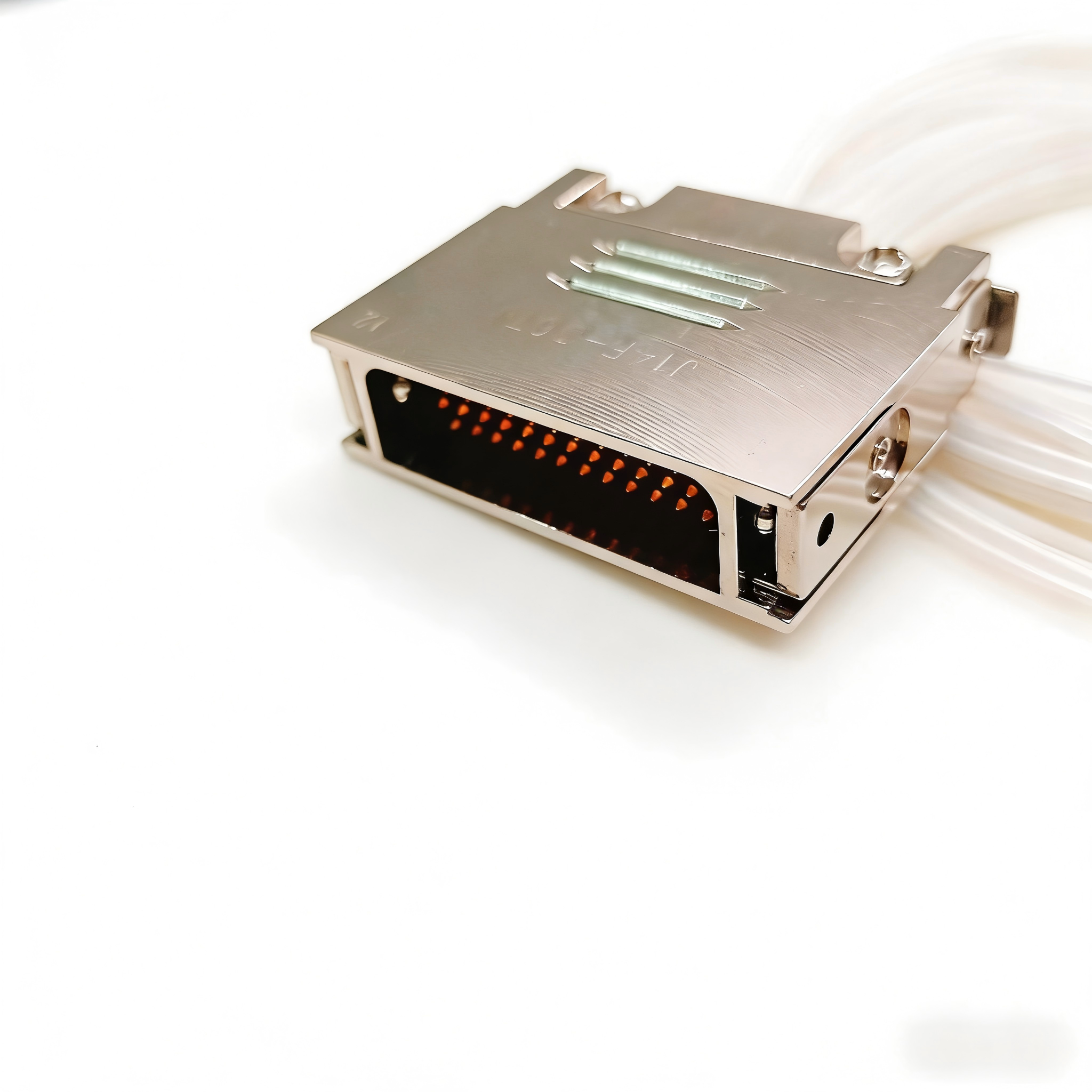

36-pin Metal Body Micro-D Connector J14F Series with Wide Temperature Range for Harsh Environments 36-pin Metal Body Micro-D Connector J14F Series with Wide Temperature Range for Harsh Environments

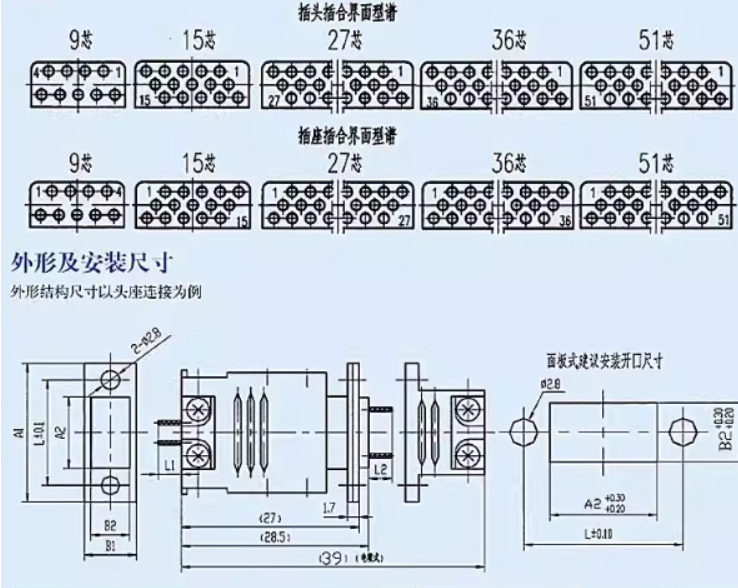

External dimensions of the product

36-pin Metal Body Micro-D Connector J14F Series with Wide Temperature Range for Harsh Environments



Model(Plug) Model(Socket) A1 A2 L B1 B2
J14F-9TK/ZJB J14F-9TJ/ZKB 19 9.4 14.5 6.7 4.7
J14F-9TK/ZLA J14F-9TJ/ZKL 19 9.4 14.5 6.7 4.7
J14F-15TK/ZJB J14F-15TJ/ZKB 21 10.8 16 7.9 5.9
J14F-15TK/ZLA J14F-15TJ/ZKL 21 10.8 16 7.9 5.9
J14F-27TK/ZJB J14F-27TJ/ZKB 26 16 21.5 7.9 5.9
J14F-27TK/ZLA J14F-27TJ/ZKL 26 16 21.5 7.9 5.9
J14F-36TK/ZJB J14F-36TJ/ZKB 31 20.6 26 7.9 5.9
J14F-36TK/ZLA J14F-36TJ/ZKL 31 20.6 26 7.9 5.9
J14F-51TK/ZJB J14F-51TJ/ZKB 38 27.6 33 7.9 5.9
J14F-51TK/ZLA J14F-51TJ/ZKL 38 27.6 33 7.9 5.9
