J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ
J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ
J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ
J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ
J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ
J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ
Specifications
Brand Name :
ZSX
Model Number :
J14B-34ZJ
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
J14B Connector
Gender :
Male
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
 Rated current :
2A
Description

J14B Micro Rectangular J14B-34ZJ Plug( Jack) Connector

J14B series rectangular electrical connector is a low-frequency electrical connector with a double-safety locking structure. It is a connection locking form among rectangular electrical connectors that combines quick operation and reliable use. Based on the J14A series connector housing, the density of the contact pieces and the rainproof function have been increased. The rounded corner anti-reverse insertion design makes it small in size, light in weight, and fixed by the socket panel.

Product display
Product Performance Details
Product model J14B-34ZJ Acceleration 780m/s2
Ambient temperature -55℃~+125℃ Rated current 2 A
Vibration 10Hz~2000Hz 196m/s2 Contact resistance ≤10mΩ
Relative humidity At 40±2℃,90% to 95% Insulation resistance ≥1000mΩ
Impact 980 m/s2 11ms Atmospheric pressure 101.3KPa-1.33Pa
Withstand voltage 800 V Mechanical life 500 times

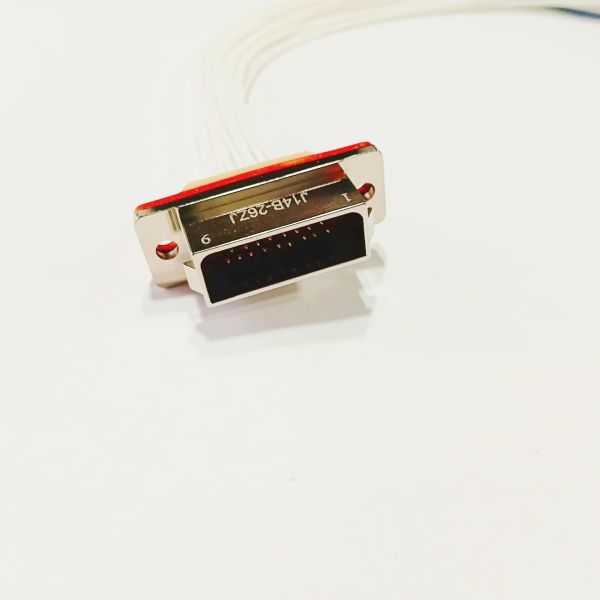

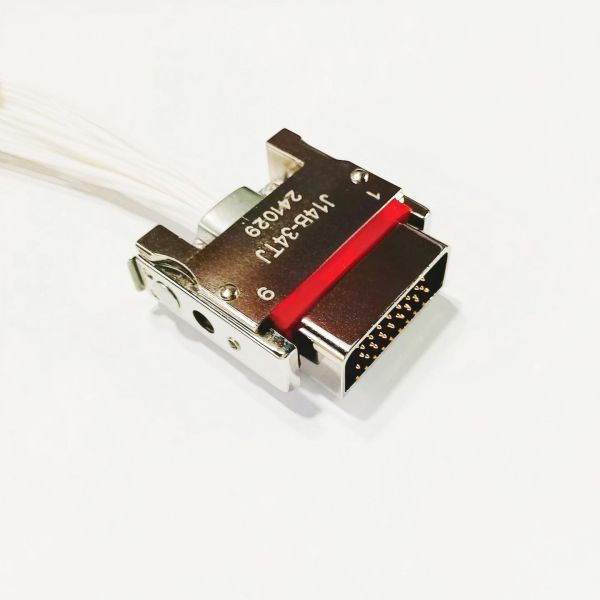

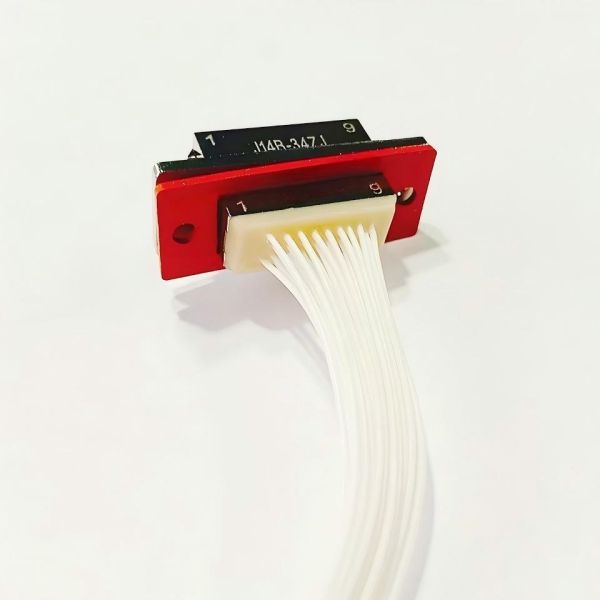

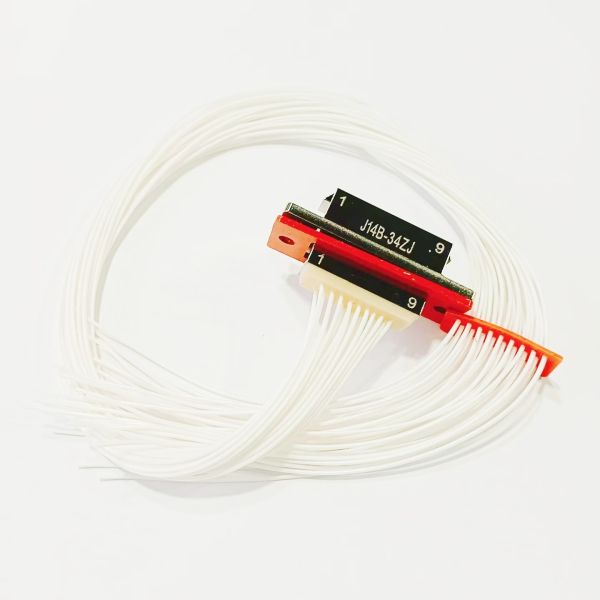

Physical product display

J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ

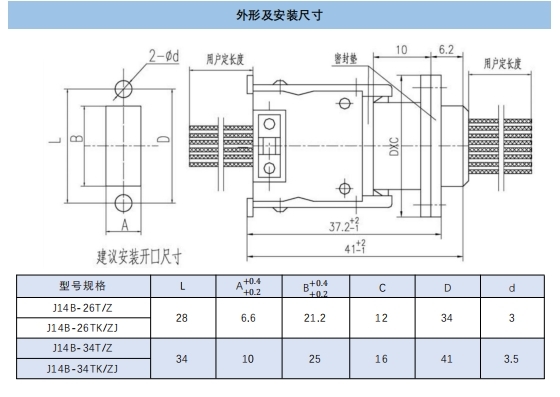

External dimensions of the product

J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ

Related product recommendations

J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ

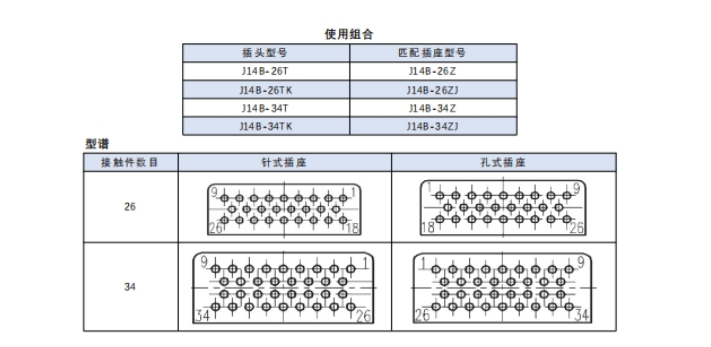

Product selection reference

J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ

Display of Strength
Production Plant Area
Machining production workshop

J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ

Precision Assembly Production Workshop

J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ

Glass-to-metal sealed production workshop

J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ

Obtained Certification Certificate

J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ

Customer visit

J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ

Product packaging

J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ

Packaging and Shipping

  • Standard export carton J14B Rectangular Electrical Connectors Micro Plug Jack Connector 2A J14B-34ZJ
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
