Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Specifications
Brand Name :
ZSX
Model Number :
SMA-KFKG
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Female To Female SMA Adapter
Gender :
Female to female
Boday Material :
Stainless steel
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.3
Description
Flange Female To Female SMA Adapter 4 Holes Stainless Steel Adapters DC-18G

SMA-KFKG SMA Female To Female 4 Holes Flange Adapter DC-18G Stainless Steel

RF Adapters are passive components used in signal transmission systems for RF (Radio Frequency, typically 3 kHz to 300 GHz frequency band). Common types include SMA, N, BNC, TNC, MCX, UHF, SMP, 2.4mm, and 3.5mm. The primary function is to enable reliable connections and signal conversion between different types of RF interfaces, impedances, or transmission media, ensuring low loss, minimal reflection, and high stability of RF signals during transmission. Widely used in communication, radar, test and measurement, aerospace, medical equipment, and other fields.

Product Performance Specifications
Product Model SMA-KFKG Contact Resistance Center contact: ≤3mΩ
Outer contact: ≤2mΩ
Characteristic Impedance 50 ohm Body Material Gold-plated brass
Frequency Range DC-18GHz Insulator PTFE
Voltage Standing Wave Ratio ≤1.2 Central Conductor Gold-plated beryllium copper
Medium Pressure Resistance 1000V RMS Temperature Range -45℃ to +125℃
Dielectric Constant ≥5000MΩ Durability ≥500 Cycles

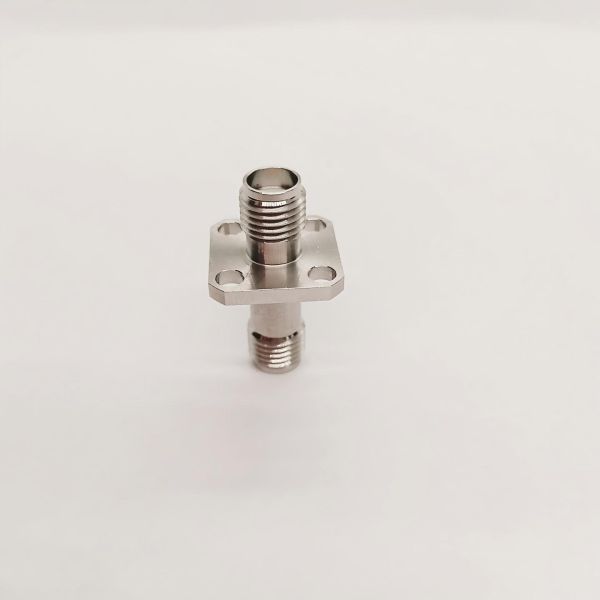

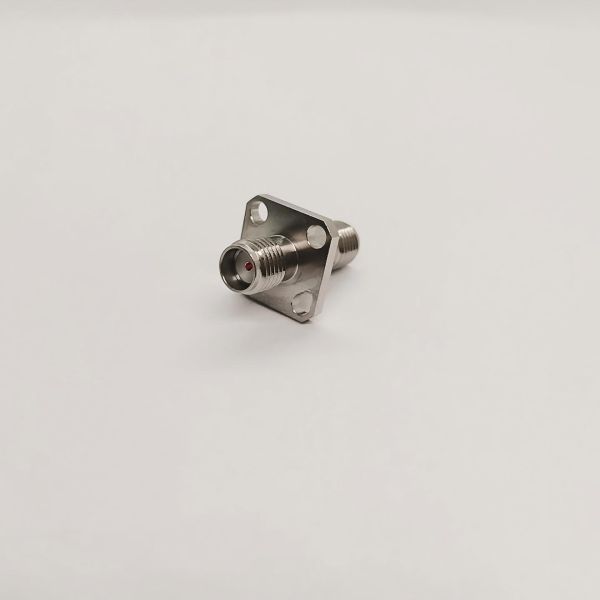

Product Images
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter

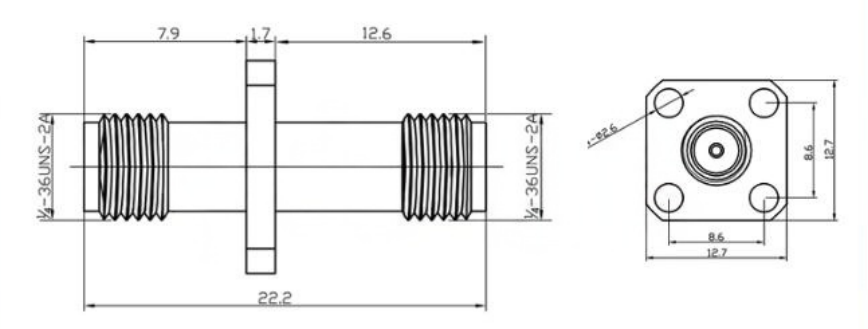

Product Dimensions
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Related Products
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Company Overview
Office Area
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Production Facilities
Machining Production Workshop
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Precision Assembly Production Workshop
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Glass-to-Metal Sealed Production Workshop
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Certifications
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Customer Visits
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Product Packaging
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
Packaging and Shipping
Stainless Steel Flange Adapter SMA Female To Female 4 Holes DC-18GHz RF Adapter
  • Standard export carton packaging
  • Custom specifications available including logo and other requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantities, ODM requirements, etc.)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales experience in Aeronautics and Astronautics and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM (Original Design Manufacturing).
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive for orders under 200 pieces.
Q: Which logistics company does your company ship through?
A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also offer air and sea freight options.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
