T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
Specifications
Brand Name :
ZSX
Model Number :
BNC-KJKW
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$1.18-1.58 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Male to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.3
Description
T Joint RF Adapter 4GHz BNC Male To BNC Female Adapter BNC-KJKW
Product Overview

The RF Adapter BNC-KJKW is a T-Joint type adapter featuring BNC Male to BNC Female connections. RF adapters are passive components used in signal transmission systems for RF (Radio Frequency, typically 3 kHz to 300 GHz frequency band). They provide reliable connections and signal conversion between different types of RF interfaces, impedances, or transmission media, ensuring low loss, minimal reflection, and high stability of RF signals during transmission.

Technical Specifications
Product Model BNC-KJKW Contact Resistance Center contact: ≤1.5mΩ
Outer contact: ≤1mΩ
Characteristic Impedance 50 ohm Body Material Gold-plated brass
Frequency Range DC-4GHz Insulator PTFE
Voltage Standing Wave Ratio ≤1.3 Central Conductor Gold-plated beryllium copper
Medium Pressure Resistance ≥1500V RMS, 50Hz, at sea level Temperature Range -45℃~+125℃
Dielectric Constant ≥5000MΩ Durability ≥500 Cycles

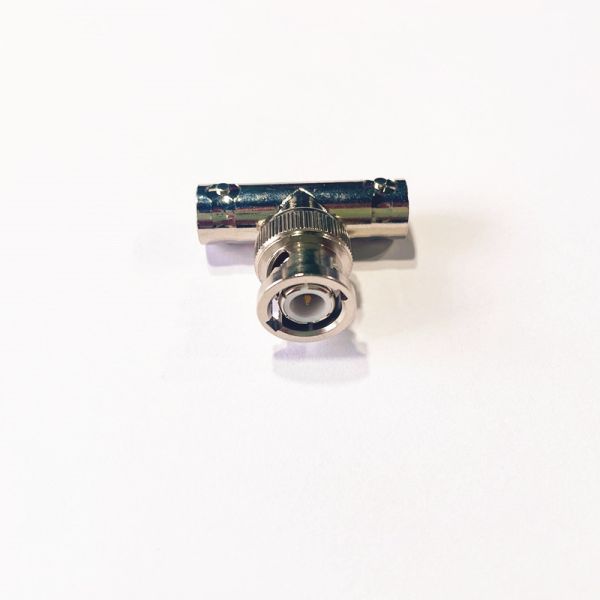

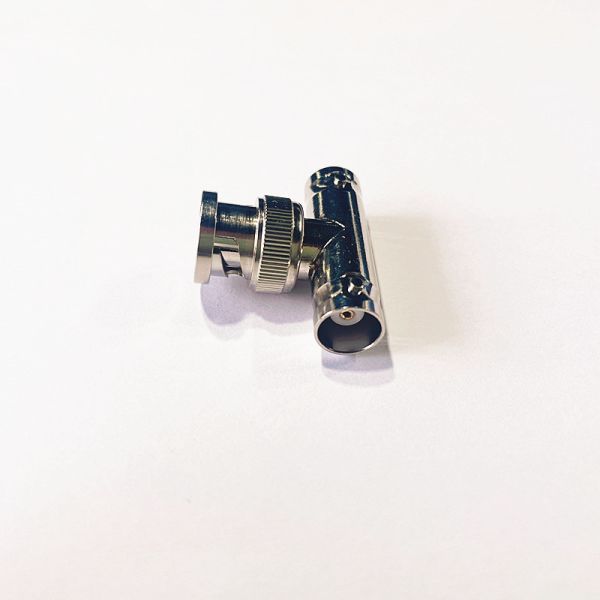

Product Images
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3

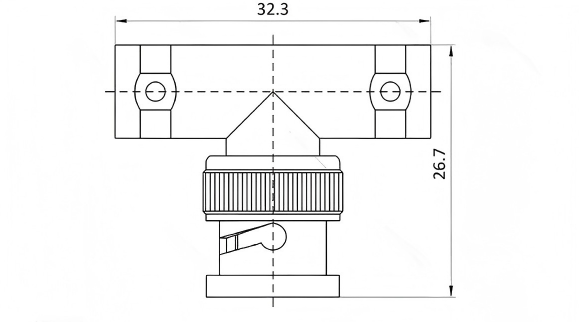

Product Dimensions
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
Related Products
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
Company Overview
Office Area
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
Production Facilities
Machining Production Workshop
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
Precision Assembly Production Workshop
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
Glass-to-Metal Sealed Production Workshop
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
Certifications
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
Customer Visits
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
Packaging & Shipping
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
T-Joint RF Adapter BNC Male to Female with DC-4GHz Range Gold-Plated Brass and VSWR ≤1.3
  • Standard export carton packaging
  • Customized specifications available (logo, etc.) according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantities, ODM requirements, etc.)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales experience in Aeronautics, Astronautics and commercial RF microwave transmission components.

Q: What are the main products of your company?

A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM (Original Design Manufacturing).

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is higher for orders under 200 pieces.

Q: Which logistics company does your company ship through?

A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also provide air and sea freight options.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q: What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).

Q: How long is your warranty?

A: The warranty period is three months.
