Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Specifications
Brand Name :
ZSX
Model Number :
N-KK
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
$1.2 --$1.6 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Radio Frequency Adapter
Gender :
Female to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.2
Description
Brass Plated Radio Frequency Adapter DC-6GHz N Type Female To Female Adapter With Ternary Alloy
Product Overview

RF Adapter N Type Female to Female Adapter Brass Plated With Ternary Alloy. RF Adapters are passive components used in signal transmission systems for RF (Radio Frequency, typically 3 KHz to 300 GHz frequency band). They provide reliable connections and signal conversion between different types of RF interfaces, impedances, or transmission media, ensuring low loss, minimal reflection, and high stability of RF signals during transmission. Widely used in communication, radar, test and measurement, aerospace, and medical equipment fields.

Product Performance Specifications
Product ModelN-KK
Characteristic Impedance50 ohm
Frequency RangeDC-6GHz
Voltage Standing Wave Ratio≤1.2
Medium Pressure Resistance≥1500V RMS, 50Hz, at sea level
Dielectric Constant≥5000MΩ
Contact ResistanceCenter contact: ≤1.5mΩ, Outer contact: ≤1mΩ
Body MaterialGold-plated brass
InsulatorPTFE
Central ConductorGold-plated beryllium copper
Temperature Range-45℃ to +125℃
Durability≥500 Cycles

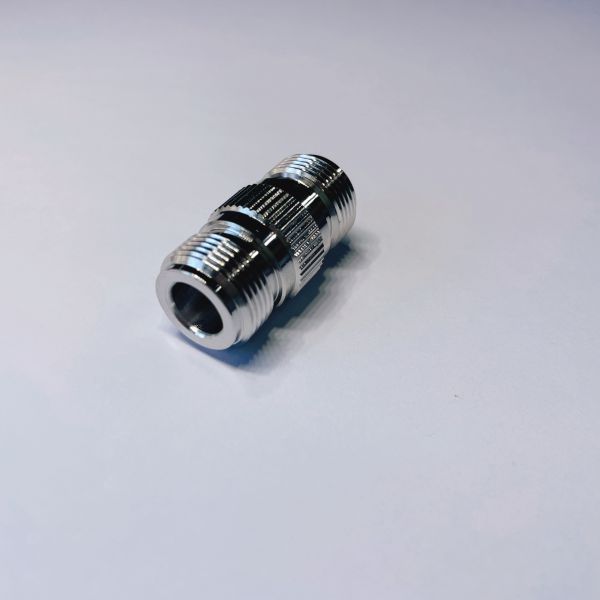

Product Images
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator

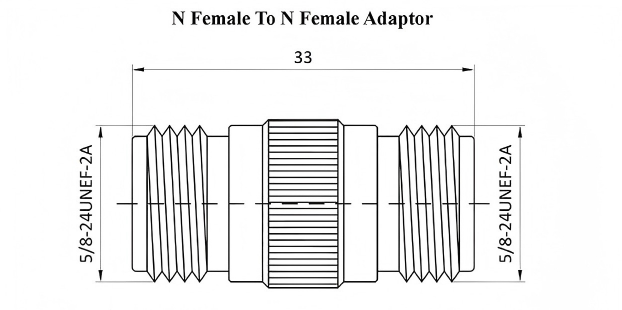

Product Dimensions
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator

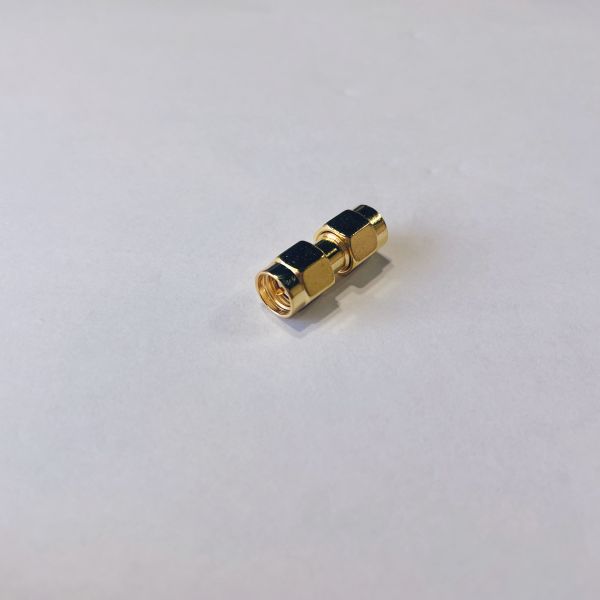

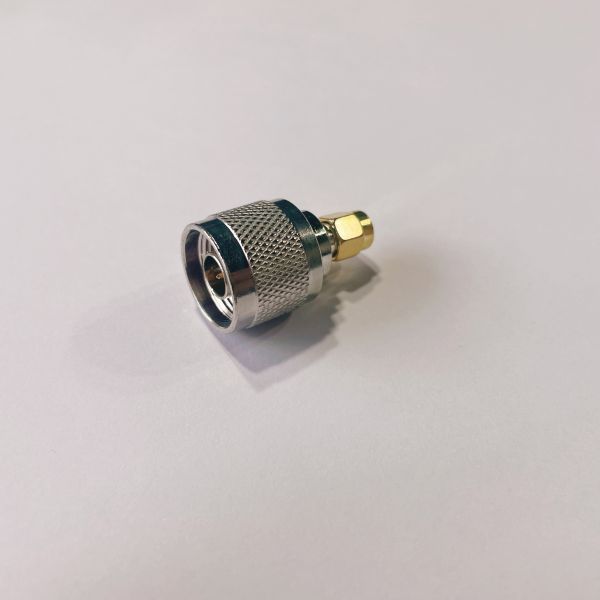

Related Products
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Manufacturing Capabilities
Production Plant Area
Machining Production Workshop
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Precision Assembly Production Workshop
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Glass-to-Metal Sealed Production Workshop
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Certifications
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Customer Engagement
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Packaging & Shipping
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
Brass Plated RF Adapter N Type Female to Female DC-6GHz Gold-Plated PTFE Insulator
  • Standard export carton packaging
  • Customized specifications available (logo, etc.) according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantities and ODM requirements)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products include RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM (Original Design Manufacturing).
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. Pricing is higher for orders under 200 pieces.
Q: Which logistics company does your company ship through?
A: We partner with international logistics companies including DHL, UPS, FedEx, TNT to ensure fast delivery with competitive shipping costs. Air and sea freight options also available.
Q: How long does it usually take to receive the goods?
A: Typically 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, and Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
