50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range
Specifications
Brand Name :
ZSX
Model Number :
N/SMA-KJ
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
$1.18 --$1.65(Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Connector N/SMA-KJ
Gender :
Male/female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤1.2
Description
RF Connector N/SMA-KJ N Female to SMA Male Adapter

N/SMA-KJ is a 50Ω straight RF adapter that connects N female to SMA male. It features a brass body with nickel-plated housing and gold-plated contacts, delivering low insertion loss, excellent VSWR, and stable signal transmission up to 11GHz. With reliable threaded coupling and durable construction, it ensures secure connection and long service life, widely used in communication systems, antennas, test equipment, telecom and various high-frequency RF applications.

Product Performance Details
Product model N/SMA-KJ Contact resistance SMA

Center contact:≤3mΩ

Outer contact:≤2mΩ
Characteristic impedance 50 ohm Body material SMA

Gold-plated brass
Frequency range DC-6GHz Body material N Nickel-plated brass
Voltage standing wave ratio

≤1.2

Central conductor

500 times
Medium pressure resistance

≥1000V RMS ,50Hz, at sea level

 SMA screw sleeve

5 A
Dielectric constant

≥5000MΩ

 Temperature range

-45℃~+125℃
Contact resistance N

Center contact:≤1mΩ

Outer contact:≤0.2mΩ

 Durability

≥500 Cycles

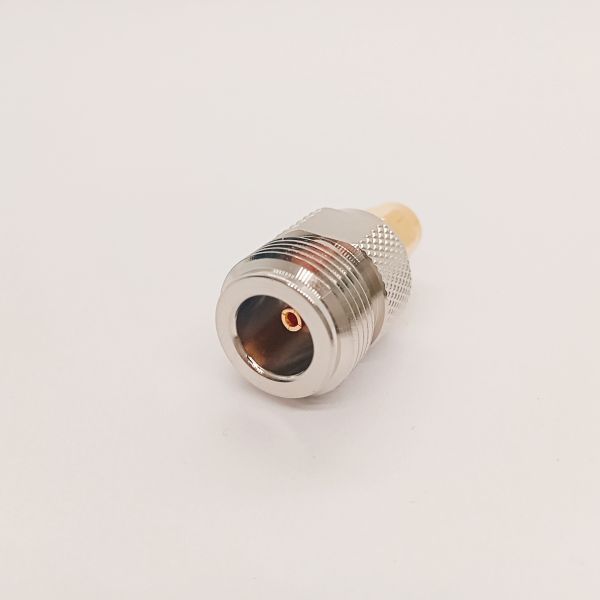

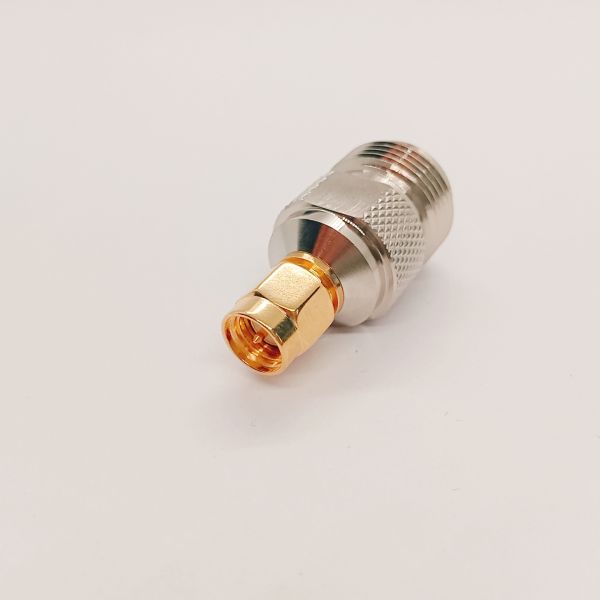

Product Show
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range 50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range

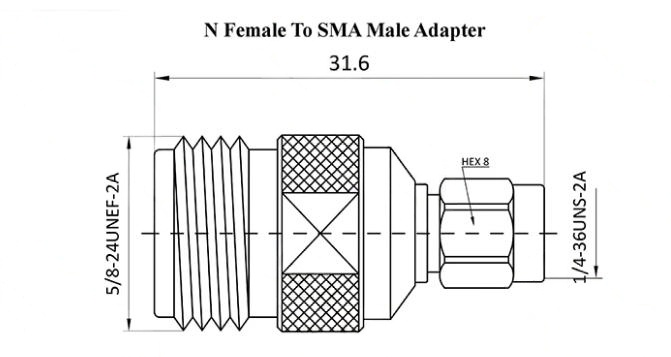

Product external dimensions
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range

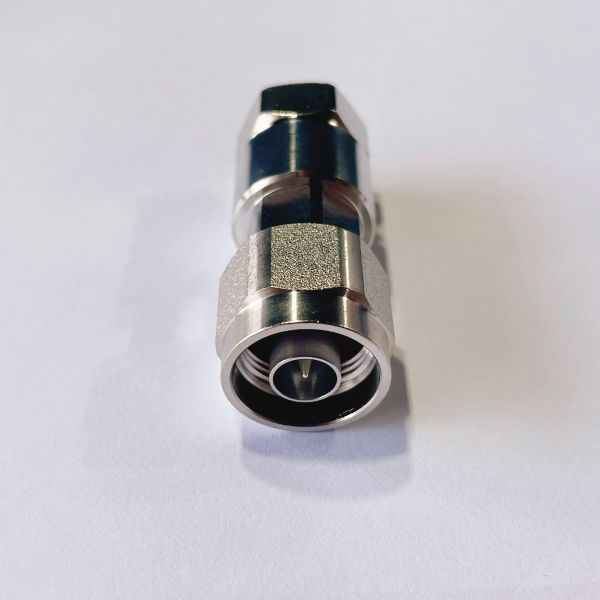

Related Product Recommendation
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range 50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range
Display of Strength

Production Plant Area
Machining production workshop
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range 50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range
Precision Assembly Production Workshop
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range 50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range
Obtained Certification Certificate
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range 50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range
Customer visit
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range 50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range
Product Packaging
50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range 50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range

Packaging And Shipping

  • Standard export carton 50 Ohm RF Connector Adapter N/SMA-KJ with Brass Body and DC-6GHz Frequency Range
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
