DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Specifications
Brand Name :
ZSX
Model Number :
DIN/N-KK
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$3.78--$4.54 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Female To Female Adapter
Gender :
Female to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description
DC-6GHz RF Female To Female Adapter DIN/L29/(7/16) Female To N Female Adapter
RF Adapters are passive components used in RF (Radio Frequency, typically 3 kHz to 300 GHz frequency band) signal transmission systems. Common types include SMA, N, BNC, TNC, MCX, UHF, SMP, 2.4mm, and 3.5mm. The primary function is to enable reliable connections and signal conversion between different types of RF interfaces, impedances, or transmission media, ensuring low loss, minimal reflection, and high stability of RF signals during transmission. Widely used in communication, radar, test and measurement, aerospace, medical equipment, and other fields.
Product Performance Details
Product Model DIN/N-KK
Contact Resistance Center contact: ≤1.5mΩ (DIN), 0.4mΩ (N)
Outer contact: ≤1mΩ (DIN), 0.2mΩ (N)
Characteristic Impedance 50 ohm
Body Material Gold-plated brass
Frequency Range DC-6GHz
Insulator PTFE
Voltage Standing Wave Ratio ≤1.25
Central Conductor Gold-plated beryllium copper
Medium Pressure Resistance ≥2500V RMS, 50Hz, at sea level
Temperature Range -45℃ to +125℃
Dielectric Constant ≥5000MΩ
Durability ≥500 Cycles

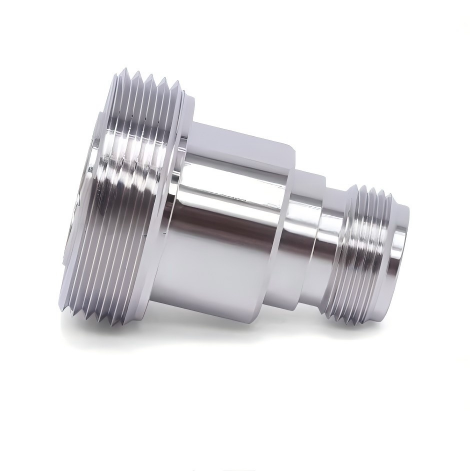

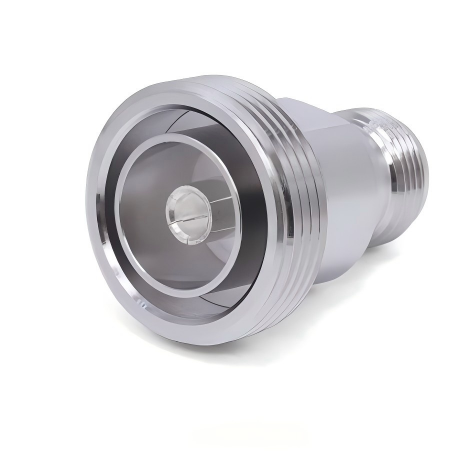

Physical Product Display
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter

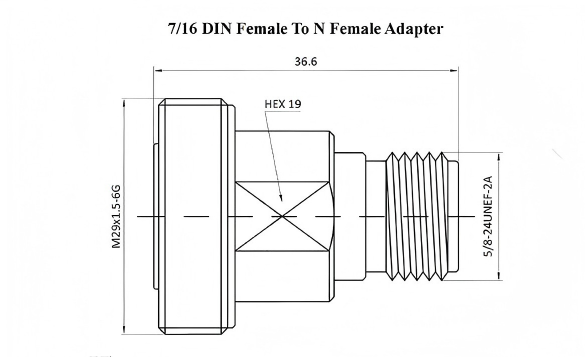

Product External Dimensions
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Related Product Recommendations
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Display of Strength
Office Area
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Production Plant Area
Machining Production Workshop
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Precision Assembly Production Workshop
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Glass-to-Metal Sealed Production Workshop
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Obtained Certification Certificates
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Customer Visit
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Product Packaging
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Packaging and Shipping
DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
  • Standard export carton
  • Customized specifications available (logo, etc.) according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity, ODM requirements, etc.)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in Aeronautics and Astronautics and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM (Original Design Manufacturing).
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. Pricing is higher for orders under 200 pieces.
Q: Which logistics company does your company ship through?
A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure our customers receive their goods quickly with the lowest shipping cost. We also offer air and sea freight options.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
