SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
Specifications
Brand Name :
ZSX
Model Number :
SMA-JFD275
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$1.8-$2.3 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
SMA Connector
Gender :
Male
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description
RF Coaxial Connector SMA-JFD275 With 4-Hole Flange SMA Male Plug For PCB & Panel Mount
Product Overview
The SMA-JFD275 RF Coaxial Connector features a precision SMA male interface with a 4-hole flange design, allowing secure panel fixation and reliable PCB mounting. Designed for high-frequency applications, it ensures low signal loss, stable impedance, and consistent signal transmission. Its rugged construction delivers long-term durability, making it ideal for antennas, RF modules, and wireless communication systems requiring stable and precise connections.
Product Performance Specifications
Product Model SMA-JFD275
Characteristic Impedance 50 ohm
Frequency Range DC-6GHz
Voltage Standing Wave Ratio ≤1.25
Medium Pressure Resistance ≥1000V RMS, 50Hz, at sea level
Contact Resistance Center contact: ≤3mΩ
Outer contact: ≤2mΩ
Dielectric Constant ≥5000MΩ
Body Material Gold-plated brass
Central Conductor Gold-plated brass
Insulator Material PTFE
Durability ≥500 Cycles
Temperature Range -45℃ to +125℃

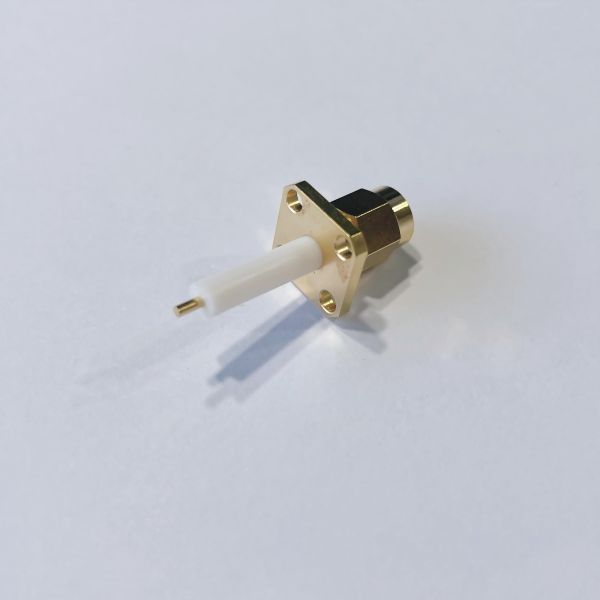

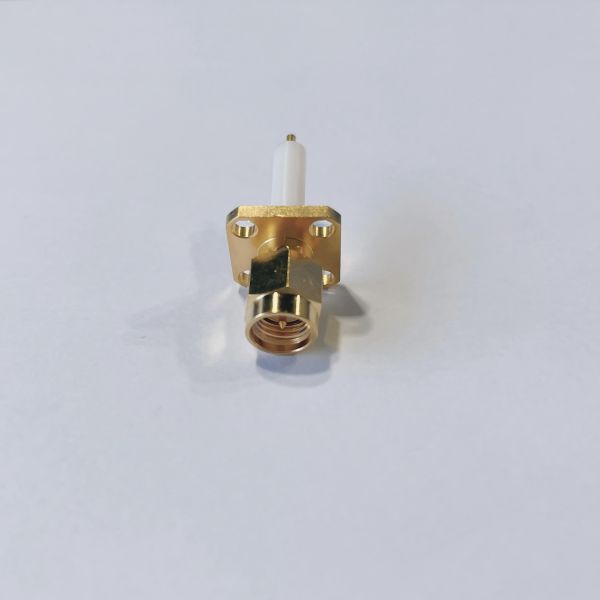

Product Images
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications

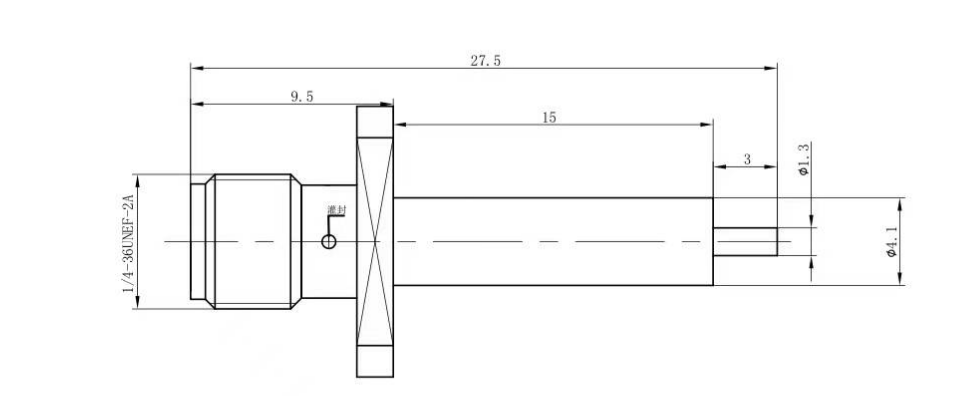

Product Dimensions
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
Related Products
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
Manufacturing Capabilities
Machining Production Workshop
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
Precision Assembly Production Workshop
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
Glass-to-Metal Sealed Production Workshop
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
Quality Certifications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
Customer Engagement
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
Product Packaging
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
Packaging and Shipping
SMA-JFD275 RF Coaxial Connector with 4-Hole Flange and Gold-plated Brass for DC-6GHz Applications
  • Standard export carton
  • Customized specifications including logo and other requirements available
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Does your company accept customized products?
We accept ODM.
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. The price is more expensive under 200 pieces.
Which logistics company does your company ship through?
Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics options.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
