SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
Specifications
Brand Name :
ZSX
Model Number :
SMA-C-J-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$0.50-$0.69(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
SMA Crimp Connector
Gender :
Male
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable

SMA-C-J-1.5 is a 50Ω straight crimp-type SMA male RF connector designed for 1.5mm diameter flexible coaxial cables including RG174, RG316 and LMR100A. Built with high-quality brass body and gold-plated contacts, it features low VSWR, low insertion loss and excellent signal stability operating from DC to 6GHz.

The window-style design enables easy and reliable soldering, while the robust crimp structure ensures strong mechanical strength, vibration resistance and long-term durability in harsh environments. With high performance, reliable connectivity and easy assembly, this connector is widely used in 5G communications, automotive electronics, IoT devices, industrial equipment and wireless systems.

Product Performance Specifications
Product model SMA-C-J-1.5 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.35 Insulator material PTFE
Medium pressure resistance ≥1000V RMS, 50Hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact: ≤3mΩ
Outer contact: ≤2mΩ		 Temperature range -45℃ to +125℃

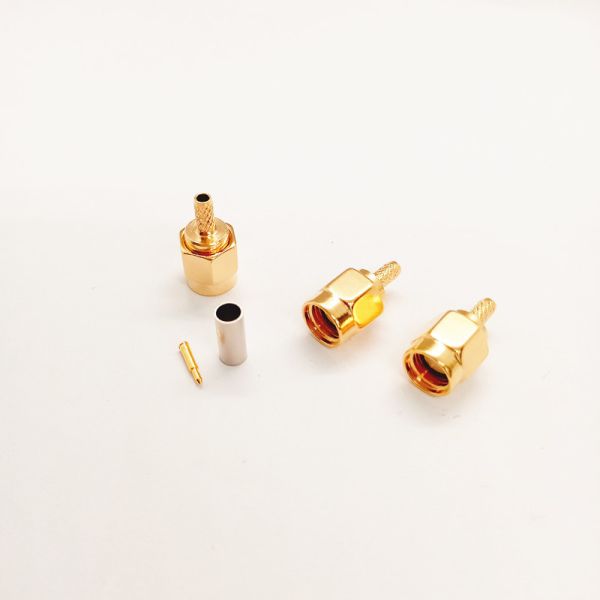

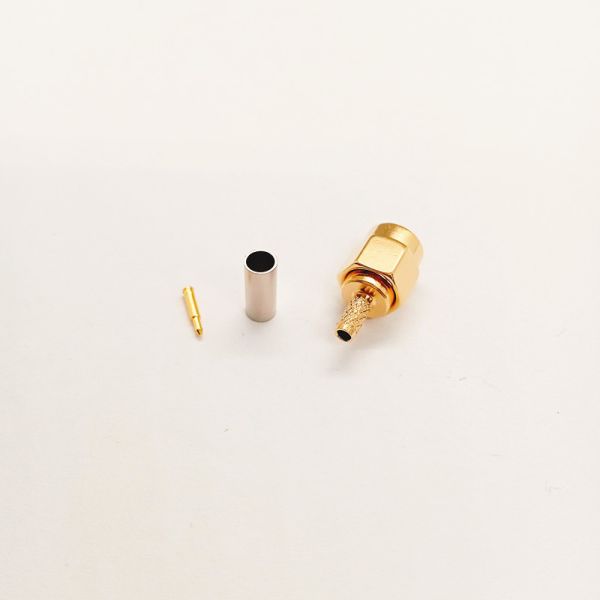

Product Images
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable

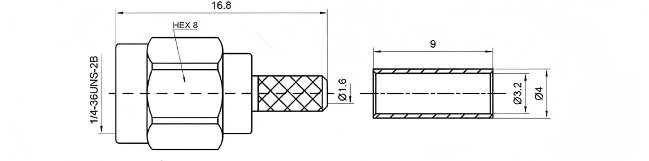

Product Dimensions
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
Related Products
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
Manufacturing Capabilities
Production Facilities
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
Precision Assembly Production
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
Glass-to-Metal Sealed Production
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
Quality Certifications
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
Customer Engagement
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
Packaging & Shipping
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
  • Standard export carton packaging
  • Customized specifications including logo and other requirements available
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Does your company accept customized products?
We accept ODM (Original Design Manufacturing).
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. The price is more expensive for orders under 200 pieces.
Which logistics company does your company ship through?
Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also provide air and sea freight options.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
