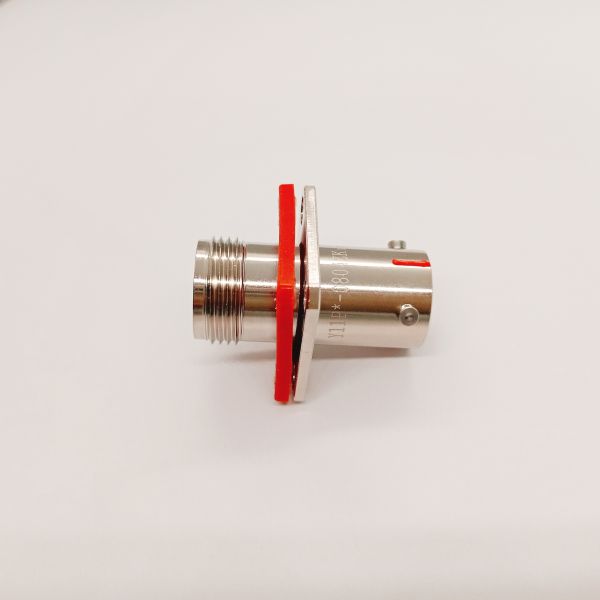

Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Specifications
Name :
Y11 Series Connector
Insulator material :
Thermosetting plastics
Working temperature :
-55℃~+125℃
Brand Name :
ZSX
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
T/T,D/P,Alipay
Packaging Details :
Carton packaging
Gender :
Female
Boday Material :
Aluminum alloy
Withstand voltage :
1500V
Model Number :
Y11*P-0804TK5
Certification :
ISO9001
Price :
$8.60-$11.40 (Depending on the quantity)
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Description
Y11*P-0804ZK10 4 Pin Bayonet Circular Socket Aviation Connector

Y11*P-0804ZK10 is a Y11 series 4-pin bayonet circular aviation socket with shielded nickel-plated housing, featuring IP65 waterproof and dustproof, excellent EMI shielding, wide temperature range from -55°C to +125°C, vibration and shock resistance, and over 500 mating cycles. Adopting high-grade standard design, it delivers stable signal and power transmission, ideal for aerospace, industrial automation and marine electronic equipment.

Product display
Product Performance Details
Product model Y11*P-0804ZK10 Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500V
Working temperature -55℃ ~ +125℃ Working Current 10A
Physical product display
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Product external dimensions
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector

Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector

Related product recommendations
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Display of Strength
Production Plant Area
Machining production workshop
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Precision Assembly Production Workshop
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Glass-to-metal sealed production workshop
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Obtained Certification Certificate
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Customer visit
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Product packaging
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
Packaging and Shipping
Y11 Series 4 Pin Shielded IP65 Waterproof Bayonet Aviation Circular Connector
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
