Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Specifications
Insulator material :
PPS
Withstand voltage :
1500V
Gender :
Male
Name :
Y3A Series Connector
Place of Origin :
China
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Boday Material :
Aluminum alloy
Brand Name :
ZSX
Certification :
ISO9001
Working temperature :
-55℃~+125℃
MOQ :
10 pcs
Supply Ability :
1000000Pcs/Year
Model Number :
Y3AII-1832ZK10
Price :
$16.50-$21.80 (Depending on the quantity)
Payment Terms :
T/T,D/P,Alipay
Description
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector

Y3A II-1832ZK10 is a 32-core high-density bayonet-locking circular socket. Adopting flange panel mounting and integral sealing structure, it delivers excellent dustproof and waterproof performance. Made of high-strength alloy housing and gold-plated contacts, this socket features low contact resistance, outstanding vibration and shock resistance, and stable electrical performance. It supports quick mating and blind insertion, with a wide working temperature range and long service life. Widely applied in aerospace, industrial control, communication and other harsh-environment electronic systems for reliable signal and power transmission.

Product display
Product Performance Details
Product model Y3AII-1832ZK10 Contact piece Gold plating of copper alloy
Shell material Aluminum Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500V
Working temperature -55℃ ~ +125℃ Working Current 5A

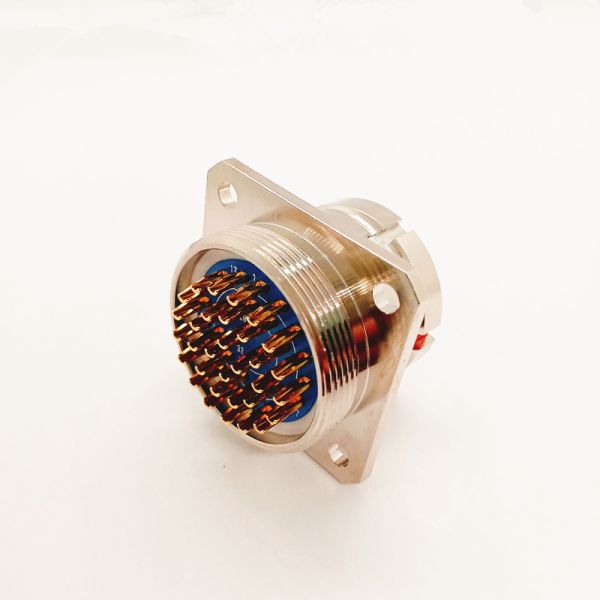

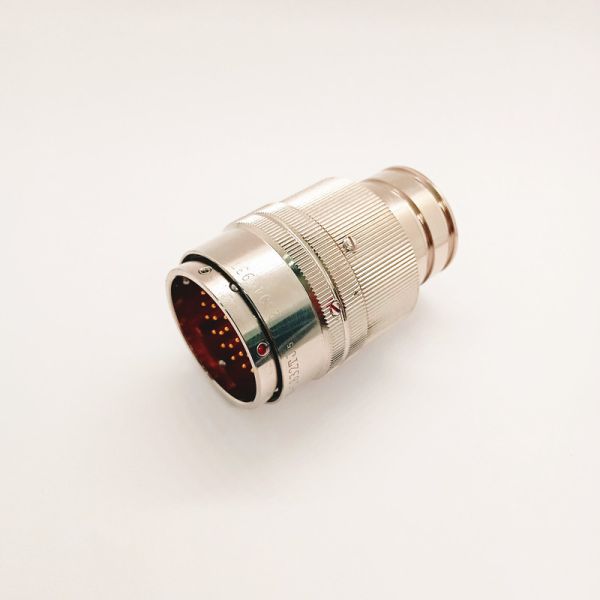

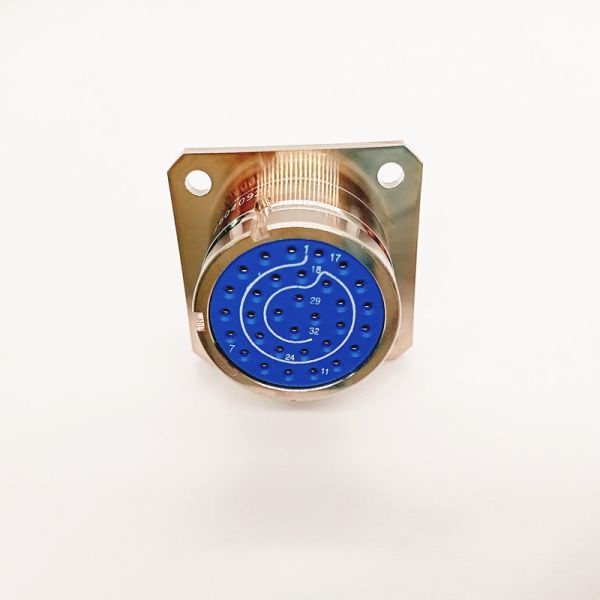

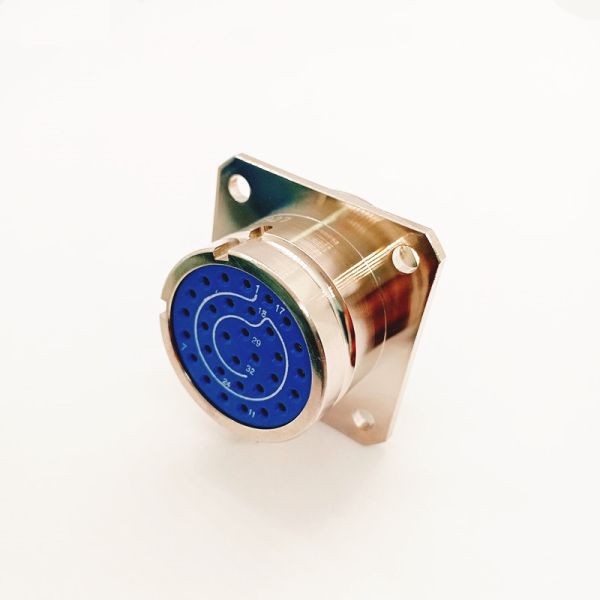

Physical product display
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector

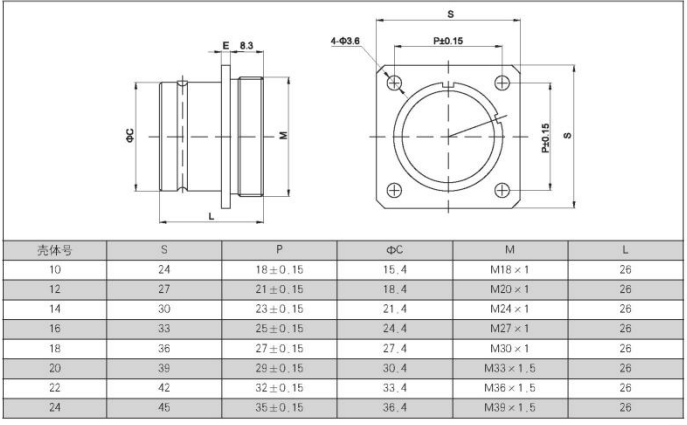

Product external dimensions
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector

Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector



Related product recommendations
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Display of Strength
Production Plant Area
Machining production workshop
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Precision Assembly Production Workshop
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Glass-to-metal sealed production workshop
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Obtained Certification Certificate
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Customer visit
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Product packaging
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Packaging and Shipping
Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
