Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Specifications
Brand Name :
ZSX
Model Number :
Q14J5P
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$1.65-$2.20(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Q14 series Connector
Gender :
Male
Boday Material :
Aluminum alloy
Insulator material :
Bakelite
Working temperature :
-55℃~+100℃
Withstand voltage :
1500V
Description
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Plug Male Connector

The Q14J5P is a 5-pin male bayonet circular connector with metal shielding shell, rated at 3A/500V. It features IP54 protection, anti-misplug design, wide temperature range and strong vibration resistance. Widely used for signal and power connection in industrial instruments, vehicle electronics, communication and medical equipment. Matching socket Q14K5P and custom cable assemblies are available.

Product Specifications
Product Model Q14J5P Contact Piece Gold plating of copper alloy
Shell Material Aluminum alloy Insulation Resistance ≥5000MΩ
Vibration Frequency 10 - 2000 Hz, 150m/s² Working Voltage 500V
Insulator Thermosetting plastics Mechanical Life 500 times
Shock 490m/s² Relative Humidity When the temperature is 40±2℃, it is 93%
Collision Acceleration 392m/s² Withstand Voltage 1000V
Working Temperature -55℃ ~ +100℃ Working Current 2A

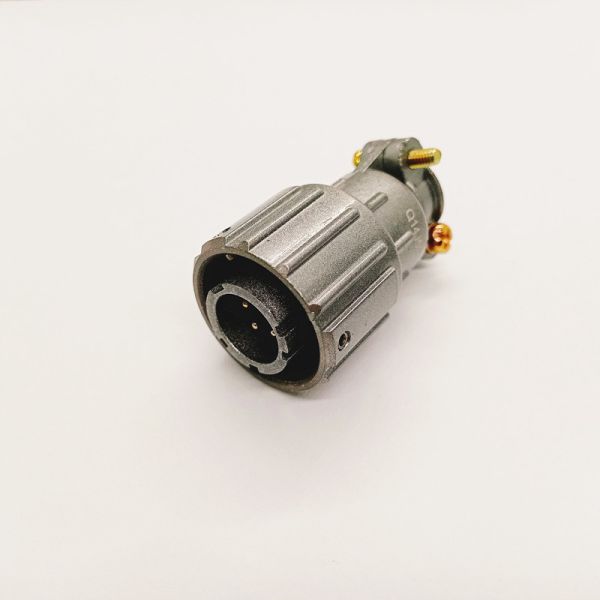

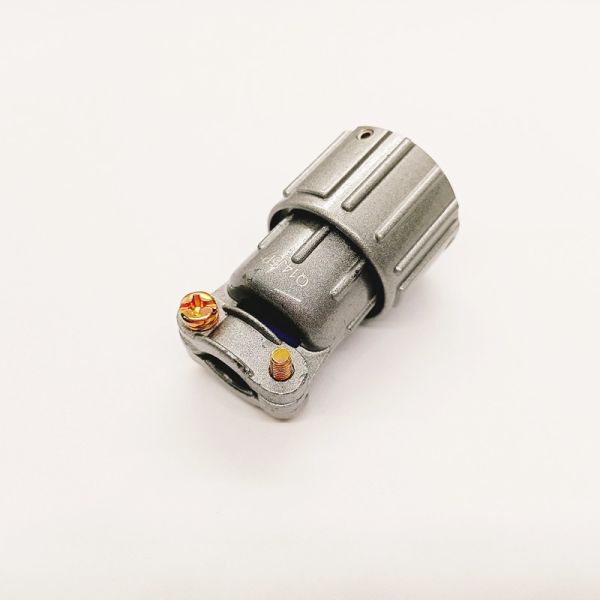

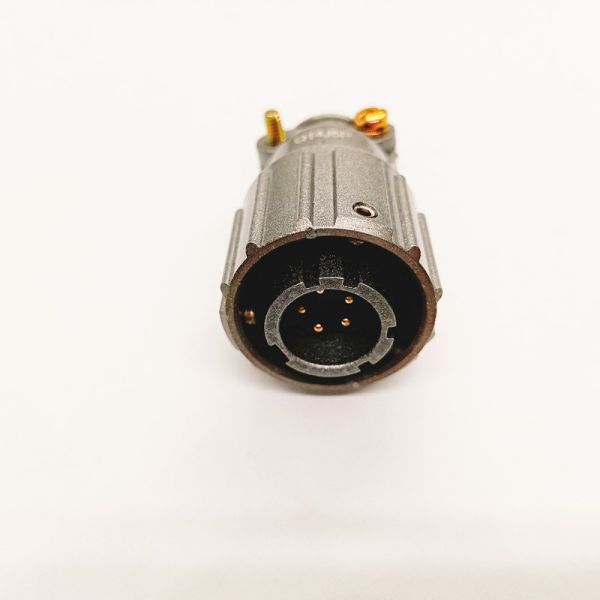

Product Display
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell

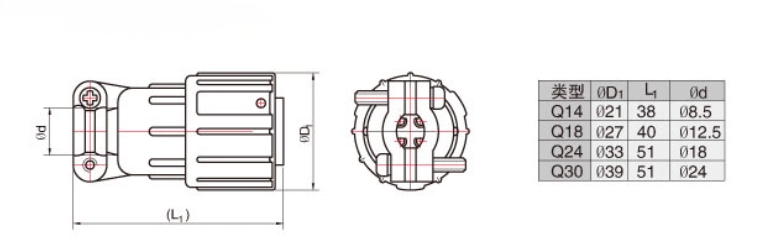

Product Dimensions
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Related Products
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Manufacturing Capabilities
Machining Production Workshop
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Precision Assembly Production Workshop
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Glass-to-Metal Sealed Production Workshop
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Certifications
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Customer Visits
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Packaging & Shipping
Product Packaging
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
Shipping Methods
Q14 Series Bayonet Mini-circular Connector Q14J5P Aviation Plug 5 Pin Male Waterproof Connector with Aluminum Alloy Shell
  • Standard export carton
  • Customized specifications available (logo, etc.) according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantities and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Does your company accept customized products?
We accept ODM.
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. The price is more expensive under 200 pieces.
Which logistics company does your company ship through?
Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
