Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Specifications
Model Number :
Y11P*-1007TJ5
MOQ :
10 pcs
Delivery Time :
5-8 Days
Withstand voltage :
1500V
Price :
$10.20-$13.60 (Depending on the quantity)
Boday Material :
Aluminum alloy
Certification :
ISO9001
Payment Terms :
T/T,D/P,Alipay
Gender :
Male
Working temperature :
-55℃~+125℃
Insulator material :
Thermosetting plastics
Supply Ability :
1000000Pcs/Year
Name :
Y11 Series Connector
Brand Name :
ZSX
Packaging Details :
Carton packaging
Place of Origin :
China
Description
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell

Y11P*-1007TJ5 belongs to Y11P series bayonet circular aviation connector. It is a 7 pin straight plug with type 5 cable strain relief tail for cable assembly. Designed with internal bayonet quick lock structure it supports fast mating and unmating operation. Nickel plated aluminum alloy shell provides excellent shielding performance against EMI and RFI interference. Gold plated copper alloy contacts deliver low contact resistance and stable signal transmission. Silicone rubber sealing components realize reliable dustproof and moisture resistant performance for harsh working conditions. This solder termination plug is widely used for industrial control test equipment communication device and aerospace related signal connection scenarios.



Product display
Product Performance Details
Product model Y11P*-1007TJ5 Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥3000MΩ
Vibration 10Hz~2000Hz 196m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500Vrms
Working temperature -55℃ ~ +125℃ Working Current 5A

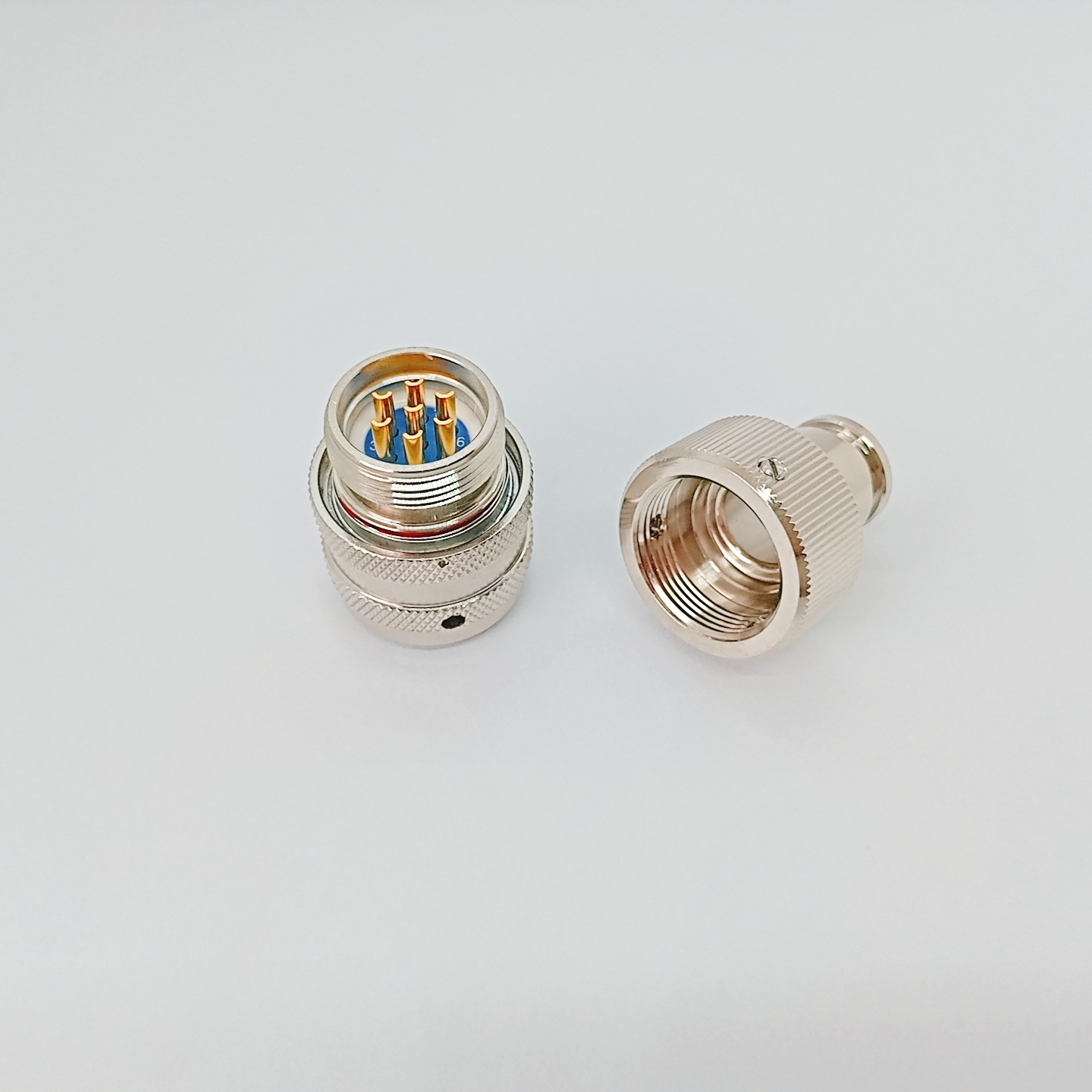

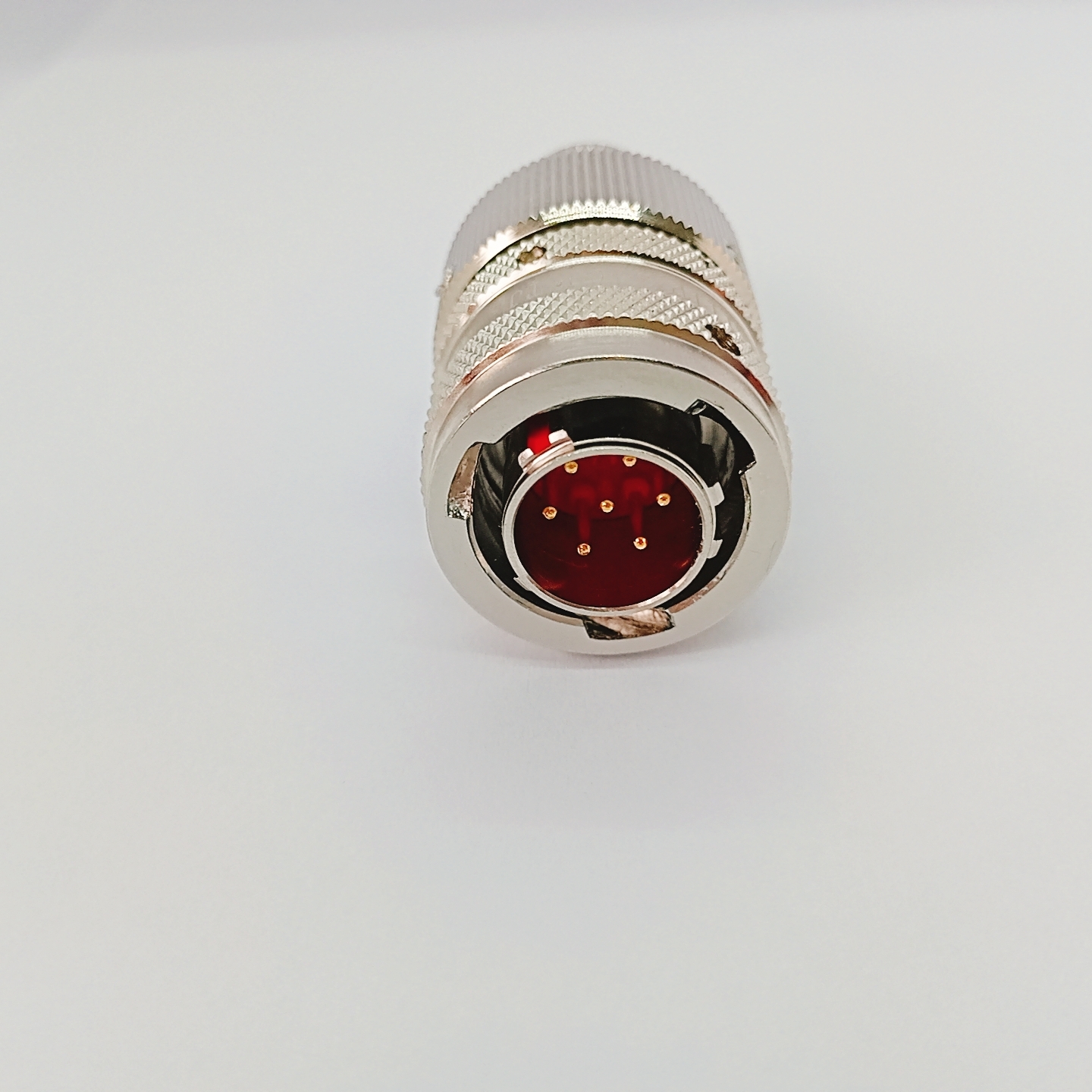

Physical product display
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Product external dimensions


Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell


Related product recommendations
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy ShellY11P 1207TJ5 7 contacts waterproof bayonet aviation plug with 12 shell nickel plated aluminum alloy housing. Solder termination EMI shielding for industrial aerospace signal connection.
Display of Strength
Production Plant Area
Machining production workshop
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Precision Assembly Production Workshop
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Glass-to-metal sealed production workshop
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Obtained Certification Certificate
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Customer visit
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Product packaging
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
Packaging and Shipping
Y11P*-1007TJ5 7 Contacts Bayonet Circular Aviation Plug Solder Type Shielded Aluminum Alloy Shell
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
