Specifications
Brand Name :
ZSX
Model Number :
Y11*P-1832ZK10
Working temperature :
-55℃~+125℃
Price :
$14.80-$19.80 (Depending on the quantity)
Gender :
Female
Delivery Time :
5-8 Days
Certification :
ISO9001
Supply Ability :
1000000Pcs/Year
Boday Material :
Aluminum alloy
Packaging Details :
Carton packaging
Insulator material :
Thermosetting plastics
Place of Origin :
China
Withstand voltage :
1500V
MOQ :
10 pcs
Name :
Y11 Series Connector
Payment Terms :
T/T,D/P,Western Union
Description
Circular Connector Y11P-1832ZK10 32Pin Crimp Type Bayonet Sealed Connector

Y11P-1832ZK10 is a high-density bayonet circular connector with 32 gold-plated crimp contacts. Featuring rugged aluminum alloy housing, excellent sealing and anti-vibration performance, it supports convenient wire assembly and ensures stable signal transmission between -55℃ and +125℃. Suitable for aerospace, vehicle and industrial harsh environments.

Product display
Product Performance Details
Product model Y11P-1832ZK10 Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500V
Working temperature -55℃ ~ +125℃ Working Current 10A

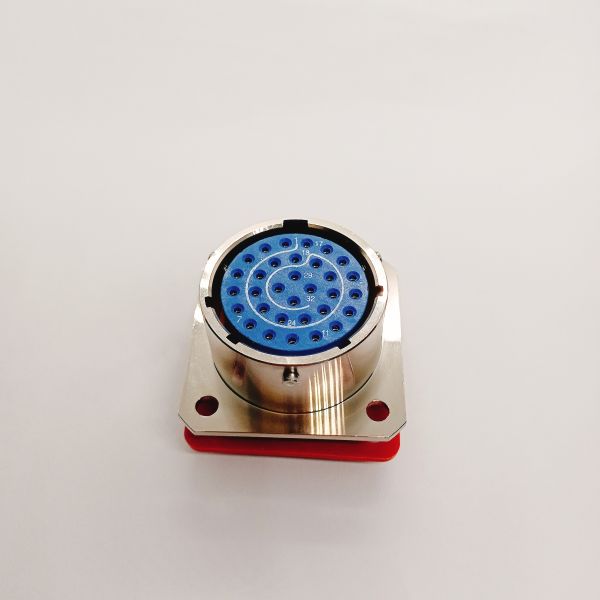

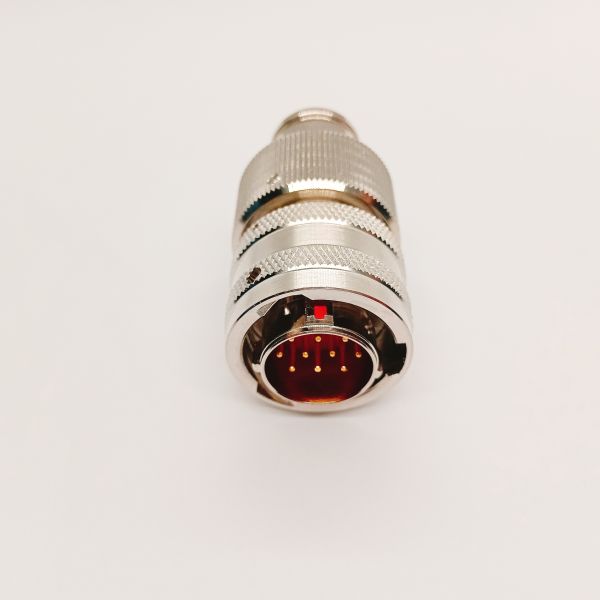

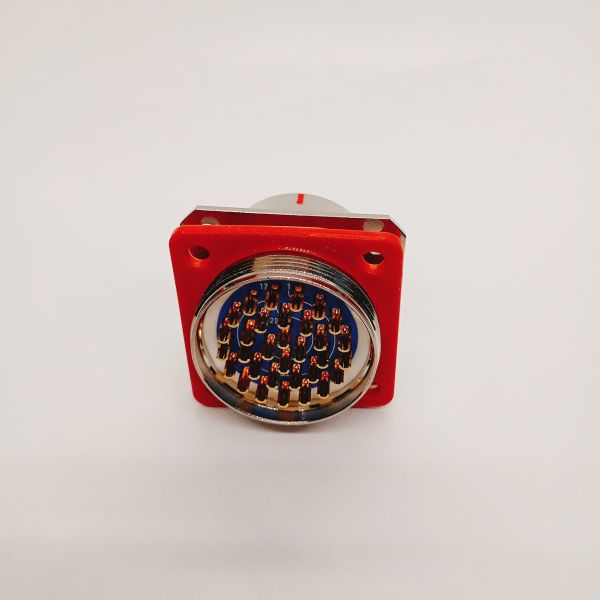

Physical product display
Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments
Product external dimensions
Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments

Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments

Related product recommendations
Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments
Display of Strength
Production Plant Area
Machining production workshop
Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments
Precision Assembly Production Workshop
Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments
Glass-to-metal sealed production workshop
Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments
Obtained Certification Certificate
Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments
Customer visit
Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments
Product packaging
Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments
Packaging and Shipping
Y11 Series 32Pin Circular Connector with Gold-Plated Contacts and Aluminum Alloy Housing for Harsh Environments
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
