Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Specifications
Price :
$18.50-$23.70(Depending on the quantity)
Delivery Time :
5-8 Days
Insulator material :
Thermosetting plastics
Supply Ability :
1000000Pcs/Year
Working temperature :
-55℃~+125℃
Gender :
Male
Boday Material :
Aluminum alloy
Withstand voltage :
1500V
Brand Name :
ZSX
Certification :
ISO9001
Place of Origin :
China
Payment Terms :
T/T,D/P,Alipay
MOQ :
10 pcs
Packaging Details :
Carton packaging
Name :
Y11 Series Connector
Model Number :
Y17P-12612ZK10
Description
Y17 Series Y17P-1612ZK10 12 Pin Bayonet Circular Connector PCB Mount Socket

Y17P-1612ZK10 is a high-quality shielded bayonet-type circular PCB receptacle for industrial electronic interconnection. It adopts 12 high-precision gold-plated contacts with excellent conductivity and oxidation resistance, rated at 5A current and 500V voltage. Built with reliable bayonet locking structure and electromagnetic shielding performance, this connector effectively resists vibration and external signal interference to maintain stable circuit connection. The standard ZK10 PCB straight welding structure features simple installation and compact layout. It perfectly matches Y17P-1612TJ plug, commonly used in industrial control cabinets, detection instruments, communication devices and aerospace electronic systems.

Product display
Product Performance Details
Product model Y17P-1612ZK10 Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500V
Working temperature -55℃ ~ +125℃ Working Current 10A

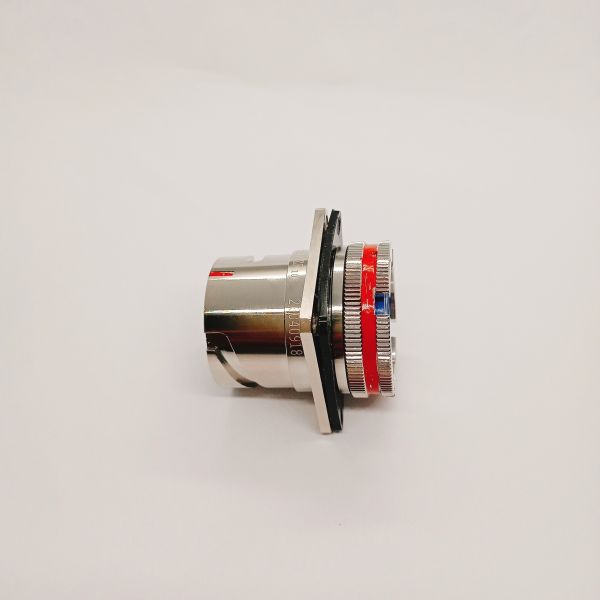

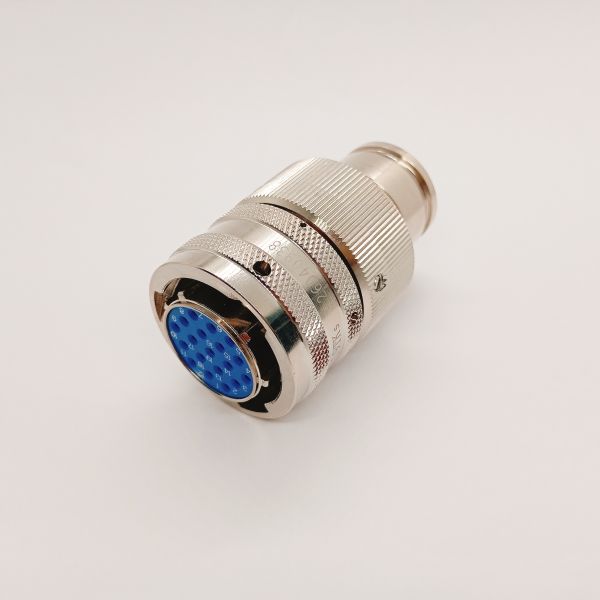

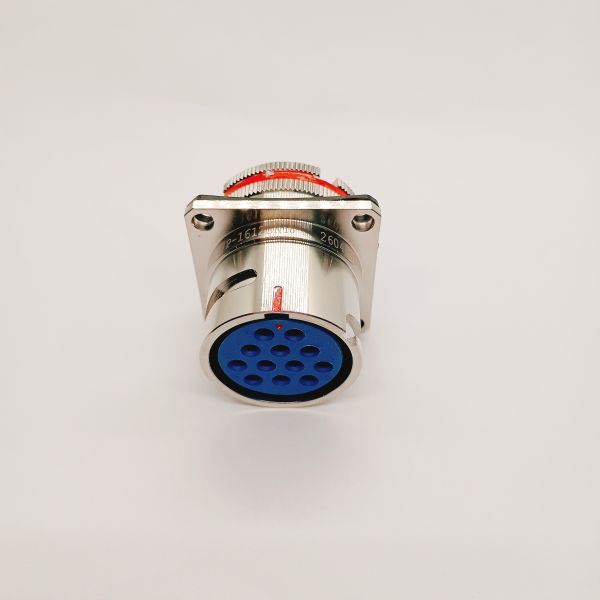

Physical product display
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket

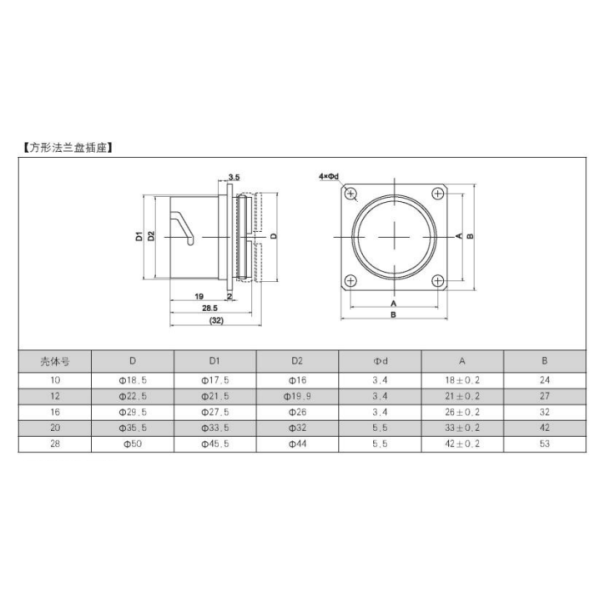

Product external dimensions
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket

Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket

Related product recommendations
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Display of Strength
Production Plant Area
Machining production workshop
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Precision Assembly Production Workshop
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Glass-to-metal sealed production workshop
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Obtained Certification Certificate
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Customer visit
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Product packaging
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
Packaging and Shipping
Y17 Series 12 Pin Bayonet Circular Connector with Gold-Plated Contacts and 1500V Withstand Voltage PCB Mount Socket
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
