SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications
SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications
SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications
SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications
SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications
SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications
SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications
SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications
Specifications
Payment Terms :
T/T,D/P,Alipay
Product structure :
R/A
Frequency range :
DC-6GHZ
Model Number :
SMA-JWB3
Cable type :
RG402/141
MOQ :
10 pcs
Delivery Time :
5-8 Days
Installation method :
Welding
Brand Name :
ZSX
Packaging Details :
Carton packaging
Body material :
Gold plated brass
Place of Origin :
China
Price :
$0.60--$0.79 (Depending on the quantity )
Gender :
Male
Certification :
ISO9001
Supply Ability :
1000000Pcs/Year
Name :
RF Connector SMA-JWB3
Description
SMA-JWB3 DC-6GHz SMA Male R/A Soldering Type RF Connector For RG141/SFT50-3 Cable

Radio Frequency Connector (RF connector for short) is a separable electronic component that is installed on cables or equipment for the transmission of radio frequency signals. It is often used in electromagnetic wave signal transmission scenarios ranging from 3kHz to 300GHz. It plays a key role in multiple fields such as communication and aerospace. SMA series of RF coaxial connectors feature small size, wide frequency band, superior mechanical performance and high reliability. They are one of the most widely used RF coaxial connectors. Ultra-small connectors like MMCX and SMP are constantly evolving, capable of meeting the blind insertion requirements of high-density devices while reducing the space occupied by the equipment, which is in line with the development direction of miniaturization of electronic devices.

Product Performance Details

Product model SMA-JWB3 Product structure Right Angel
Characteristic impedance 50 ohm Durability ≥500cycles
Frequency range DC-6GHz Body Gold plated brass
Contact resistance

Center Contact ≤3mΩ

 Contact resistance Outer Contact ≤2.5mΩ
Voltage standing wave ratio ≤1.3 Insulator PTFE
Dielectric withstand voltage ≥1000V RMS,50hz,at sea level Central conductor Gold plated brass
Working voltage ≤250V RMS,50hz,at sea level Connection sleeve Gold plated brass
Dielectric resistance ≥ 5000MΩ Temperature range -45℃~+125℃
Installation method Welding Cable type SFT50-3/RG402/141

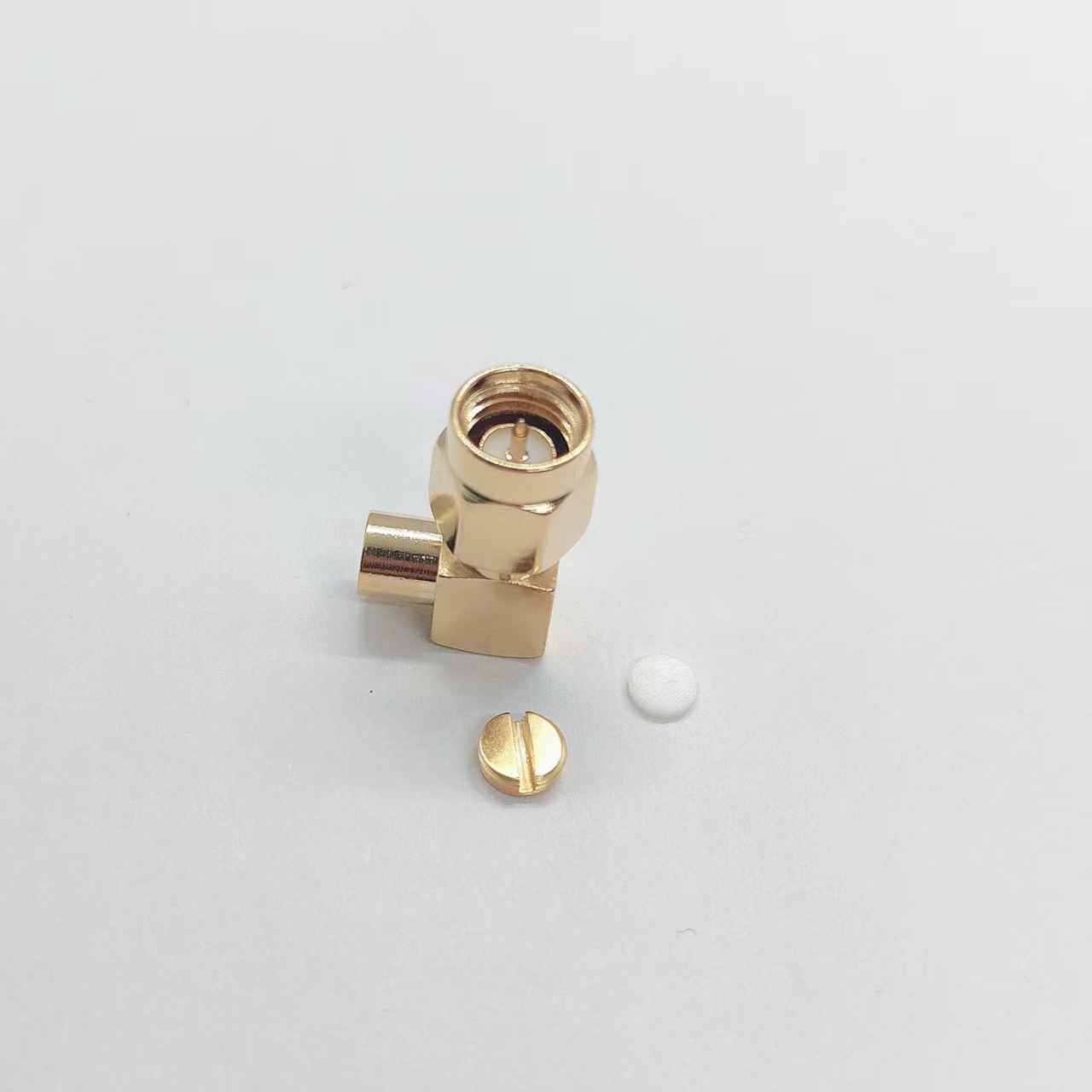

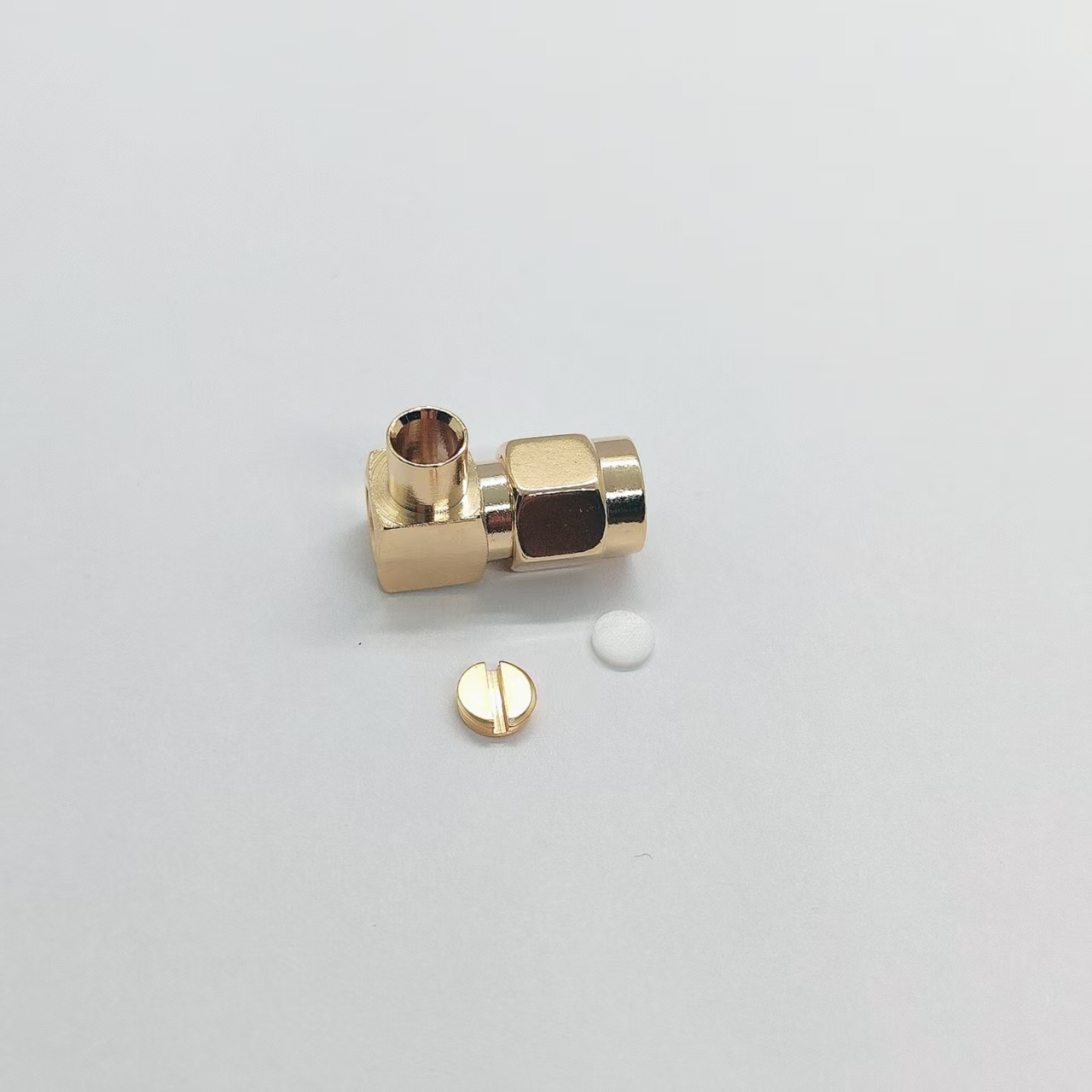

Product Show

SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications

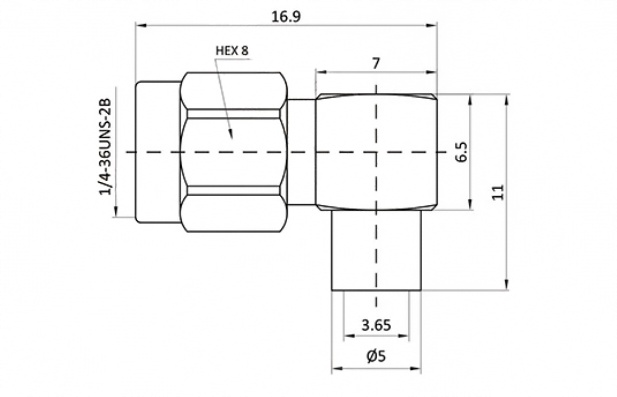

External dimensions of the product

SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications

Related Product Recommendation

SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications

Production Plant Area

Machining production workshop

SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications

Precision Assembly Production Workshop

SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications

Obtained Certification Certificate

SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications

Customer visit

SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications

Product Packaging

SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications

Packaging And Shipping

SMA-JWB3 DC-6GHz Gold Plated Brass Right Angle SMA Connector for RF Coaxial Applications
  • Standard export carton
  • As per customized specifications such as logo or others
  • According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders(based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
