Specifications
Supply Ability :
1000000Pcs/Year
Name :
Y11 Series Connector
Model Number :
Y11P*II-1419TK5
MOQ :
10 pcs
Delivery Time :
5-8 Days
Withstand voltage :
1500V
Payment Terms :
T/T,D/P,Alipay
Gender :
Male
Working temperature :
-55℃~+125℃
Price :
$16.10-$19.30 (Depending on the quantity)
Boday Material :
Aluminum alloy
Insulator material :
Thermosetting plastics
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
Carton packaging
Brand Name :
ZSX
Description
Y11P*II-1419TK5 Small Circular Connector 19 Pin Male Plug Sealed Bayonet Aerospace Electrical Connector

Y11P*II-1419TK5 is a complete II-type enhanced sealed bayonet circular aviation connector kit equipped with 14# shell and 19 positions of 0.059in (1.5mm) thick gold-plated contacts; its high-strength nickel-plated aluminum alloy shell delivers reliable EMI shielding, dustproof and anti-salt spray performance within -55℃~+125℃ wide temperature range, featuring quick bayonet locking for vibration-resistant stable connection, low contact resistance and long service life, widely used for precise signal and low-power interconnection in aerospace, vehicle, industrial automation.



Product display
Product Performance Details
Product model Y11P*II-1419TK5 Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥3000MΩ
Vibration 10Hz~2000Hz 196m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500Vrms
Working temperature -55℃ ~ +125℃ Working Current 5A

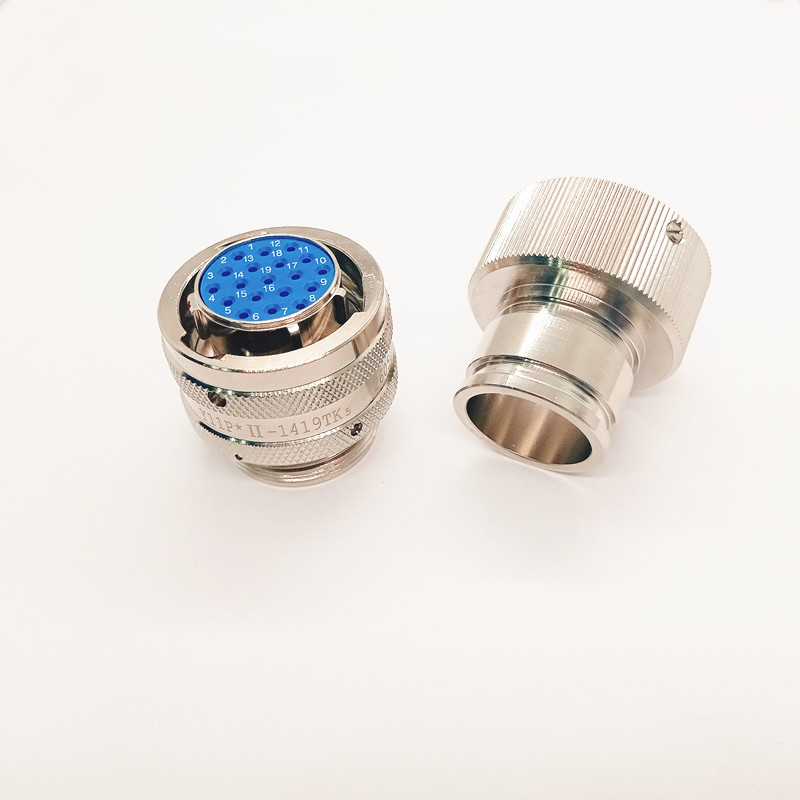

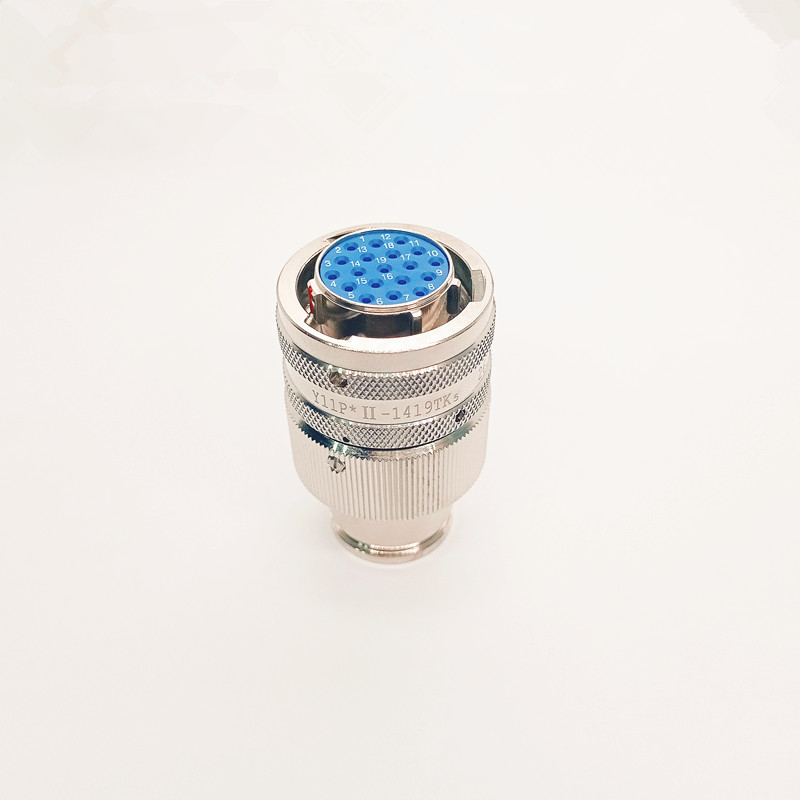

Physical product display
Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications
Product external dimensions
Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications

Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications


Related product recommendations
Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications
Display of Strength
Production Plant Area
Machining production workshop
Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications
Precision Assembly Production Workshop
Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications
Glass-to-metal sealed production workshop
Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications
Obtained Certification Certificate
Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications
Customer visit
Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications
Product packaging
Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications
Packaging and Shipping
Y11P*II-1419TK5 19 Pin Male Plug Circular Connector with 1500V Withstand Voltage and Bayonet Locking for Aerospace Applications
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
