Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Specifications
Supply Ability :
1000000Pcs/Year
Name :
Y11 Series Connector
Model Number :
Y11P*-1832TJ5
Payment Terms :
T/T,D/P,Alipay
Gender :
Male
Working temperature :
-55℃~+125℃
Price :
$17.60-$23.60 (Depending on the quantity)
Boday Material :
Aluminum alloy
Insulator material :
Thermosetting plastics
MOQ :
10 pcs
Delivery Time :
5-8 Days
Withstand voltage :
1500V
Brand Name :
ZSX
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
Carton packaging
Description
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ Male Plug Connector

Y11P*-1832TJ5 is a 32 pin shielded circular plug under Y11 series, compliant with GJB101A standard. Adopts inner bayonet quick lock, solder gold-plated contacts, nickel-plated aluminum alloy shield shell. Compact high-density layout, dustproof & waterproof, stable anti-interference performance for harsh environment signal transmission.



Product display
Product Performance Details
Product model Y11P*-1832TJ5 Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥3000MΩ
Vibration 10Hz~2000Hz 196m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500Vrms
Working temperature -55℃ ~ +125℃ Working Current 5A

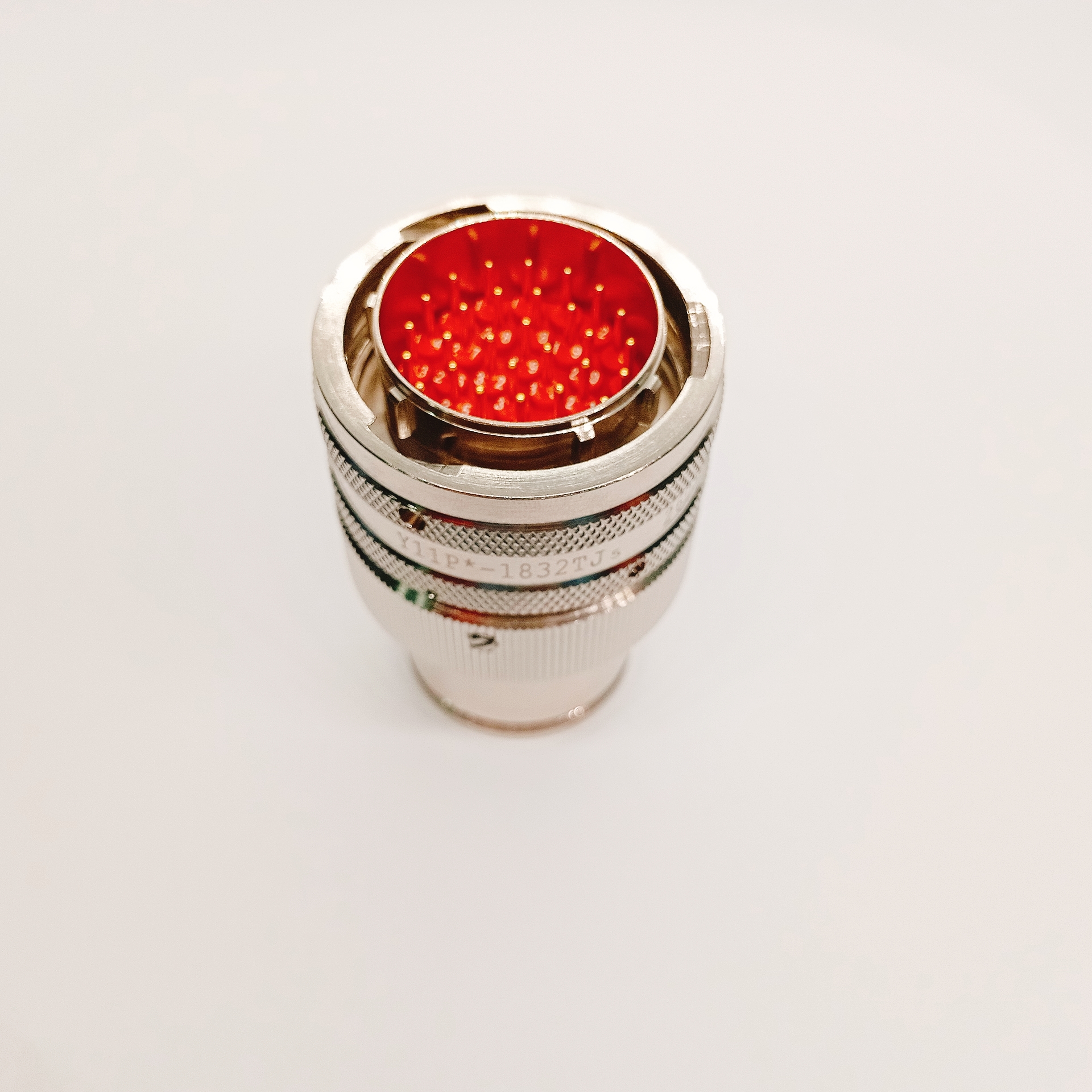

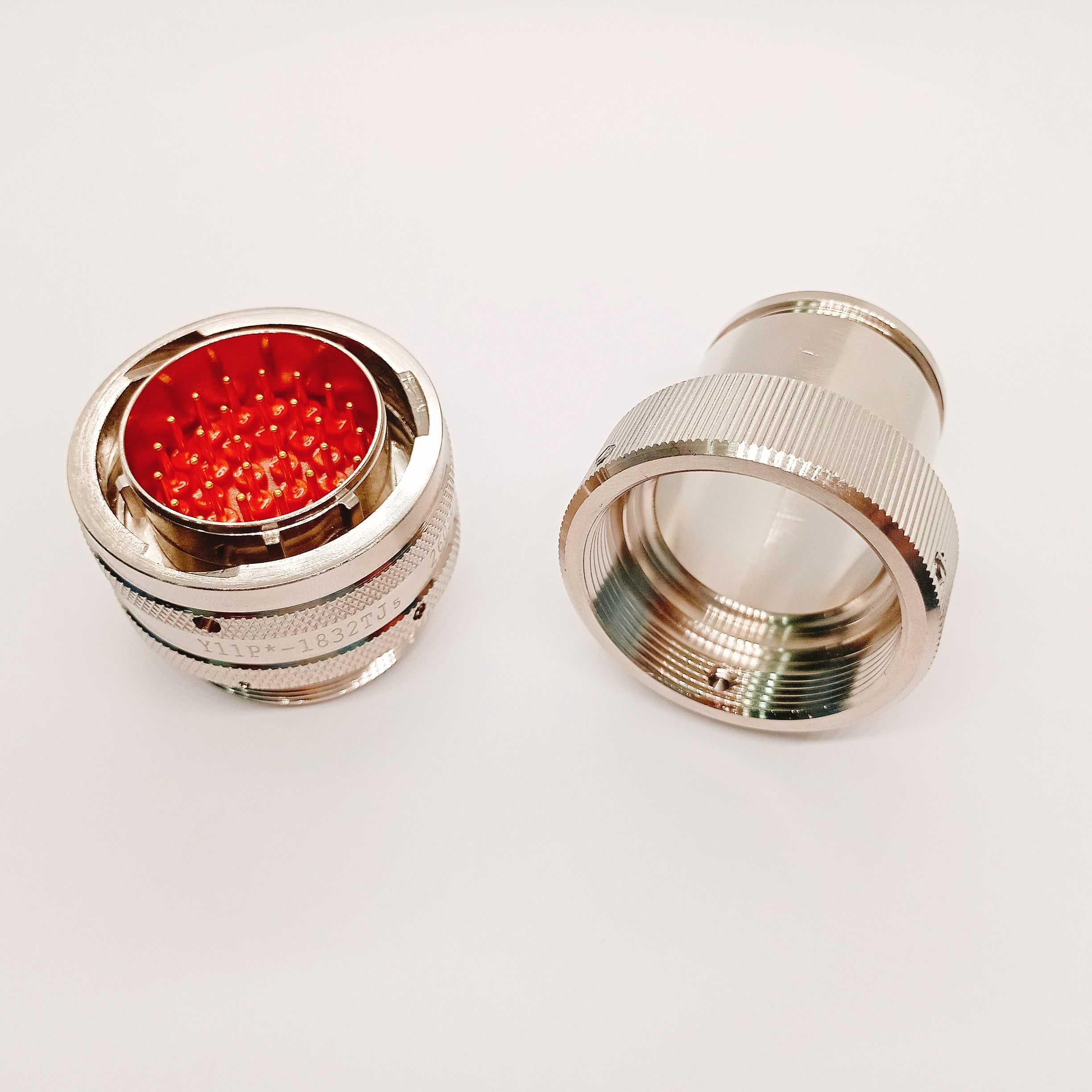

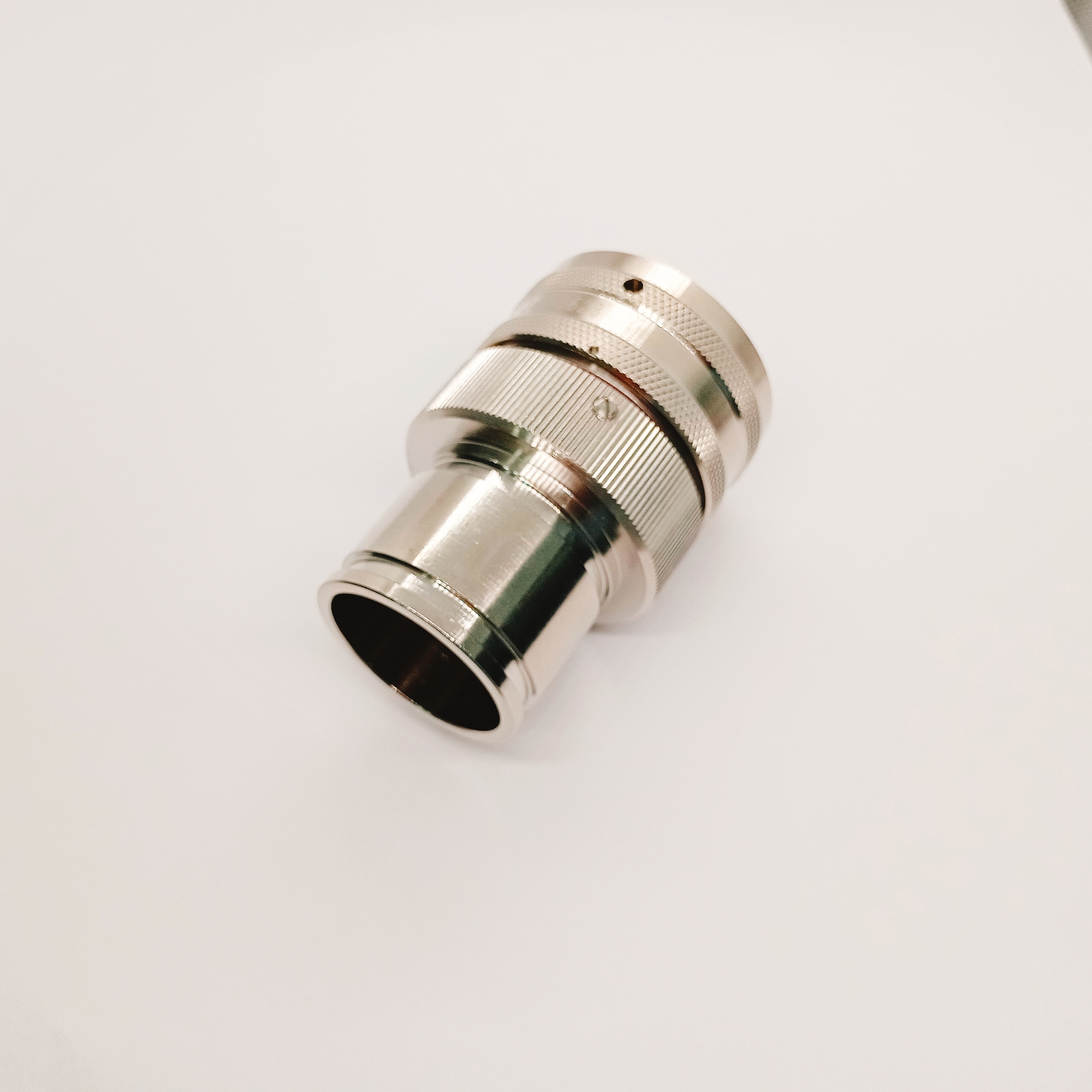

Physical product display
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Product external dimensions


Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector

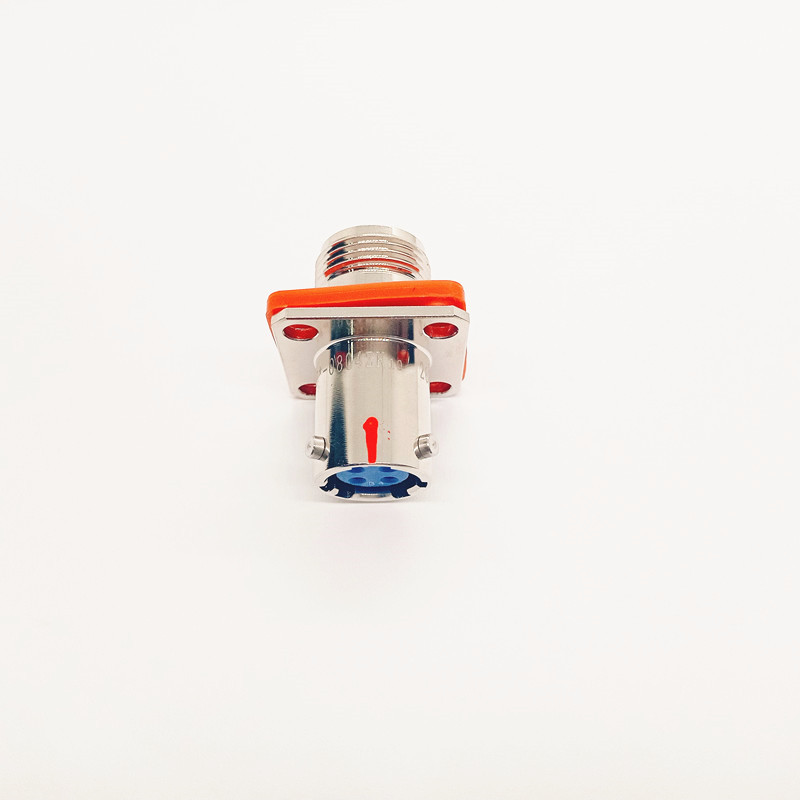

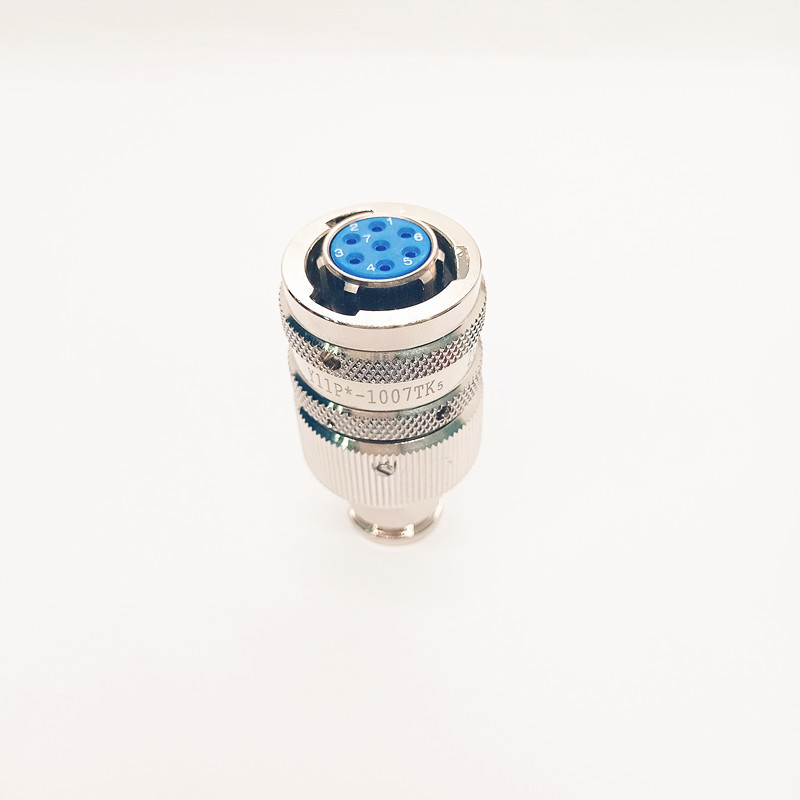

Related product recommendations
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Display of Strength
Production Plant Area
Machining production workshop
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Precision Assembly Production Workshop
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Glass-to-metal sealed production workshop
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Obtained Certification Certificate
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Customer visit
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Product packaging
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
Packaging and Shipping
Bayonet Circular Aviation Plug 32 Pin Shielded Connector Y11P*-1832TJ5 Male Plug Connector
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
