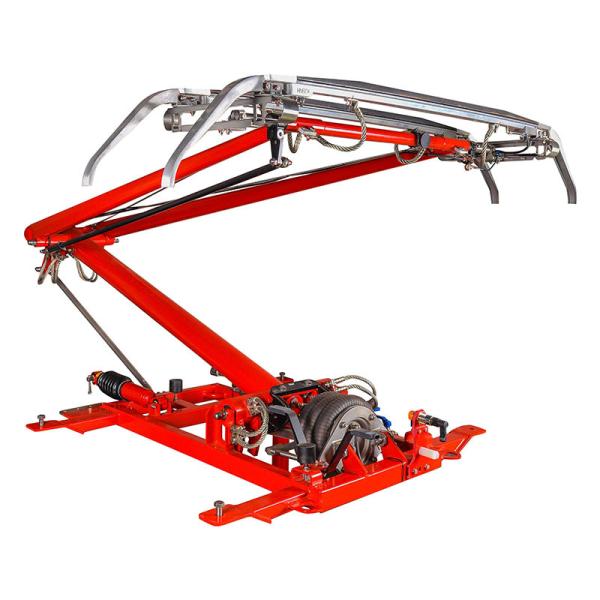

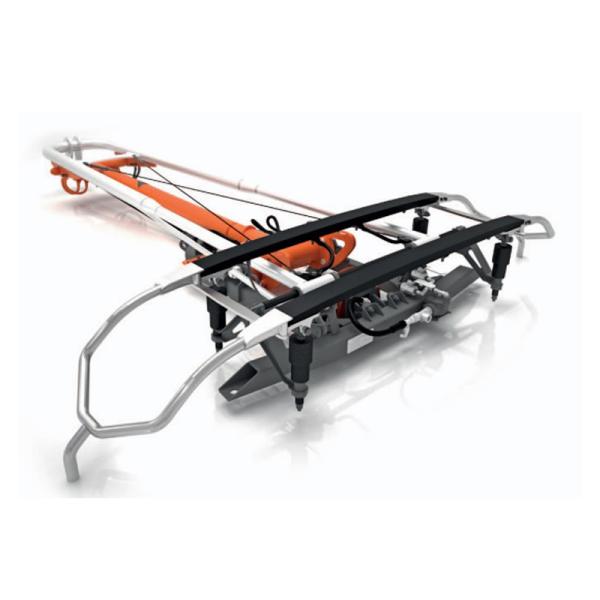

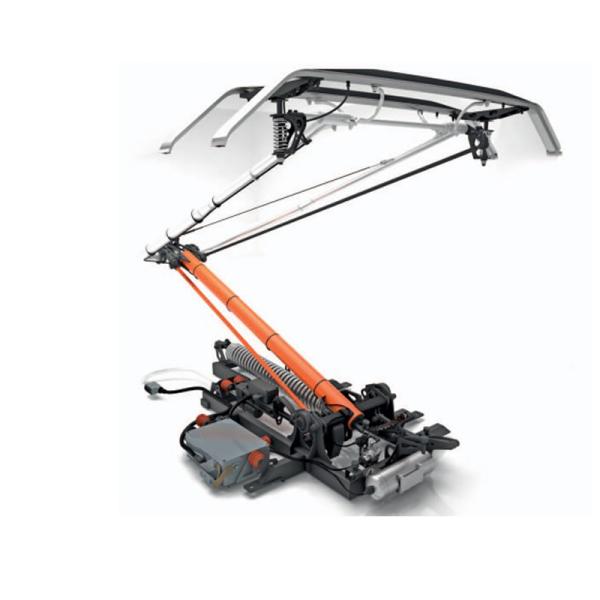

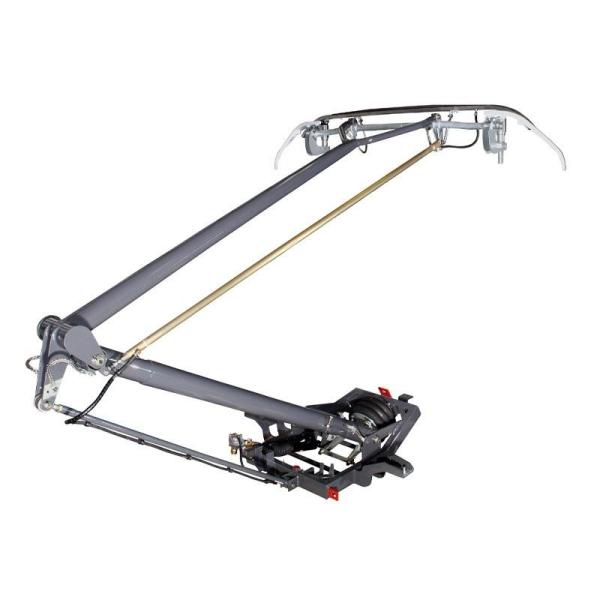

Single Arm Pantograph for Electric Locomotives - 1500 VDC, 1050 A
Single Arm Pantograph for Electric Locomotives - 1500 VDC, 1050 A
Single Arm Pantograph for Electric Locomotives - 1500 VDC, 1050 A
Single Arm Pantograph for Electric Locomotives - 1500 VDC, 1050 A
Single Arm Pantograph for Electric Locomotives - 1500 VDC, 1050 A
Single Arm Pantograph for Electric Locomotives - 1500 VDC, 1050 A
Single Arm Pantograph for Electric Locomotives - 1500 VDC, 1050 A
Single Arm Pantograph for Electric Locomotives - 1500 VDC, 1050 A
Specifications
Brand Name :
HTR
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Temperature :
-35℃～+65℃
Speed :
120 km/h
Nominal System Voltage :
1500 VDC
Operational Current :
1050 A
Max Operational Current（30s） :
Max 1600 A
Static Current :
Max 460 A
Rising / Lowering Time :
≤10 s
Maximum Working Height :
2800mm (with insulators)
Description
Product Description

As a key current collection device for electric locomotives and EMUs, the single-arm pantograph maintains continuous sliding contact with the overhead catenary wire through the carbon strip, transmitting 25kV (or other voltage levels) of high-voltage electrical energy to the train's traction system, while also accommodating dynamic displacement and vibrations during high-speed operation.

· Our objective was to design and manufacture a simple, light weight, and easy to maintain Pantograph.

· We further wanted to achieve the optimum in catenary contact behavior, even under the most basic and adverse overhead wire conditions, and combine with it a maximum of operating safety.


Product Feature

· Low weight:Reduces the overall load on the vehicle roof, improves energy efficiency.

· Simple construction:Reducing the risk of mechanical failure and simplifying assembly, disassembly, and training for maintenance personnel.

· Minimum maintenance: Requires very little upkeep over its service life, lowering operational costs and downtime.

· Excellent contact behavior: Even under basic catenary conditions.


Specification

Product Performance

Reference Value

Product Name

Pantograph

Temperature

-35℃～+65℃

Speed

120 km/h

Nominal System Voltage

1500 VDC

Operational Current

1050 A

Max Operational Current(30s)

Max 1600 A

Static Current

Max 460 A

Rising / Lowering Time

≤10 s

Maximum Working Height

2800mm (with insulators)
