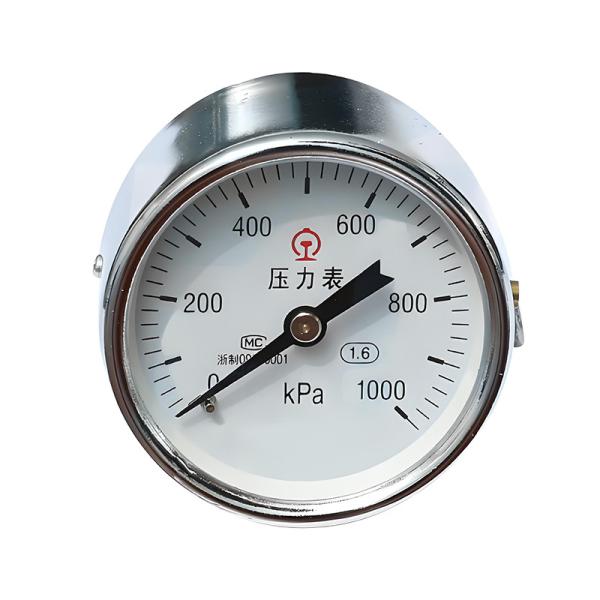

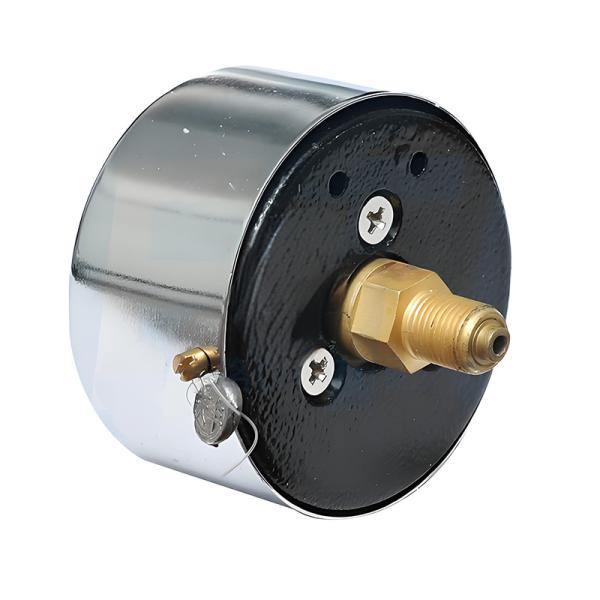

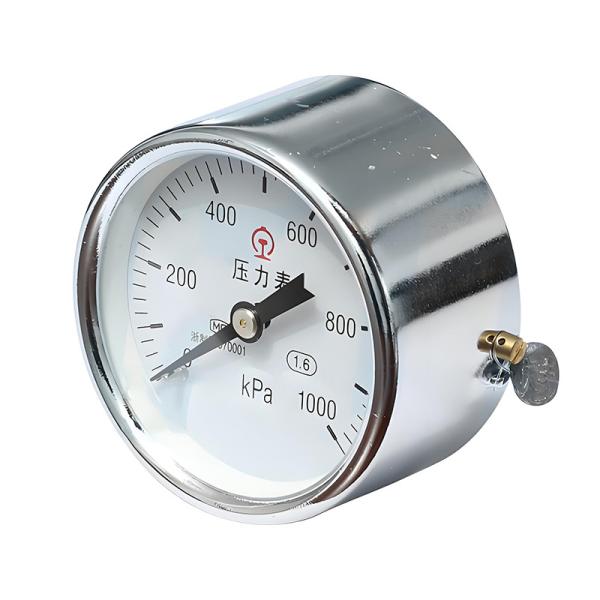

Railway Vehicle Locomotive Instrumentation H60Z Single Needle Pressure Gauge
Railway Vehicle Locomotive Instrumentation H60Z Single Needle Pressure Gauge
Railway Vehicle Locomotive Instrumentation H60Z Single Needle Pressure Gauge
Railway Vehicle Locomotive Instrumentation H60Z Single Needle Pressure Gauge
Railway Vehicle Locomotive Instrumentation H60Z Single Needle Pressure Gauge
Railway Vehicle Locomotive Instrumentation H60Z Single Needle Pressure Gauge
Specifications
Brand Name :
HTR
Model Number :
H60Z
Place of Origin :
China
MOQ :
10pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Measuring Range :
0 ~ 1000 kPa, 0 ~ 1200 kPa, 0 ~ 1600 kPa
Accuracy Class :
Class 1.6
Operating Temperature :
-40°C to +70°C, with relative humidity not exceeding 95%
Temperature Influence :
When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C
Illumination Voltage :
DC 24V ±30% / DC 110V ±30%
Insulation Voltage :
≥ AC 500V (1 minute, no breakdown)
Dielectric Strength :
≥ AC 1500V / 50Hz (1 minute, no flashover or breakdown)
Description

Products Description

The single-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its operating principle is based on the deformation of a Bourdon tube under the action of the medium's pressure. This deformation is transmitted and amplified through a mechanical linkage, driving the pointer to deflect across the dial scale and thereby indicating the measured pressure value.


Specification

Item

Specification

Measuring Range

0 ~ 1000 kPa, 0 ~ 1200 kPa, 0 ~ 1600 kPa

Accuracy Class

Class 1.6

Operating Temperature

-40°C to +70°C, with relative humidity not exceeding 95%

Temperature Influence

When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C

Illumination Voltage

DC 24V ±30% / DC 110V ±30%

Insulation Voltage

≥ AC 500V (1 minute, no breakdown)

Dielectric Strength

≥ AC 1500V / 50Hz (1 minute, no flashover or breakdown)

Standard Compliance

The pressure gauge complies with GB/T 1226-2010 [General Pressure Gauge Standard]
