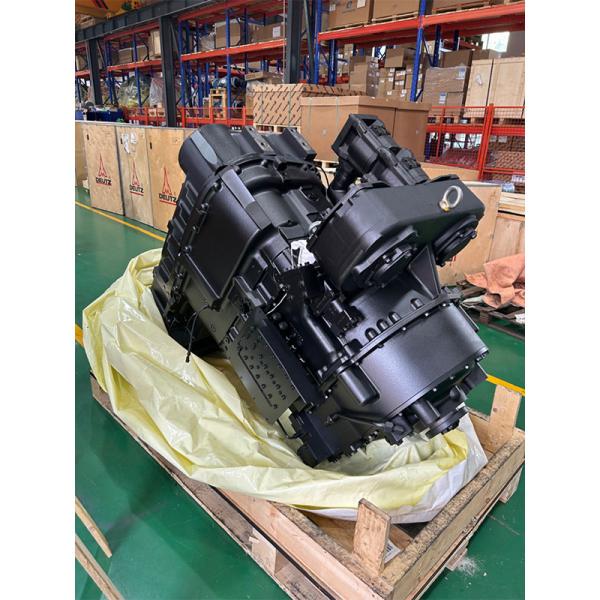

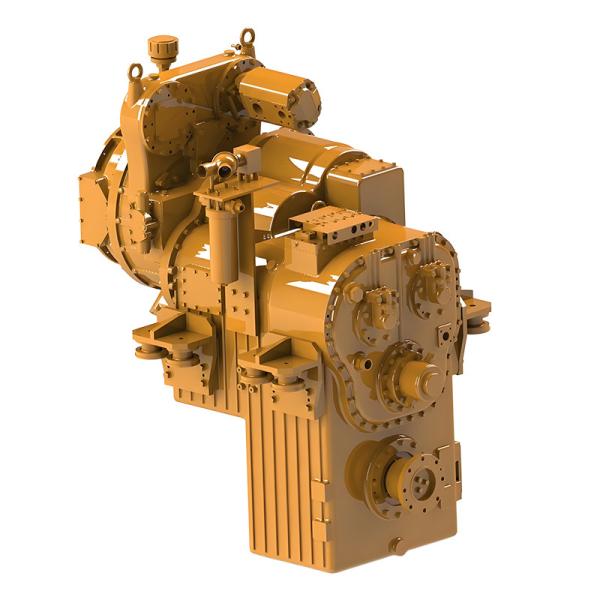

C450HRC50420 Electro Hydrodynamic Transmission Retarder
C450HRC50420 Electro Hydrodynamic Transmission Retarder
C450HRC50420 Electro Hydrodynamic Transmission Retarder
C450HRC50420 Electro Hydrodynamic Transmission Retarder
Specifications
Brand Name :
HTR
Model Number :
C450HRC50420
Place of Origin :
China
MOQ :
10pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Type :
Hydrodynamic Transmission
Dimensions :
1228*766*1416 mm
Structure Type :
Fixed-axis Type, Front and Rear Output
Control Type :
Electro-hydraulic Control (Voltage 24V)
Total Mechanical Transmission Efficiency :
0.92
Shifting Pressure :
15~18 Bar
Oil Level Indicator (Low Level) :
60 L
Oil Level Indicator (High Level) :
80 L
Initial Reference Oil Filling Volume :
90 L
Weight :
Approx. 2100 kg (Dry)
Description

Products Description

A hydrodynamic retarder is integrated in the transmission. Retarder, also known as a hydraulic deceleration device, uses liquid damping to produce a braking effect. It is used in vehicles during long downslopes.


Specification

Structure Type
Fixed-axis Type, Front and Rear Output
Control Type
Electro-hydraulic Control (voltage 24V)
Total Mechanical Transmission Efficiency
0.92
Shifting Pressure
15~18 Bar
Oil Level Indicator (Low Level)
60 L
Oil Level Indicator (High Level)
80 L
Initial Reference Oil Filling Volume
90 L (Can be adjusted according to the arrangement of oil pipes and cooler capacity)
Outline Dimensions
1228*766*1416 mm
Weight
Approx. 2100 KG (Dry)

Main Parameters

1) Effective diameter of circulation circle: D = 450mm
2) Maximum torque ratio: K₀ = 2.51
3) Maximum efficiency: ηₘₐₓ ≥ 0.875
4) Allowed Maximum Input Speed/Power/Torque: 2100 rpm / 600 kW / 5000 N.m
5) Power Take-Off (PTO) for Hydraulic System Pump Installation:
Number of PTO
2
Allowed Speed/Torque (Per PTO)
2800rpm /1500N.m
Drive Ratio
1.102:1 (Decreasing speed)
Rotation Direction (Towards the Pump Installation Port On The Torque Converter)
Left Hand Pump (Counter-clockwise)
Interface
SAEC Installation Flange, 14 Teeth, Diametral Pitch 12/24, 6-M12 Thread
6) Oil pump of transmission
Installed Position
Two PTO Ports for Self Use
Displacement
100/63ml/r, Duplex Pump
Allowed Speed
2800rpm
Working Conditions
Allow Continuous Operation at 120℃ Oil Temperature
