Yb310 Hydrodynamic Transmission for Engineering Vehicles
Yb310 Hydrodynamic Transmission for Engineering Vehicles
Yb310 Hydrodynamic Transmission for Engineering Vehicles
Yb310 Hydrodynamic Transmission for Engineering Vehicles
Yb310 Hydrodynamic Transmission for Engineering Vehicles
Yb310 Hydrodynamic Transmission for Engineering Vehicles
Specifications
Brand Name :
HTR
Model Number :
YJ480FK；RC60442
Place of Origin :
China
MOQ :
10pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Product Name :
Yb310 Hydrodynamic Transmission
Maximum Engine Speed :
2500 R/Min
Maximum Engine Power :
310 Kw
Maximum Input Torque :
2950 N·m
Description

Products Description

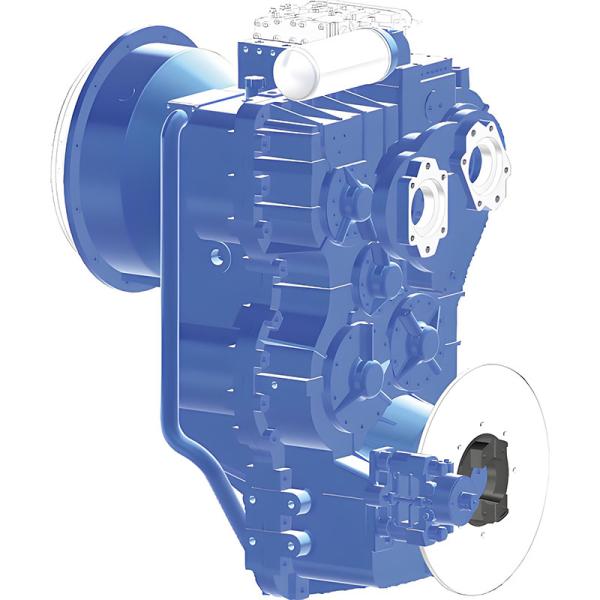

1. The YB310 hydrodynamic transmission is a fixed-shaft, multi-speed hydrodynamic transmission with integrated torque converter and gearbox

2. It features electro-hydrodynamic control and offers an optional lock-up function
3. The YB310 is widely used in engineering vehicles such as motor graders, loaders,tractors, and scrapers


Specification

Parameters
Product Performance Reference Value
Maximum Engine Power 310 kW
Maximum Engine Speed 2500 r/min
Maximum Input Torque 2950 N·m
Gear Configurations 6 forward / 3 reverse, 4 forward / 3 reverse, 3
forward / 3 reverse
Shifting Modes Electro-hydrodynamic control, mechanical hydrodynamic control, or integrated manual automatic (electro-hydrodynamic proportional control)
Input Type Torque converter can be directly connected to the flywheel, or via mechanical flange and YB310 Hydrodynamic Transmission universal joint connection
Output Type Flange, dual output
Torque converter 375 torque converter
Power Take-off (PTO) PTO1 gear ratio -1, PTO2 gear ratio -1
Optional DB310 (without torque converter), with options for electro-hydrodynamic control or mechanical-hydrodynamic control
